Moving the Equipment
Modifications
10-2
Centillion 1200N ATM Switch User Manual
NTP 297-8103-903
When carrying the main unit, be sure to securely hold the bottom of the main unit
as shown in

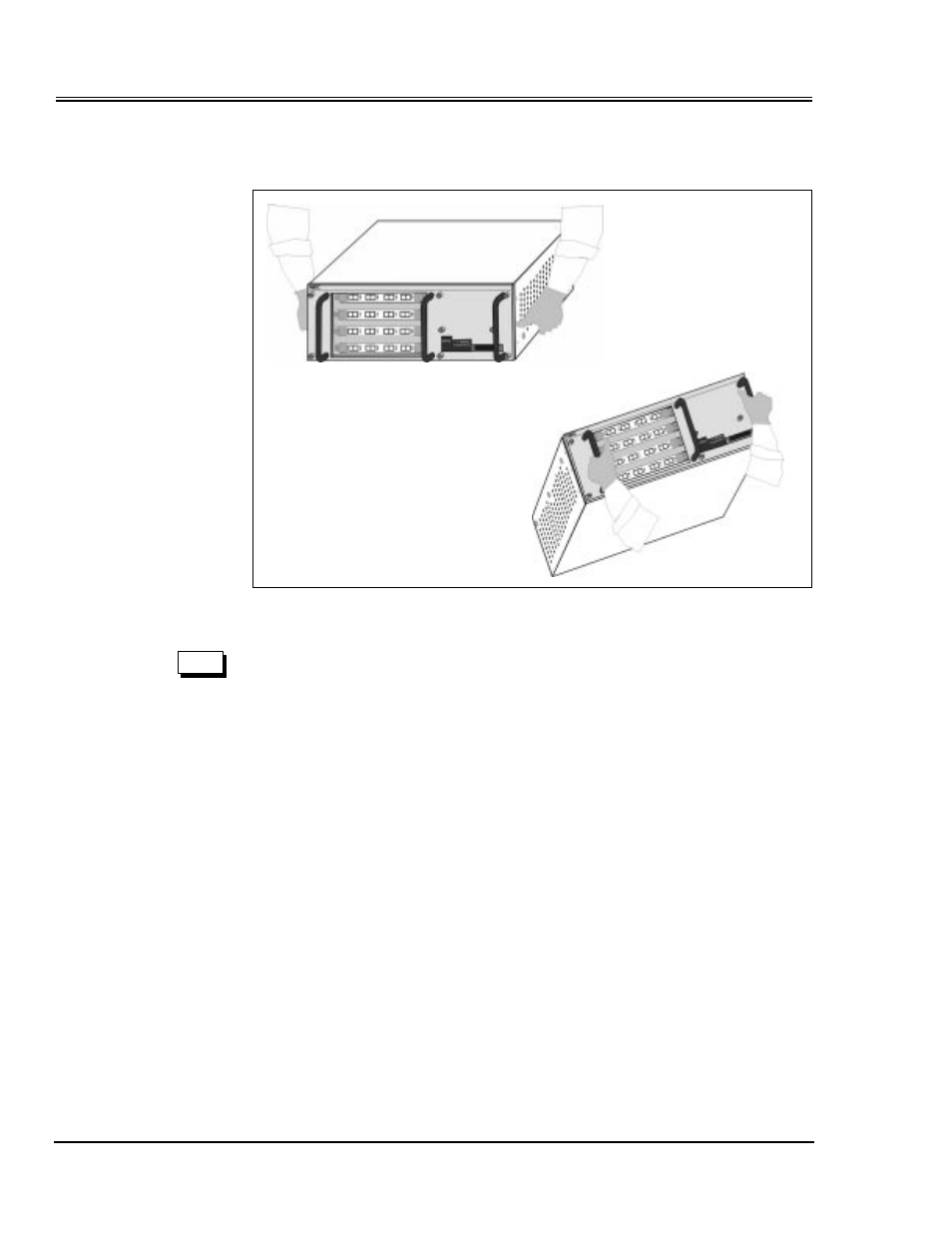

Figure 10-1: Carrying the ATM Switch
Be sure to hold the specified positions. Holding positions other than the specified
positions may cause a failure.
4.
Connect the power cable and the communication cable. Refer to
5.
Connect the MAT to ATM Switch with RS-232C cable. Refer to
6.
Turn on the MAT's power switch and set the communication parameters. Refer
to
.
7.
Turn on the ATM Switch's power switch. Check the messages displayed on the
MAT screen to make sure that the move did not cause a problem with the ATM
Switch. Refer to
"ATM Switch Alarms" on page 7-18
.
8.
Enter the alarm message display command from the MAT to make sure that
there is no hardware error. Refer to
"ATM Switch Alarms" on page 7-18
.
