Removing a line card, Removing a line card -11 – Panasonic 1200N User Manual
Page 127
Modifications
Line Card Installation
Centillion 1200N ATM Switch User Manual
10-11
NTP 297-8103-903
Removing a Line
Card
1.
Remove the communication cable.
2.
Remove the screws to the left and right sides of the ejectors.
3.
Draw the ejectors outward to open position.

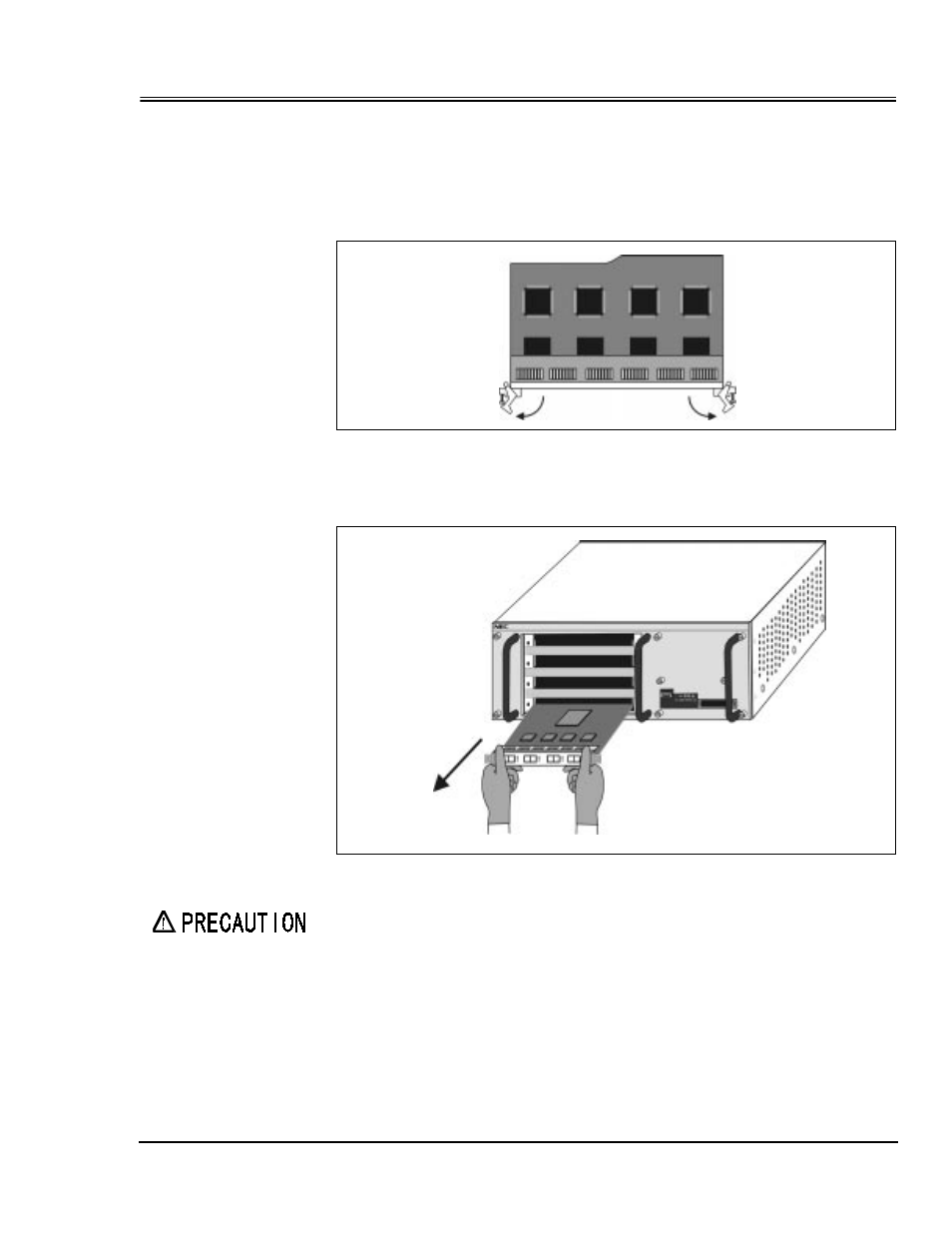

Figure 10-13: Line Card Ejectors - Open Position
4.
Hold the line card with both hands and remove it slowly.
Figure 10-14: Removing the Line Card
Be sure to allow at least 3 seconds of interval when repeating line card
removal or insertion. Failure may result if an adequate interval is not given.
