COMMUNICATOR REPORTING OPTIONS
REPORTING FORMAT
✦ The factory setting causes the communicator
to report using the 4 BY 2 FORMAT. This format
allows four-digit account numbers from 0000 to
9999 and provides two-digit alarm codes.
STEP #105 ADEMCO CONTACT ID can be chosen as a
reporting format using this step. This format
allows 4-digit account numbers from 0000 to
9999 and provides verbose report descriptions
with Ademco Contact ID compatible Central
Stations.
CALL ROUTING
✦ The communicator can be programmed with
three telephone numbers; primary, secondary,
and supervisory.
✦ The factory setting for the communicator is to
route all calls to the primary telephone number. If
communication is unsuccessful after fi ve attempts
to the primary number, the secondary number
will be dialed for an additional fi ve attempts. If
the secondary number cannot be reached, the
communicator will “sleep” for fi ve minutes before
starting the call process over again. A total of four
sleep cycles (50 call attempts) can occur before
the communicator stops calling.
STEP #86 The communicator can be programmed to report
supervisory events (low battery, trouble, AC
failure, etc.) to the supervisory telephone number
instead of the primary or secondary telephone
numbers using this step.

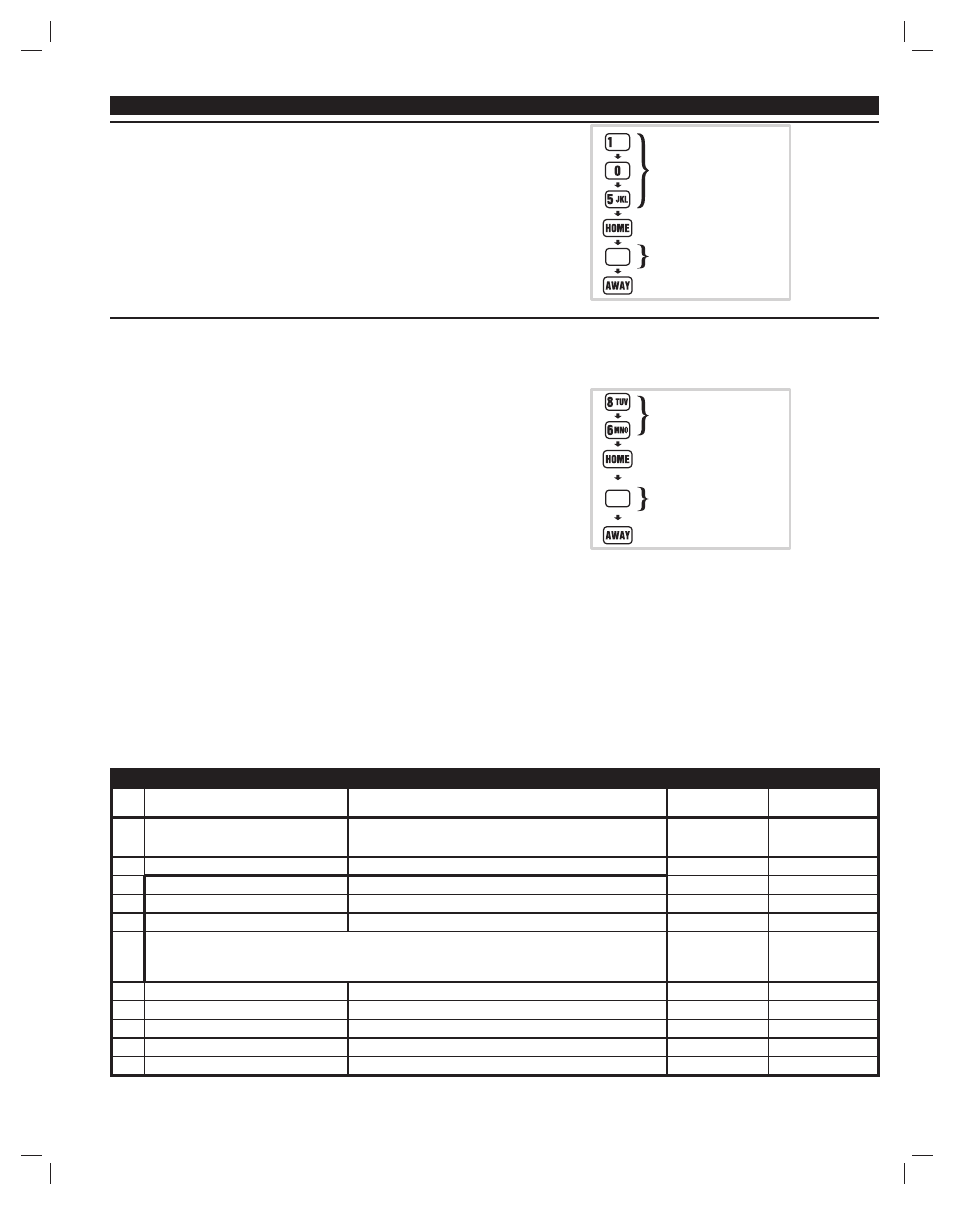

PROGRAMMING STEP #105
ENTERS STEP NUMBER
0 FOR 4 BY 2
1 FOR ADEMCO CONTACT ID
STORES VALUE - 1 BING
PROGRAMMING STEP #86
ENTERS STEP NUMBER
0 FOR ALL CALLS TO
PRIMARY/SECONDARY
1 FOR ALARMS ONLY TO
PRIMARY/SECONDARY
STORES VALUE - 1 BING
Communicator Reporting Option Table
✎ CAUTION: If the page alert user code feature
is going to be used, the supervisory number is
reserved for the pager number. DO NOT SET THE
CALL ROUTING OPTION TO “1”.
✎ NOTE: To disable supervisory reports, set call
routing option to “1” and remove the supervisory
telephone number.
✎ NOTE: Do not program the primary and secondary
telephone numbers the same. See the FCC
Telephone Rules and Regulations on the rear
cover of this manual.
COMMUNICATOR REPORTING OPTIONS
STEP
#
PROGRAMMING
FUNCTION
POSSIBLE
VALUES
FACTORY
VALUE
INSTALLATION
VALUE
86
CALL ROUTING
0 = ALL CALLS TO PRIMARY OR SECONDARY NUMBER
1 = ALL ALARM CALLS TO PRIMARY OR SECONDARY NUMBER AND ALL
OTHERS TO SUPERVISORY NUMBER
0
88
ACCOUNT NUMBER
4 DIGITS
EMPTY
89
PRIMARY PHONE NUMBER
UP TO 20 DIGITS
EMPTY
90
SECONDARY PHONE NUMBER
UP TO 20 DIGITS
EMPTY
91
SUPERVISORY/PAGER PHONE NUMBER
UP TO 20 DIGITS
EMPTY
PRESSING THE (A) KEY INSERTS A 1-SECOND DELAY
THE [FIRE] KEY INSERTS A 5-SECOND DELAY
FOR ALL PHONE NUMBERS
⇒ ⇒ ⇒ THE [CHIME] KEY INSERTS A “
*
”
THE (A) KEY INSERTS A “#” IF IT IS THE LAST DIGIT OF THE PHONE NUMBER
105
REPORTING FORMAT
0 = 4 BY 2; 1 = ADEMCO
0
108
REPORT SYSTEM TROUBLE
0 = NO; 1 = YES
0
110
REPORT FORCE ARMING
0 = NO; 1 = YES
0
111
OPEN/CLOSE
0 = NO; 1 = YES; 2 = MASTER PAC ONLY
0
113
POINT ID REPORTING FOR 4 BY 2 FORMAT
0 = NO; 1 = YES
1
