9

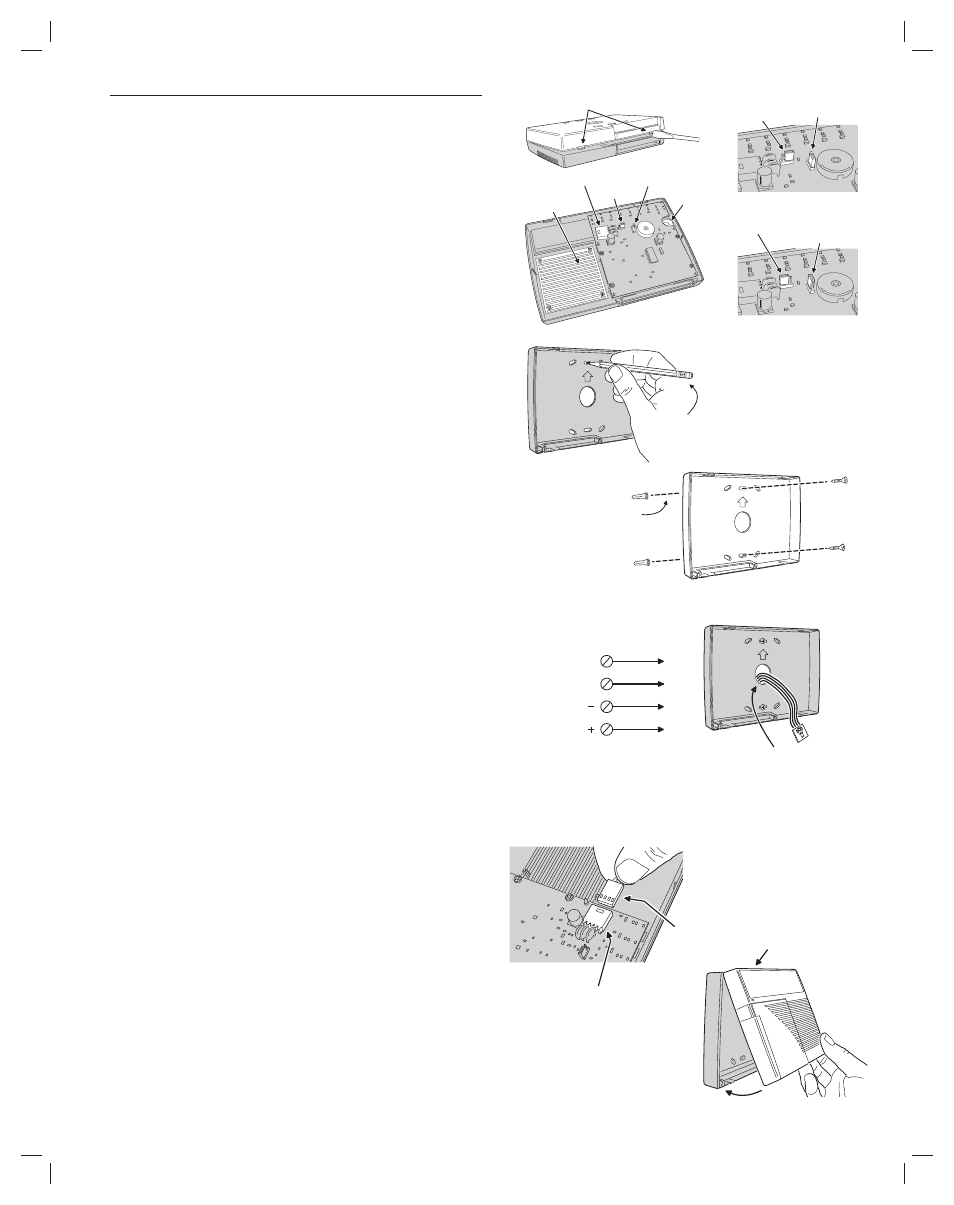

HARDWIRED KEYPAD INSTALLATION

✦ One or two Model DUAL 824KP keypads can be

used with the DUAL 824P Control Panel (one
keypad is included in the DUAL 824 system
package).

✦ The keypad is supplied with a short wiring

harness and connector.

1. Use a fl at blade screwdriver to open the keypad

case. Identify the keypad internal components.

2. Set the keypad select jumper to KEYPAD 1 if this

is the fi rst, or only, keypad installed. Set the
jumper to KEYPAD 2 if this is the second keypad
installed.

3. For a silent keypad, set the SOUNDER jumper to

OFF.

4. Select an indoor location with easy wiring access

to the Control Panel and use the keypad's
mounting plate as a template to mark the
mounting holes for the keypad.

5. Route 4-conductor 22 AWG (or larger) wire from

the Control Panel to the keypad(s). Up to 100
feet of wire total can be used with this system.
If installing two keypads, each keypad can be
“home-run” or “daisy-chained”.

Note: If a Model VB-2 voice response module is

going to be used with the system, in addition
to the keypad’s four wires, route 2-conductor
shielded cable and 2-conductor 22 AWG wire from
the Control Panel to the keypad(s) for the keypad’s
microphone and speaker. When using two keypads
and two microphones, each shielded microphone
cable must be home run to the VB-2 terminal block.

6. If using the VB-2 voice response module, refer

to the instructions supplied with the Model
RSM-2 speaker/microphone kit for details on
installing and wiring the keypad’s speaker and/or
microphone.

7. Connect the 4-conductor wire to the Control

Panel's keypad terminals, noting wire colors.

8. Noting wire colors, connect the keypad's wiring

harness to the wire from the Control Panel.

9. Plug the keypad wiring harness into the keypad

connector and snap the keypad case closed.

DEFAULT JUMPER POSITIONS

ALTERNATE JUMPER POSITIONS

TWIST SCREWDRIVER
IN SLOTS TO OPEN
THE KEYPAD CASE

RSM-2 KIT

SPEAKER

LOCATION

KEYPAD

CONNECTOR

SOUNDER

JUMPER

(ON OR OFF)

KEYPAD

SELECT

JUMPER

(KPD1 OR KPD2)

RSM-2 KIT

MICROPHONE

LOCATION

SOUNDER JUMPER

SET TO "ON"

KEYPAD SELECT

JUMPER SET

TO "KEYPAD 1"

SOUNDER JUMPER

CAN BE SET TO "OFF"

SET KEYPAD SELECT

JUMPER TO "KEYPAD 2"

IF THIS IS THE 2ND KEYPAD

COMPONENT

LOCATIONS

NOTE: MAXIMUM RECOMMENDED
WIRE RUN IS 100 FEET COMBINED
TOTAL FOR ALL KEYPADS

MOUNT KEYPAD INDOORS
AT A CONVENIENT HEIGHT
AND LOCATION FOR THE USERS

USE THE MOUNTING PLATE
AS A TEMPLATE TO MARK
SCREW LOCATIONS

USE SCREWS AND ANCHORS
OR APPROPRIATE FASTENERS
TO AFFIX MOUNTING PLATE

THE MOUNTING PLATE IS ALSO
DESIGNED TO BE ATTACHED
TO A SINGLE-GANG OUTLET BOX

DUAL 824P

CONTROL PANEL

TO

DUAL 824KP

KEYPAD

IF THE RSM-2 SPEAKER/MICROPHONE KIT IS
GOING TO BE USED, RUN AN ADDITIONAL PAIR
FOR THE SPEAKER AND A SHIELDED PAIR
FOR THE MICROPHONE

ROUTE WIRING
CONNECTOR THROUGH
MOUNTING PLATE HOLE

KPD DAT

KPD CLK

KPD

KPD

WHITE

ORANGE

BLACK

RED

ROUTE 4-CONDUCTOR 22 AWG WIRE OR LARGER
FROM CONTROL PANEL TO KEYPAD

WIRING
HARNESS
CONNECTOR

INSERT CONNECTOR INTO THE KEYED
SOCKET ON THE KEYPAD UNTIL IT
SNAPS TOGETHER

ALIGN TOP OF CASE FIRST,
THEN SNAP BOTTOM TOGETHER
