CONGRATULATIONS for selecting Linear's DUAL 824
Security System. The Model DUAL 824P Control Panel and
the Model DUAL 824KP Keypad incorporate many advanced
and sophisticated features. The system can be expanded
and customized to fi t the installation's specifi c needs.
The DUAL 824P Control Panel and its accessories are
designed and manufactured by the oldest wireless security
company in North America. You can look ahead to many
years of reliable service with this Control Panel and its
accessories.
Many insurance companies offer discounts on homeowners and
renters policies when a security system is installed. Discount
credits vary with different companies and generally increase in
savings with an increase in the level of protection. Inform the
user to ask their insurance agent about savings available.
The DUAL 824P Control Panel is UL Listed. For a UL smoke
alarm system, there must be at least one smoke detector
programmed into the Control Panel to meet National Fire
Protection Association (NFPA) Rule 72 Chapter 2 and UL
217 requirements. Many insurance companies require these
conditions to be met to qualify for a discount. Only use the
Model DXS-73 smoke detector with this Control Panel for a
UL smoke alarm system.
NOTE: Some cities and municipalities may require an
alarm system permit. Check with the local authorities
before installing this system.
In this manual, the bullets preceding the text help to defi ne
the information. For example:
✦ This symbol indicates a feature.
✴ This symbol is for lit indications or system
sounds.
✎ This symbol is for important notes.
CONTROL PANEL
MODEL DUAL 824P
KEYPAD
MODEL DUAL 824KP
DUAL 824 SYSTEM
UL Listed as a Single Station
Smoke Detector Accessory, also
suitable as a Household Burglar-
Alarm System Control Unit. UL
Category CCN UTGT & NBSX
RING
TIP
R1
T1

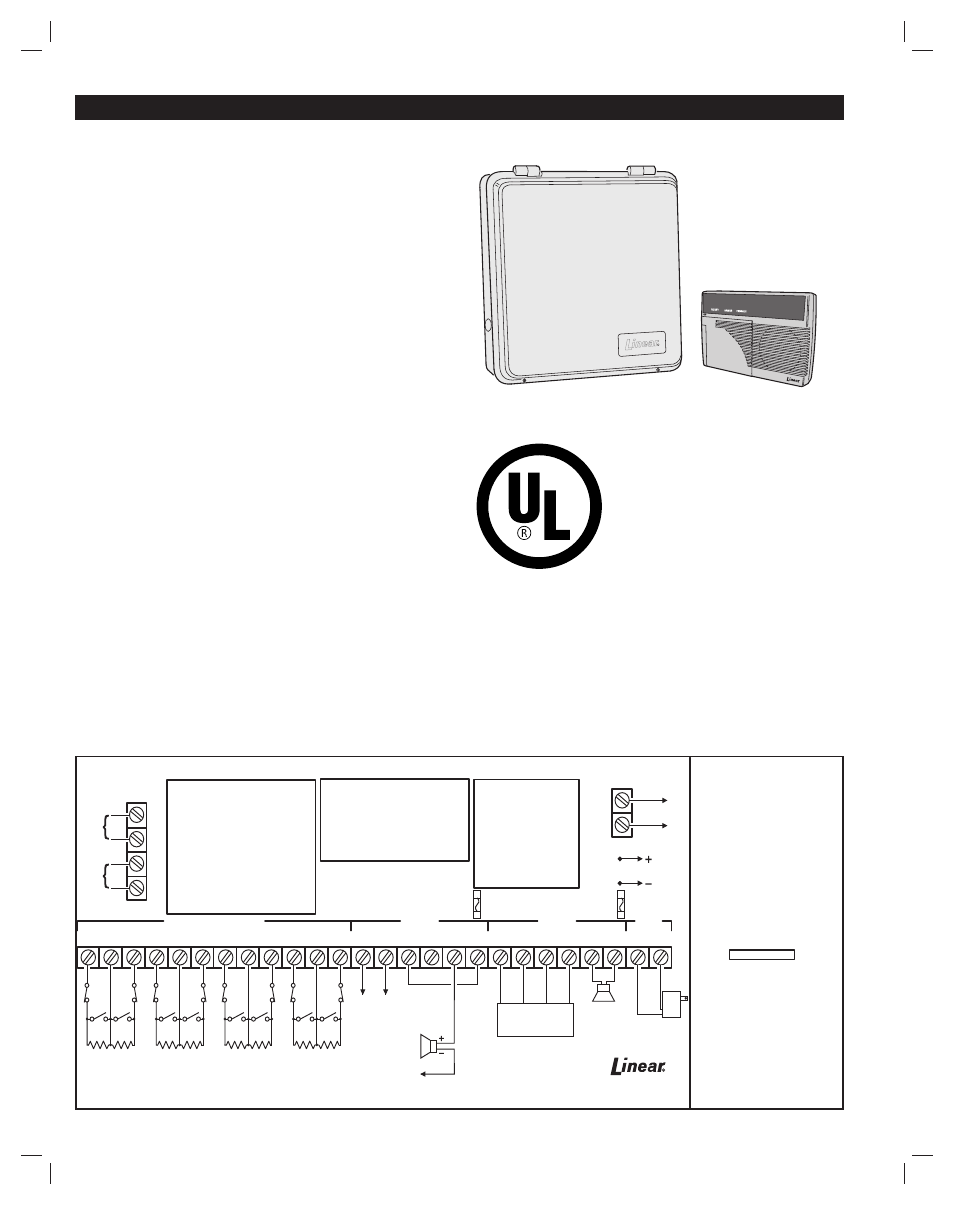

DUAL 824 WIRING DIAGRAM
WARNING:
Incoming
Phone Line
Local
Telephones
RED
GREEN
GRAY
BROWN
AUXILIARY FUSE
TYPE 2AG, 1 AMP
ANT
SHIELD
To internal antenna
wires or to Model LA-P
external antenna kit
RED (+)
BLACK (-)
CONNECT TO
12 VDC/4AH
GEL CELL
BATTERY
LOOP
1
COM LOOP
2
LOOP
3
COM LOOP
4
LOOP
5
COM LOOP
6
LOOP
7
COM LOOP
8
H/A
-
H/A
+
RLY
COM
RLY
N/C
RLY
N/O
+12
VDC
KPD
+
KPD
-
KPD
CLK KPD
DAT KPD
SPK+
KPD
SPK -
AC AC
HARDWIRED LOOP INPUTS OUTPUTS KEYPAD XFRMR
BATTERY FUSE
TYPE 2AG, 3 AMP
Battery wires
Charging voltage: 13.8 VDC
ANTENNA
BACKUP BATTERY
Normal battery
life should
exceed 3 years
TELEPHONE
Fire protection must follow NFPA Standard No. 72 (National
Fire Protection Association, Batterymarch Park, Quincy, MA
02269). Printed information describing proper installation,
operation, testing, maintenance, evacuation planning, and
repair service is to be provided with this equipment.
TRANSFORMER
16VAC, 1.25A
Connect to
24hr. 120VAC,
60 Hz Outlet
LOOP RESPONSE TIME: 400 mS MAXIMUM RECOMMENDED LOOP LENGTH: 500 FEET
AUTOMATION
OUTPUT
Current limited
switched
+12 VDC, 40 mA
voltage source
See instructions
for output options
ALARM RELAY
Rated 12 volts,
1 amp maximum
EXTERNAL SIREN
12 VDC at 1 Amp
maximum
To any COM terminal
RE
D
BLACK ORANGE WHIT
E
KEYPAD WIRING
4-conductor 22 AWG wire
Up to 100 feet for all keypads used allowed
DUAL 824KP
HARDWIRED KEYPAD
ONE OR TWO
UNITS ALLOWED
AUXILIARY
POWER
OUTPUT
12 VDC at 1 Amp
maximum
FOR INSTALLATION INSTRUCTIONS,
REFER TO THE MANUAL SUPPLIED
WITH THIS PRODUCT
N.C.
2.2k
E.O.L.
RESISTOR
LOOP 1
N.C.
2.2k
E.O.L.
RESISTOR
LOOP 2
N.O. N.O.
N.C.
2.2k
E.O.L.
RESISTOR
LOOP 3
N.C.
2.2k
E.O.L.
RESISTOR
LOOP 4
N.O. N.O.
N.C.
2.2k
E.O.L.
RESISTOR
LOOP 5
N.C.
2.2k
E.O.L.
RESISTOR
LOOP 6
N.O. N.O.
N.C.
2.2k
E.O.L.
RESISTOR
LOOP 7
N.C.
2.2k
E.O.L.
RESISTOR
LOOP 8
N.O. N.O.
CAUTION: IMPORTANT:
(760) 438-7000 • FAX (760) 438-7043
USA & Canada (800) 421-1587 & (800) 392-0123
Toll Free FAX (800) 468-1340
www.linearcorp.com
1) MISCONNECTIONS MAY CAUSE DAMAGE TO
CONTROL PANEL ELECTRONICS
2) DO NOT REVERSE BATTERY LEADS
3) TO PREVENT RISK OF ELECTRICAL SHOCK,
DISCONNECT TELCO JACK BEFORE SERVICING
THIS CONTROL PANEL
4) FOR CONTINUED PROTECTION AGAINST FIRE,
REPLACE ONLY WITH SAME TYPE AND RATING OF
FUSES
1) NO USER SERVICABLE PARTS INSIDE
2) RISK OF FIRE AND ELECTRICAL SHOCK, ROUTE
WIRES AWAY FROM INTERNAL COMPONENTS
3) REMOVE AC POWER BEFORE CONNECTING
TRANSFORMER, BATTERY, OR REPLACING FUSES
1) USE UL LISTED CABLE FOR ALL CONNECTIONS
2) WEEKLY TESTING IS REQUIRED TO ENSURE PROPER
OPERATION OF THIS SYSTEM
3) DO NOT CONNECT AC POWER TO A RECEPTACLE
CONTROLLED BY A SWITCH
4) CONNECTION OF THE FIRE ALARM SIGNAL TO A
FIRE ALARM HEADQUARTERS OR A CENTRAL STATION
SHALL BE PERMITTED ONLY WITH THE APPROVAL OF
THE LOCAL AUTHORITY HAVING JURISDICTION. THE
BURGLAR ALARM SIGNAL SHALL NOT BE CONNECTED
TO A POLICE EMERGENCY NUMBER.
LINEAR LLC
RESIDENTIAL SECURITY RECEIVER
MODEL: DUAL 824
PART # SSC00056
FREQUENCY: 315 MHz
POWER SUPPLY: 16 VAC, 1.25A
This device complies with FCC Part 15 and IC
Canada Rules and Regulations. Operation is
subject to the following two conditions: (1) This
device may not cause harmful interference and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
Complies with Part 68, FCC Rules.
FCC Registration Number: EF4HKG-31823-AL-E
Ringer Equivalence Number: 1.7B
Warranty Expiration Date:
MODEL RSM-2
VOICE RESPONSE
SPEAKER
8 Ohm - 2 Watts
USOC JACKS:
RJ31X, RJ38X
MADE IN CHINA 454
CANADIAN REGULATORY INFORMATION
IC ID 1078-102-556A
Complies with IC RSS 210
En conformité avec IC CNR 210.
