Linear DUAL 824 User Manual

Page 13

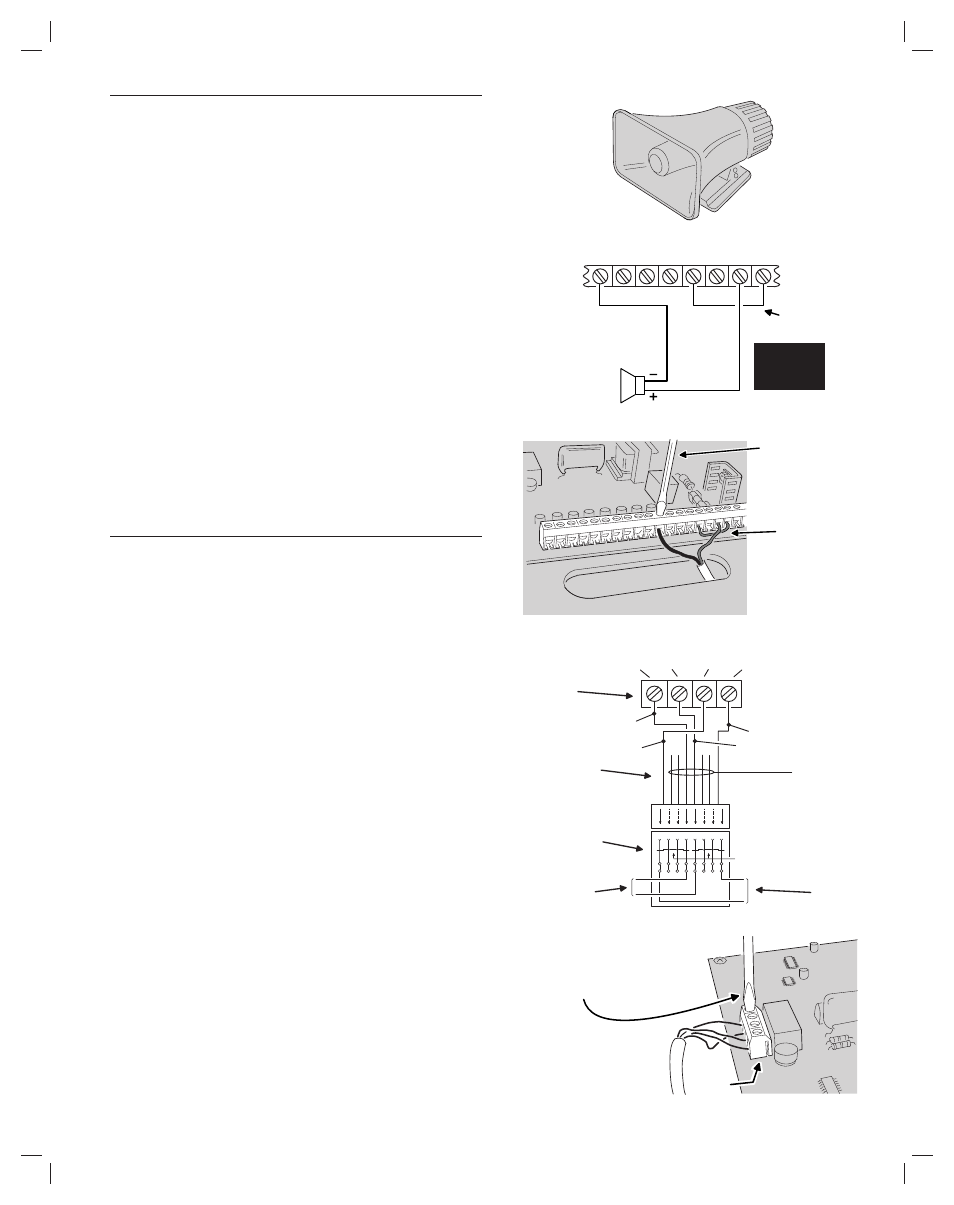

EXTERNAL ALARM SIREN CONNECTION

✦ An external siren alerts occupants and neighbors

with a loud siren during alarm.

✦ Use a 12 volt, 1 amp maximum rated weather-

resistant horn speaker with a built-in siren driver.
Do not use a plain speaker without a siren driver.

✎ NOTE: Connection of an electromechanical bell or

motor bell is not recommended because of the radio
interference generated when the bell is running.

✎ UL NOTE: Only one external siren is allowed in UL

installations.

1. Mount the external siren.
2. Route the wires from the external siren to the

Control Panel.

3. Route the siren wires up through the wiring access

slot or through a knockout when using conduit.

4. Connect a jumper wire from the +12 VDC terminal

to the RLY COM terminal.

5. Connect the positive siren wire to the RELAY

N/O terminal.

6. Connect the negative siren wire to one of the

COM terminals.

✎ NOTE: The relay contacts are isolated. Use the

RLY N/O & RLY COM terminals alone to switch an
externally powered load.

TELEPHONE LINE CONNECTION

✦ Connect the Control Panel to the telephone

line if the system is monitored, requires 2-way
audio, telephone remote command, or for remote
programming with RA-2400 software.

✦ Telephone RING & TIP terminals are for

connection to the incoming telephone line.

✦ Seized telephone ring & tip (R1 & T1) are for

connection to local telephone sets. When the
communicator activates, all the local telephone
sets will be disconnected to prevent an off-hook
telephone on the premises from blocking the
communicator call.

1. Install a USOC RJ31-X or RJ38-X jack to the

telephone system near the Control Panel.

2. Route an appropriate modular telephone line

cord from the jack to the Control Panel.

3. Route the line cord through the Control Panel's

wiring access slot or through a knockout for
conduit wiring.

4. Connect the incoming telephone line wires to the

Control Panel's telephone terminal block TIP and
RING terminals.

5. Connect the local telephone set wires to the Control

Panel's telephone terminal block T1 and R1 terminals.

✦ When directly connecting (without a telephone line)

to the DUAL 824 with the RA-2400 remote access
software (Version 1.3 or later), disconnect the
incoming telephone line and connect the modem
to the panel's TIP and RING terminals (with the
modem's red & green phone line wires). Press the
EMERGENCY key while in Test Mode to cause the
panel to connect to the modem.

LOOP

H/A

RLY

COM

RLY

N/C

RLY

N/O

COM

EXTERNAL SIREN

12 VDC 1 AMP

MAXIMUM

EXTERNAL

ALARM RELAY

12 VDC, 1 AMP

MAXIMUM

INSTALL WIRE
JUMPER TO PROVIDE
POWER TO RELAY
CONTACTS

+12

VDC

MAIN TERMINAL BLOCK

CONNECT EXTERNAL
SIREN TO ALARM RELAY
TERMINALS

INSTALL A JUMPER
WIRE BETWEEN THE
+12 VDC AND RLY COM
TERMINALS

SEIZED

RING (R1)

SEIZED
TIP (T1)

LINE

RING (R)

LINE

TIP (T)

GRAY

RED

TO LOCAL
TELEPHONE
SETS

TO TELEPHONE
NETWORK

8-POSITION

USOC RJ31-X

(OR RJ38-X)

JACK

SHORTING BAR
SHORT REMOVED
ON PLUG
INSERTION

8-PIN

MODULAR

PHONE CORD

DUAL 824P

TELEPHONE

TERMINAL

BLOCK

GREEN

BROWN

BLUE, ORANGE
BLACK, AND
YELLOW NOT
USED

TELEPHONE TERMINAL BLOCK

CONNECT INCOMMING AND
OUTGOING TELEPHONE LINES
TO THE TELEPHONE TERMINAL BLOCK

TELEPHONE

TERMINAL

BLOCK

EXTERNAL

ALARM

SIREN
