SUPERVISED
DIGITAL SECURITY
TRANSMITTER
Installation Instructions
(760) 438-7000 • FAX (760) 438-7043
USA & Canada (800) 421-1587 & (800) 392-0123
Toll Free FAX (800) 468-1340
DESCRIPTION
The T-90 is a supervised, digitally-coded radio transmitter designed
for applications such as door/window security. The T-90 is supervised
for alarms and restorals, low battery, status, tamper, and test. The
T-90 transmitter is compatible with any Linear SX format
supervised security receiver.
Coding switches are not required or used in the T-90. Each transmitter
is pre-coded at the factory to a unique code. With the SX format, there
are more than sixteen million codes possible.
The T-90 can be triggered with the built-in internal magnetic contacts,
with various types of external contacts, or both. When using one of
the internal contacts and the external input, both sensors must be
secured for a restore transmission, faulting either sensor will cause
an alarm transmission. External inputs can be either normally open
or normally closed.
Switch selected options are included for glass break sensors, built-in
pulse stretcher, battery saver, and external input type.
The transmitter is powered by two self-contained type 2032 3-volt
batteries. These batteries are supplied with the transmitter and have
sufficient life for most installations. Larger, type 2450 batteries can be
used to power the transmitter longer in high traffic installations. When
the battery voltage gets low, a low battery report is sent with any status,
alarm, tamper or test report to the receiver. Use only DL2450, or
CR2032 batteries.

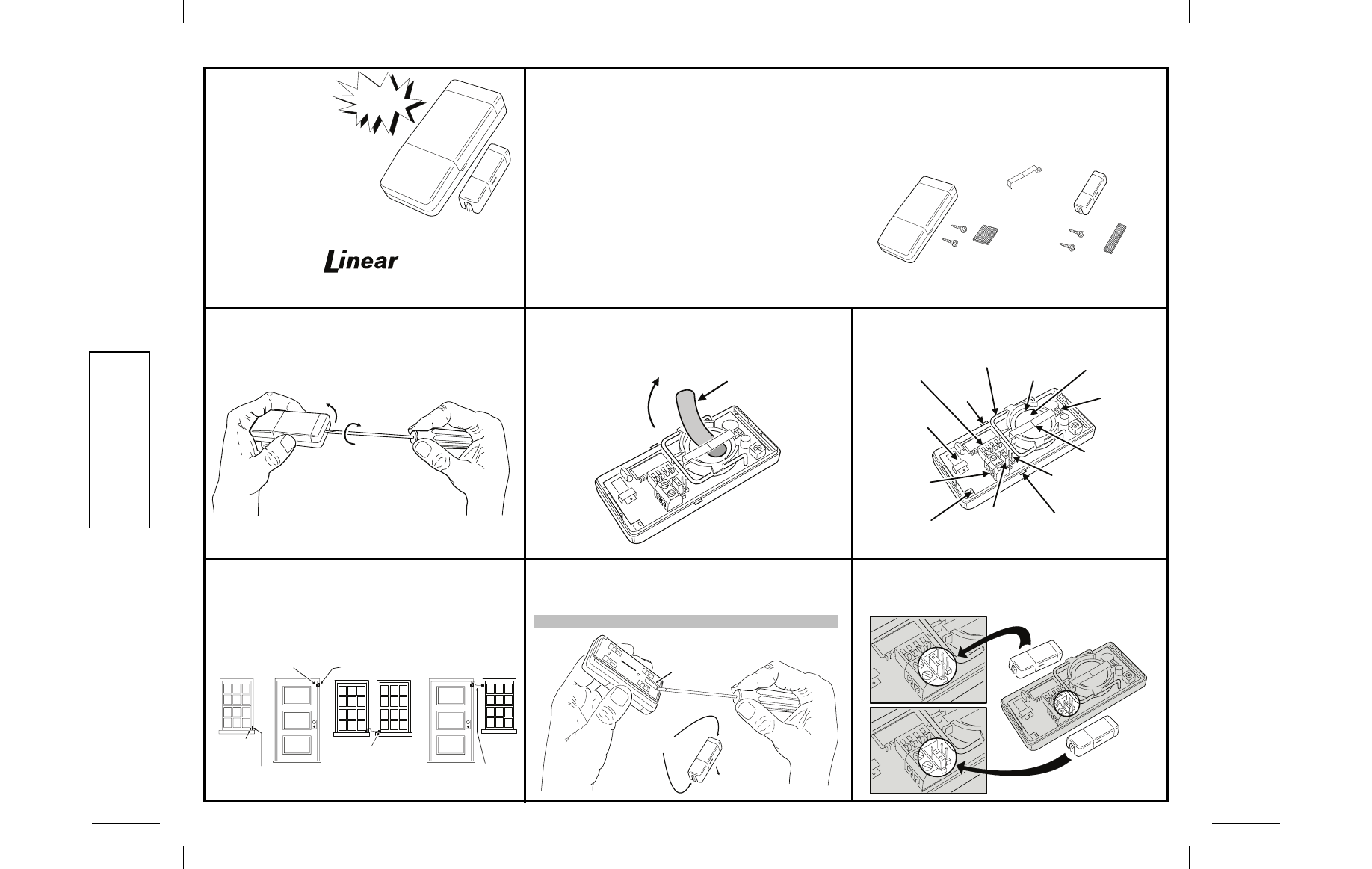

STEP 1 Remove cover. Remove the T-90 transmitter
cover by twisting a small screwdriver in the top slot (the fat
end of the transmitter).
STEP 2 Remove battery protection strip. Pull the battery
protection strip out from underneath the battery clamp.
STEP 3 Identify transmitter components. Examine the
transmitter to identify the component locations.
STEP 4 Pick transmitter location. Select a location for
the transmitter. Avoid mounting the transmitter near the floor.
Low level mounting can reduce transmission range and may
subject the transmitter to damage. Mounting the transmitter
on metal frame doors and windows is not recommended
because the radio range will be reduced.
STEP 5 Remove mounting plates. U s e a s m a l l
screwdriver to remove the transmitter’s mounting plate.
Squeeze the magnet’s tabs to remove its mounting plate.
☞
IF USING EXTERNAL CONTACTS, SKIP TO STEP 8
STEP 6 Select switch side. Place the internal contact
jumper on the pins closest to the transmitter side on which the
magnet will be.
T-90
TRANSMITTER
TRANSMITTER
SCREWS AND
DOUBLE STICK TAPE
TALL BATTERY
CLAMP FOR
LONG-LIFE
BATTERIES
MAGNET
SCREWS AND
DOUBLE STICK TAPE
ADJUSTABLE
MAGNET
TWIST
LIFT
1
2
PULL
STRIP TO
REMOVE
BATTERY
PROTECTION
STRIP
TEST/TAMPER
SWITCH
OPTION
SWITCH
ANTENNA
EXTERNAL
CONTACT
TERMINALS
WIRE
ENTRY
SLOT
INTERNAL
CONTACT
SIDE SELECT
JUMPER
INTERNAL
CONTACT
DISABLE PINS
BATTERY
CLAMP
BATTERY
CLAMP
SCREW
TWO DL2032
OR CR2032
BATTERIES
BATTERY
REDUCTION
RING
MAGNET
ALIGNMENT
MARK
MAGNET
ALIGNMENT
MARK
EXTRA SWITCH FOR
ADJACENT WINDOW
EXTRA SWITCH
FOR WINDOW
NEXT TO DOOR
TRANSMITTER
ON FRAME
MAGNET
ON DOOR
TRANSMITTER
ON FRAME
MAGNET ON
WINDOW
LIFT TAB WITH
SCREWDRIVER
SLIDE
MOUNTING
PLATE OFF
SQUEEZE
REMOVE
1
2
1
2
1
2
JUMPER TO LEFT
FOR MAGNET ON
THIS SIDE
JUMPER TO RIGHT
FOR MAGNET ON
THIS SIDE
(FACTORY SETTING)
SX
FORMAT!
