PROGRAM THE HARDWIRED LOOPS

✦ Each hardwired loop used must be programmed

into the Control Panel's memory.

✦ Each hardwired loop programmed uses one of

the twenty four available sensor locations.

1. Start with the system in Test Mode (enter the

master user code and press TEST).

2. Enter the Setup Mode from Test Mode, enter the

master user code then press TEST again.

A “Gong” and fi ve “Beeps” will sound. The system is now

in Setup Mode.

The sensor status indicators will light for any sensors

already programmed into the Control Panel.

3. Enter programming Step #301-308 (301=loop 1,

302=loop 2, etc.) for the hardwired loop desired.

4. Press HOME to select step.
5. Enter an unused sensor number from 01-24 for

the loop (you must enter two digits, example:
5 = 05).

6. Press AWAY to store.

A single “Bing” tone will sound and the sensor status

indicator for that sensor will stay lit. A double “Buzz” will
sound if that sensor location is already in use.

7. Repeat Steps 3-6 to enable all of the hardwired

loops used.

NOTE: The default sensor function for the

hardwired loops is Perimeter (Type 5). Any sensor
function can be selected for each hardwired loop,
refer to the “Customizing the System” section of
this manual.

PROGRAM THE WIRELESS SENSORS

✦ Each wireless sensor used must be programmed

into the system’s memory. See the next two pages for
details on activating different models of transmitters.

✦ Each wireless sensor programmed uses one of

the twenty four available sensor locations.

1. Start with the system in Test Mode (enter any

user code and press TEST).

2. Enter the Setup Mode from Test Mode, enter the

master user code then press TEST again.

A “Gong” and fi ve “Beeps” will sound. The system is now

in Setup Mode.

The sensor status indicators will light for any sensors

programmed into the Control Panel.

3. Enter an unused sensor number from 01-24 (you

must enter two digits, example: 5 = 05).

The sensor indicator light will fl ash for the sensor number

selected.

4. Activate the sensor by sending a test or alarm

signal (be sure the sensor's battery is connected
or that its battery protection strip is removed).

A single “Bing” tone will sound and the sensor status

indicator for that sensor will stay lit. A “Buzz” will sound if
that sensor location is already in use.

5. Repeat Steps 3 & 4 for each additional sensor, or

exit Setup Mode by pressing the OFF button for
three seconds.

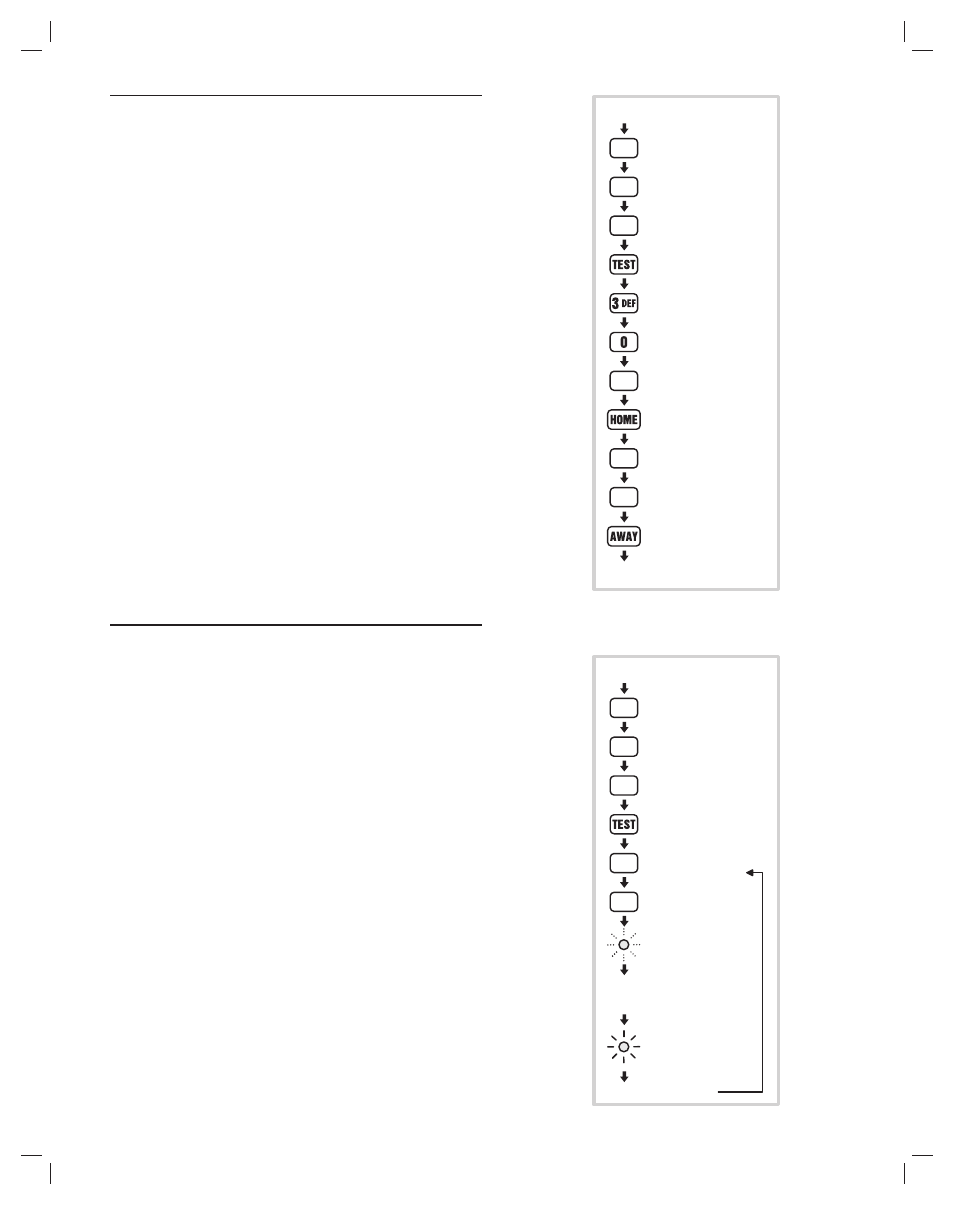

START IN TEST

MASTER
USER
CODE

1 GONG & 5 BEEPS
(SETUP MODE)

STEP #301-308
FOR LOOP #1-8

ENTERS STEP
NUMBER

STORES LOOP
SENSOR NUMBER
1 BING

SENSOR
NUMBER (01-24)
FOR LOOP

DONE

START IN TEST

MASTER
USER
CODE

1 GONG & 5 BEEPS
(SETUP MODE)

NEW SENSOR
NUMBER

1 BING AND
SENSOR
INDICATOR
LIGHTS

REPEAT OR EXIT

ACTIVATE
SENSOR

SENSOR
INDICATOR
FLASHES
