28

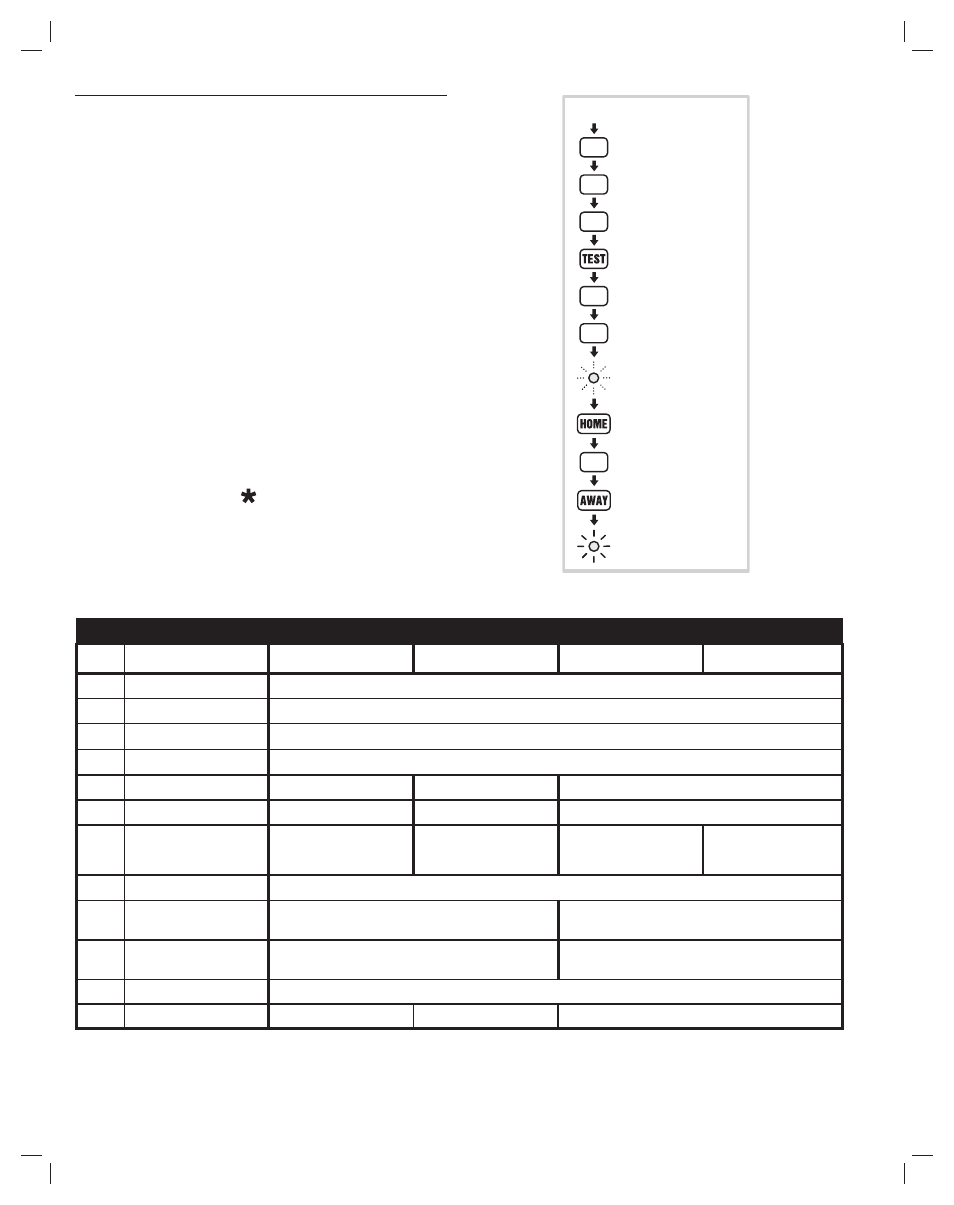

MAKING A SENSOR PERFORM A DIFFERENT FUNCTION
✦ Sensors can be reprogrammed to perform
different sensor functions.
✦ The sensor must have already been programmed
into the Control Panel (see “Adding sensors to
the System” for details).
1. Start with the system in Test Mode.
2. Enter the master user code then press TEST.
✴ A “Gong” and fi ve “Beeps” will sound.
✴ The sensor status indicators will light for each sensor
programmed into the Control Panel.
3. Enter the sensor number from 01-24 (you must
enter two digits, example: 5 = 05).
✴ The sensor status indicator light will fl ash for the sensor
number selected.
4. Choose a sensor function number from the
Sensor Function Table.
5. Press HOME, the new sensor function number,
then AWAY.
✴ A “Bing” tone will sound and the sensor status indicator
will light steady.
6. Enter another sensor number or exit Setup Mode
by pressing the key then press OFF for three
seconds.
PROGRAMMING INFORMATION SENSOR OPERATION IN EACH SYSTEM MODE
FUNC-
TION #
SENSOR FUNCTION OFF MODE CHIME MODE HOME MODE AWAY MODE
1 AUTOMATION ACTIVATES AND DEACTIVATES THE AUTOMATION OUTPUT
2 EMERGENCY ARMED 24-HOURS - TRIGGERS EMERGENCY ALARM
3 PANIC ARMED 24-HOURS - TRIGGERS SILENT PANIC ALARM
4 FIRE ARMED 24-HOURS - TRIGGERS FIRE ALARM
5 PERIMETER DEACTIVATED CHIME INSTANT BURGLARY ALARM
6 EXIT/ENTRY DEACTIVATED CHIME DELAYED BURGLARY ALARM
7 INTERIOR DEACTIVATED DEACTIVATED DEACTIVATED
INSTANT BURGLARY ALARM
UNLESS ACTIVATED DURING
AN ENTRY DELAY, THEN IT IS
DELAYED
8 CHIME CHIME
9
2-BUTTON ARM/DISARM (LEFT)
2-BUTTON AUTOMATION (RIGHT)
EMERGENCY (BOTH BUTTONS)
LEFT BUTTON SWITCHES SYSTEM TO AWAY MODE †
IF ALARM MEMORY IS ACTIVE, SWITCHES SYSTEM TO OFF MODE ‡
LEFT BUTTON SWITCHES SYSTEM TO OFF MODE ‡
10
2-BUTTON ARM (LEFT)
2-BUTTON DISARM (RIGHT)
EMERGENCY (BOTH BUTTONS)
LEFT BUTTON SWITCHES SYSTEM TO AWAY MODE †
IF ALARM MEMORY IS ACTIVE, SWITCHES SYSTEM TO OFF MODE ‡
RIGHT BUTTON SWITCHES SYSTEM TO OFF MODE ‡
11 ENVIRONMENTAL ARMED 24-HOURS - TRIGGERS ANNUNCIATION ONLY
12 INTERIOR HOME DEACTIVATED DEACTIVATED INSTANT BURGLARY ALARM
START IN TEST
MASTER
USER
CODE
1 GONG & 5 BEEPS
(SETUP MODE)
NUMBER OF
SENSOR FOR
FUNCTION CHANGE
SENSOR
INDICATOR
FLASHES
ENTERS SENSOR
NUMBER
NEW FUNCTION
NUMBER FOR
SENSOR
STORES CHANGE
1 BING AND SENSOR
INDICATOR LIT
SENSOR FUNCTION TABLE
† CAN BE HOME MODE USING PROGRAMMING STEP 50
‡ CAN BE CHIME MODE USING PROGRAMMING STEP 51
