Appendix D Connector Pinouts D-15
D.9 Flex Cable DVD-ROM Drive Connector
The flex cable DVD-ROM drive IDE connector pins and their corresponding
descriptions are shown in the figure and table in this section.

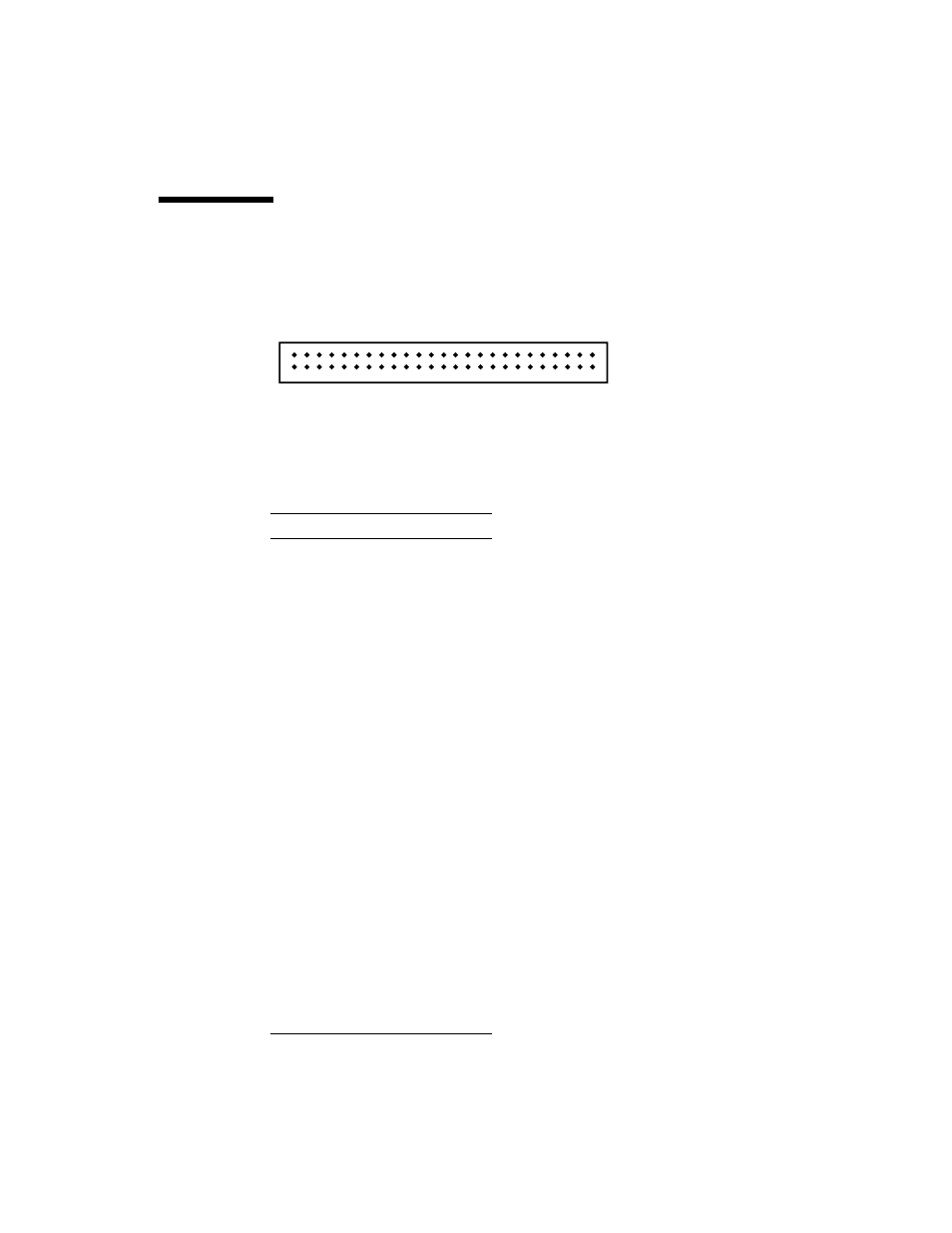

FIGURE D-9 Flex Cable DVD-ROM Drive IDE Connector
TABLE D-9 Flex Cable DVD-ROM Drive IDE Connector Pinouts
Pin Number Signal Name
1 Audio L-CH
(not supported)
2 Audio R-CH
(not supported)
3 Audio Ground
4 Ground
5 RESET_L
6 DD8
7 DD7
8 DD9
9 DD6
10 DD10
11 DD5
12 DD11
13 DD4
14 DD12
15 DD3
16 DD13
17 DD2
18 DD14
