D-6 Sun Fire X4100 and Sun Fire X4200 Servers Service Manual • June 2006
D.5 VGA Video Connector
The VGA video connector pins and their corresponding descriptions are shown in
the figure and table in this section.

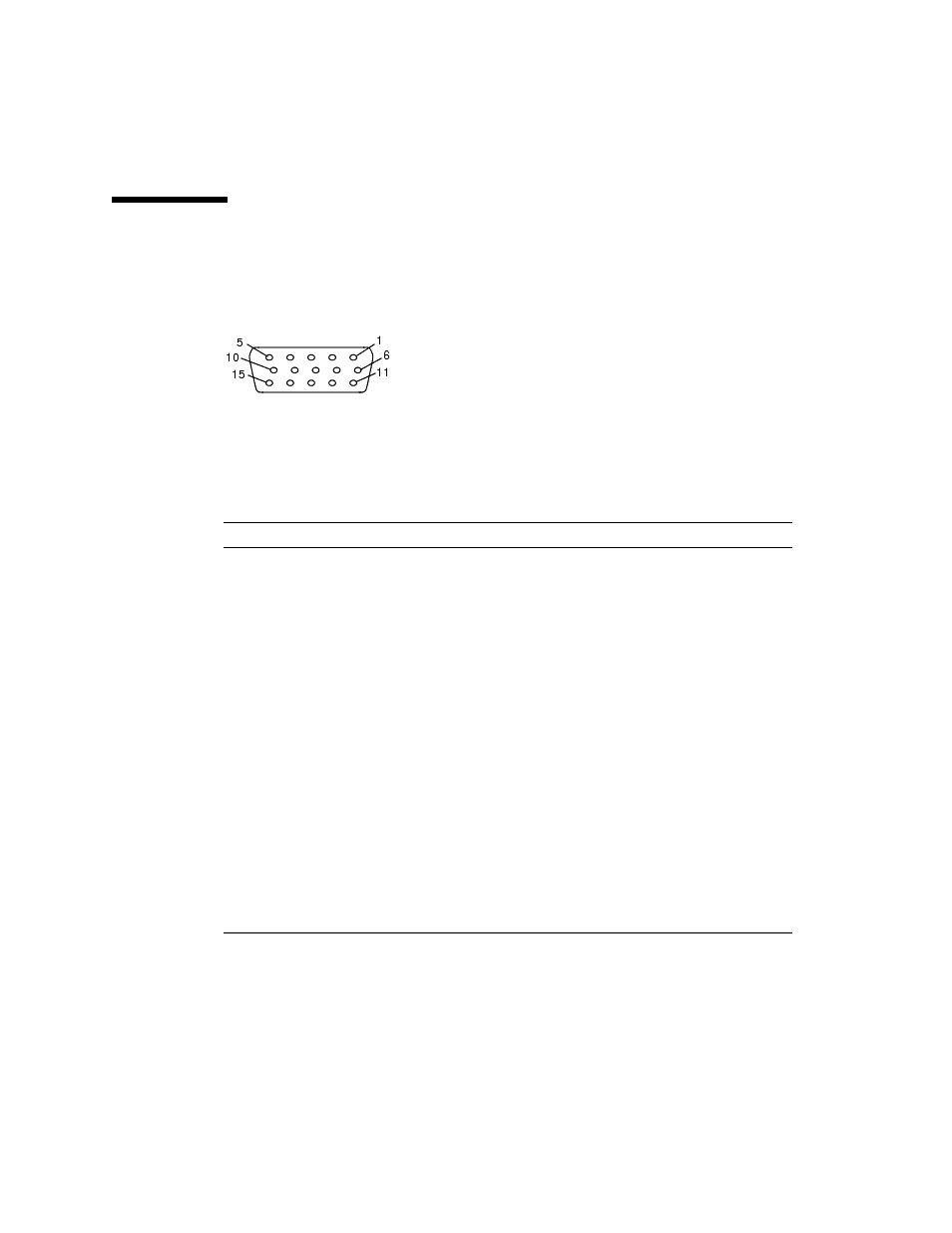

FIGURE D-5 VGA Video Connector
TABLE D-5 VGA Video Connector Pinouts
Pin Number Pin Name Description
1 RED Red video
2 GRN Green video
3 BLU Blue video
4 ID2 ID2 (no connect)
5 GND Ground
6 R_GND Red video return (ground)
7 G_GND Green video return (ground)
8 B_GND Blue video return (ground)
9 KEY No pin
10 S_GND Sync return (ground)
11 ID0 ID0 (no connect)
12 ID1/SDA MONID1
13 HSYNC Horizontal sync
14 VSYNC Vertical sync
15 ID3/SCL MONID2
