DAB1 DISTRIBUTED AUDIO SYSTEM
Finding RS-232 Commands in Macros
As stated on page 45, the DAB1 is capable of serial operation in one
direction
only, either inbound OR outbound. Placing a single RS-232
command in one macro will automatically configure the DAB1 for
outbound serial operation — the unit will not respond to inbound
commands from a connected serial control device.
To allow the DAB1 to become an
inbound serial device that will respond
to commands from a connected serial control device you must remove all
RS-232 commands from all DAB1 macros. The System Configuration
Report allows you to see ever y command in ever y
DAB1 macro, making it easier to delete all RS-232 commands.
As you scroll-through the macros in the System Configuration Report,

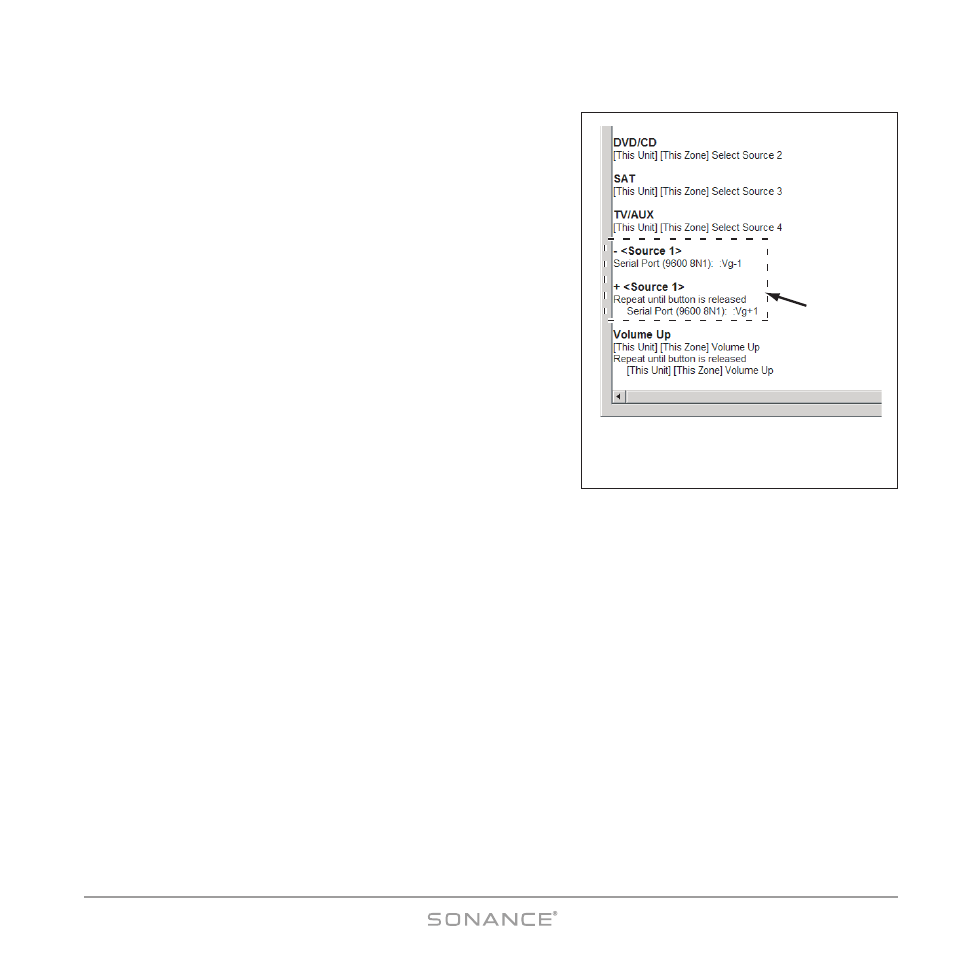

RS-232 macro commands will appear as shown in
Figure 76.
RS-232 Macro
Commands
Figure 76:
S
YSTEM
C
ONFIGURATION
R
EPORT
Showing RS-232 Macro Commands
