45
DAB1 DISTRIBUTED AUDIO SYSTEM
After setting the number of repeats, drag the Repeat
Steps icon into the M
ACRO Window. Then drag the
command to be repeated into the bracket connected
to the Repeat command (see
Figure 65, on page 44).
T o g g l e I R C o d e
The T OGGLE IR C ODE command (see Figure 66) causes
a button to alternate between two different IR
commands each time the button is pressed. This is
useful for creating a button that will toggle between
two different commands such as combining separate
P
LAY and P AUSE commands into a single button.
After dragging the T OGGLE IR C ODE icon into the
M ACRO Window, drag the two IR commands you want
the button to toggle between into the bracket connect-
ed to the T
OGGLE IR C ODE command (see Figure 67).
Modifying IR Commands In Macros
After a macro has been completed, IR commands can be modified from within the
macro, allowing you to “fine-tune” the command’s IR characteristics (and the
macro’s performance) without having to rebuild the macro from scratch.
Double-click on the macro command you want to modify. The E
DIT IR C OMMAND
window (see Figure 68) will appear, allowing you to change the number of times
the command is repeated on each button press, the command’s IR frequency and
the P
ROGRAMMED IR port that outputs the command.
Controlling the DAB1 via RS-232
(Inbound Serial Control)
In addition to issuing RS-232 commands in macros to control other audio/video components, the DAB1’s audio functions
can also be controlled via RS-232 commands issued by an RS-232 capable control device (serial control).
No t e : T h e DA B 1 i s c a p a b l e o f o n e - d i re c t i o n a l s e r i a l o p e ra t i o n ( e i t h e r INBOUND O R OUTBOUND ) O N LY.
P l a c i n g a s i n gl e R S - 2 3 2 c o m m a n d i n a n y m a c r o w i l l a u t o m a t i c a l ly c o n f i g u re t h e DA B 1 a s a n
OUTBOUND serial control unit that will not respond to RS-232 commands from a serial control device.
To allow the DAB1 to be controlled b y a ser ial-control de vice you must remove all RS-232
commands from all macros. See Finding RS-232 Commands In Macros, on page 53, for more infor mation.
DAB1 Inbound Serial Protocol (fixed)
Baud Rate = 1 19 92 20 00 0 ; Data Bits = 8 8; Parity = N Noonnee ; Stop Bits = 1 1; Flow Control = N Noonnee
Drag
Icon Into
Macro
Window

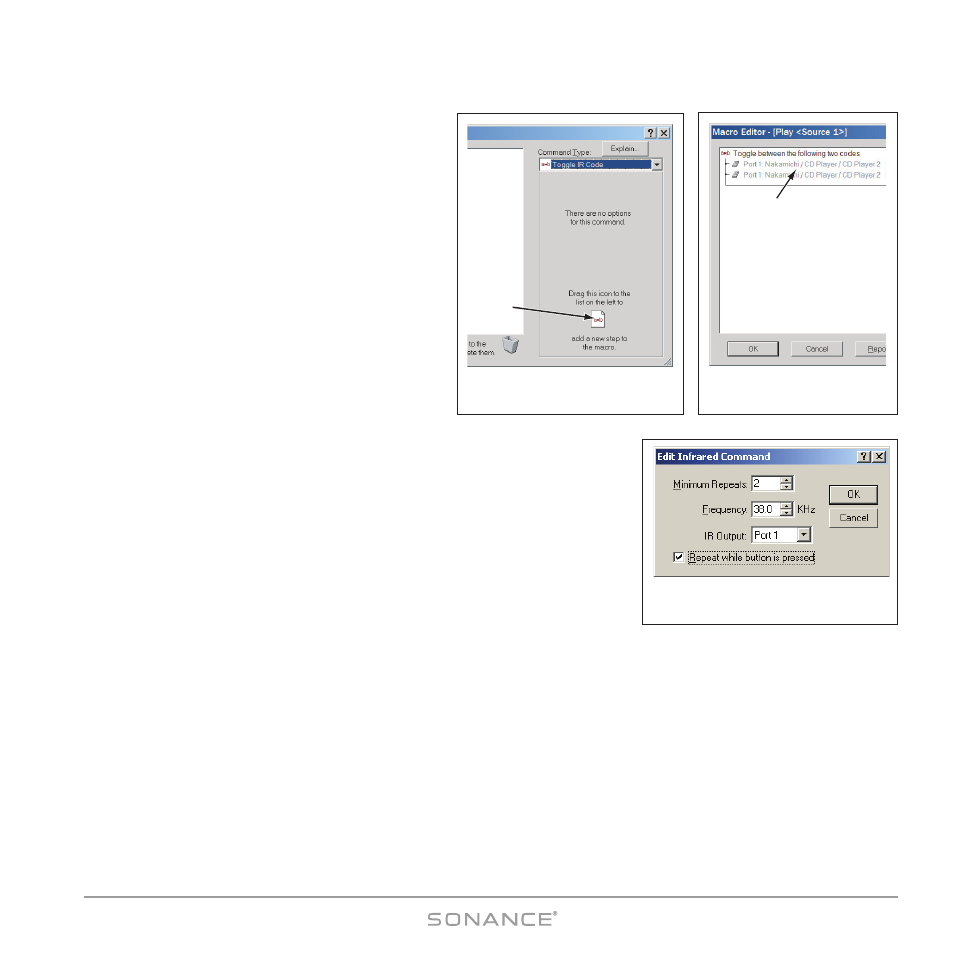

Figure 66:
T OGGLE IR C ODE Window
Drag Commands
into Toggle Bracket
Figure 67:
Drag Commands Into Bracket
Figure 68:
E DIT IR C OMMAND Window
