Using the dab1 with sonance navigator, K2 and k1 programmable keypads, 49 dab1 distributed audio system – Sonance DAB1 User Manual

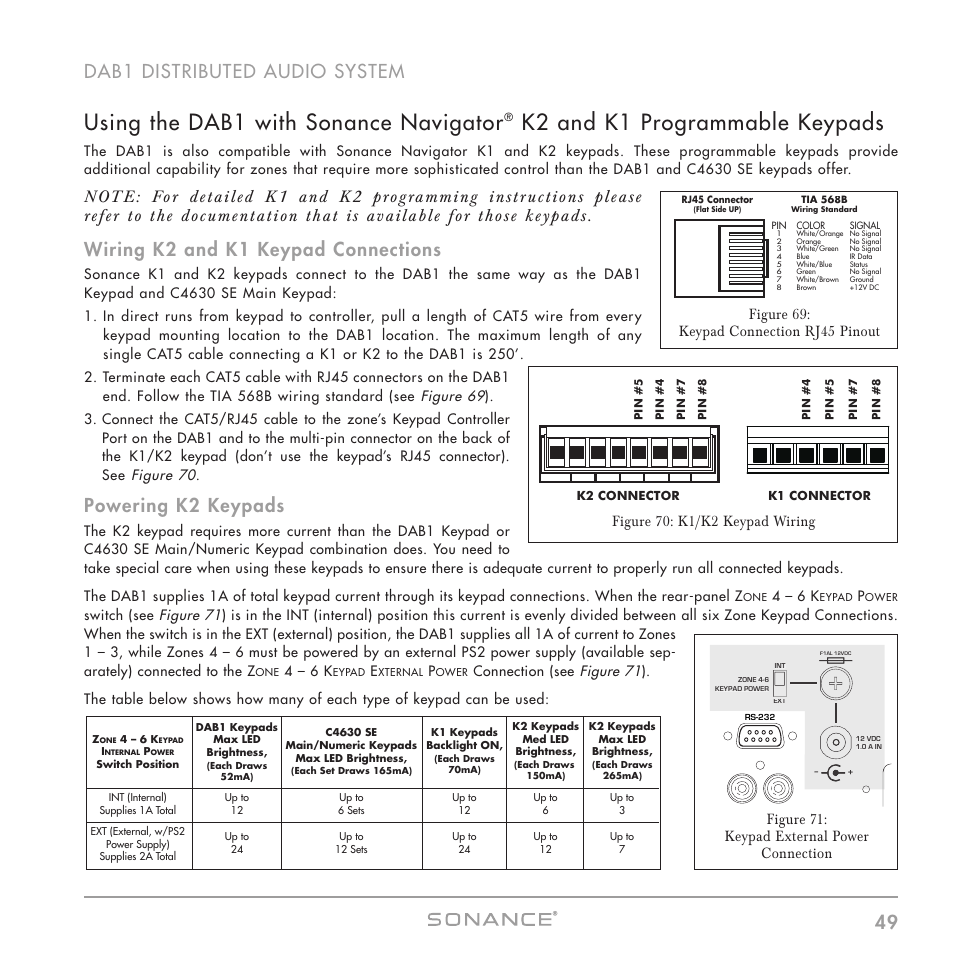

Page 49: Wiring k2 and k1 keypad connections, Powering k2 keypads, Figure 69: keypad connection rj45 pinout, Figure 70: k1/k2 keypad wiring, Figure 71: keypad external power connection, 4 – 6 k
Using the dab1 with sonance navigator, K2 and k1 programmable keypads, 49 dab1 distributed audio system | Wiring k2 and k1 keypad connections, Powering k2 keypads, Figure 69: keypad connection rj45 pinout, Figure 70: k1/k2 keypad wiring, Figure 71: keypad external power connection, 4 – 6 k | Sonance DAB1 User Manual | Page 49 / 68
