Rack Mounting the XL-GPS
The XL-GPS comes with the following parts needed to mount the XL-GPS securely in any EIA standard
19-inch (48.26-cm) rack:
• 2 mounting brackets
• 4 flat-head, Phillips screws
Have the following items ready and available:
• The appropriate AC or DC power source to connect to the XL-GPS’s power supply.
• A #2 size Phillips bit screwdriver

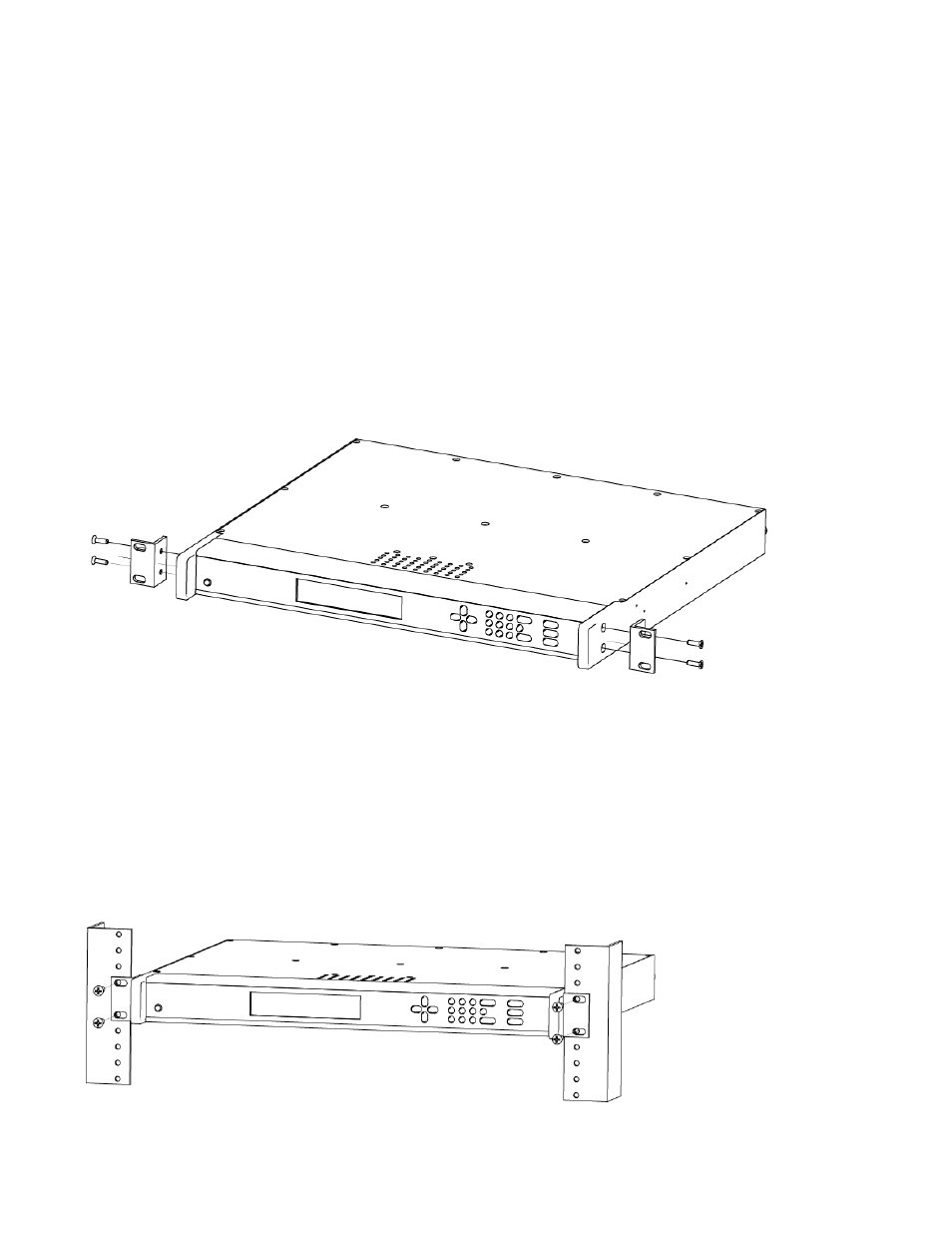

To rack mount the XL-GPS:
• Unscrew the four phillips-head screws from the front end of the side panels.
• Use the same screws to attach the rack mount brackets, as shown.
• Tighten the screws using a #2 size Phillips screwdriver.
• Position the XL-GPS in any EIA Standard 19-inch (48.26 cm) rack system, and line up holes in the
brackets with the holes in the rack.
• Secure the brackets to the rack using rack mount screws.
