PDF417
Command Structure
aa
=
Minimum module dimension (03-09 dots). Will not print
if values of 01, 02 or greater than 10 are specified.
bb
=
Minimum module pitch dimension (04-24 dots). Will not
print if values of 01, 02, 03 or greater than 25 are
specified.
c
=
Security (error detection) Level (1-8).
dd
=
Code words per line (01-30). If 00 is specified for both
dd and ee, the printer automatically optimizes the number
of rows per symbol.
ee
=
Rows per symbol (00 or 03-40). If 00 is specified for both
dd and ee, the printer automatically optimizes the number
of rows per symbol.
ffff
=
Number of characters to be encoded (0001-2700).
nn...n =
Data to be printed
g
=
not specified, Standard PDF417
T
Truncated PDF417
M Micro PDF417
Character Set
ASCII 128 character set plus PC437 Extended Character set.
Notes
See AIM USA Uniform Symbology Specification PDF417 for
information on the structure of this symbology.

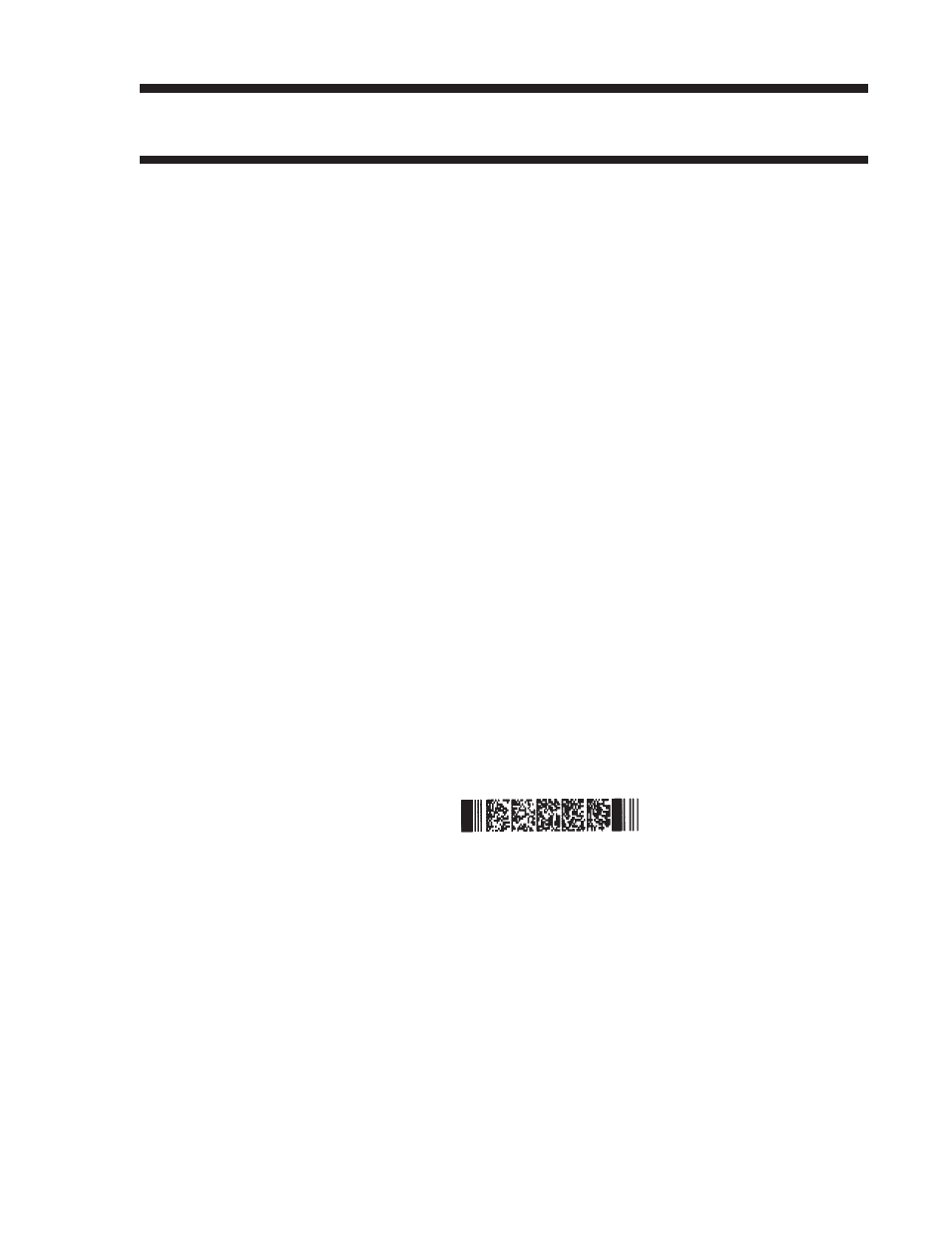

Example
