MSI

Command Structure

1:3 ratio:

BAbbccc (data) d

2:5 ratio

BDAbbccc (data) d

1:2 ratio

DAbbccc (data) d

bb

=

Width of narrow element in dots (01-12)

ccc

=

Bar height in dots (001-600)

(data) =

Bar code data (numeric); maximum of 15 digits

d

=

Required check digit

Character Set

0-9 (numeric only)

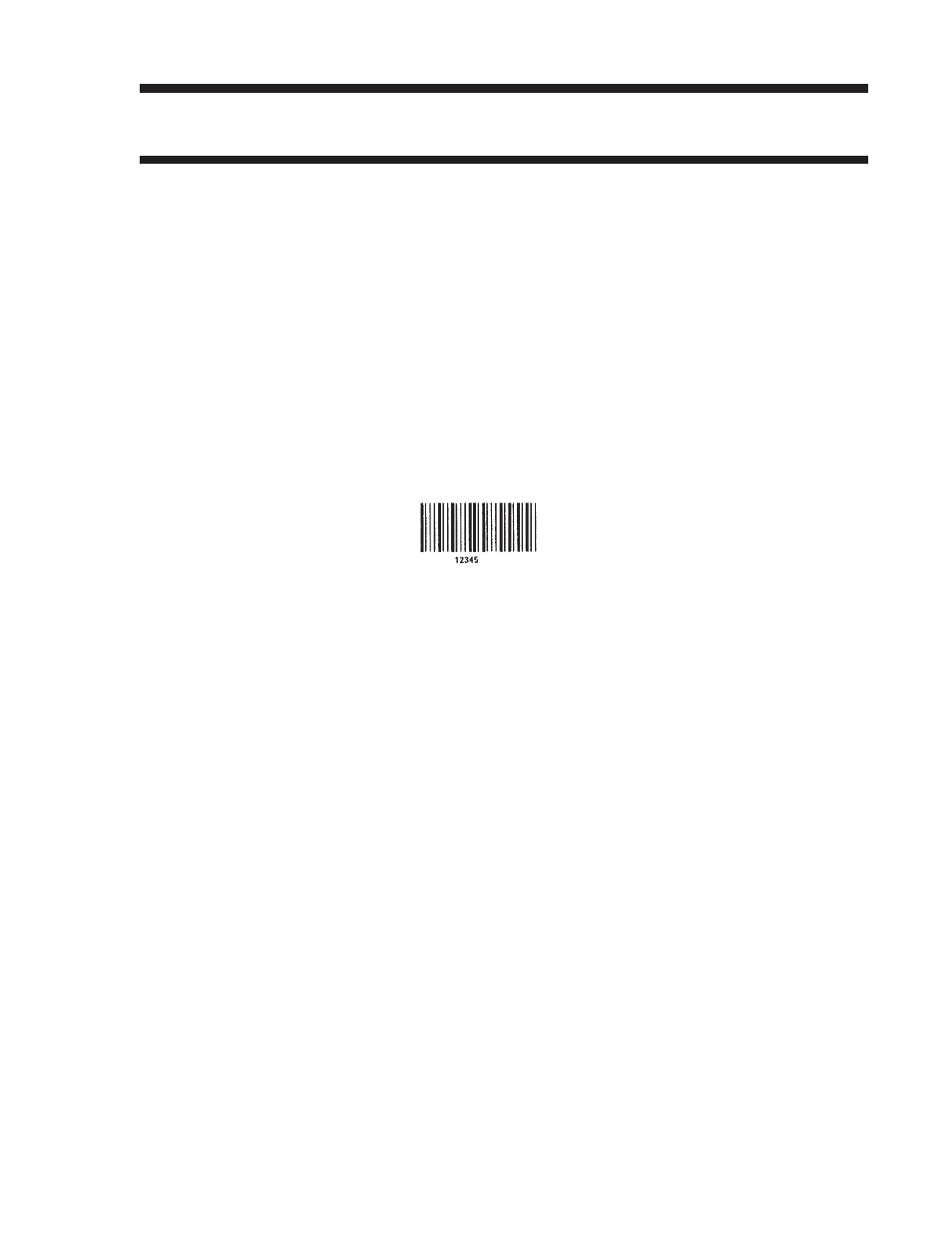

Example

H0100V0950BA03100123455
H0170V1060XS12345

Appendix B: Bar Code Specifications

SATO Ct Series Printers

900106

9A

Page B-11
