Interleaved Two of Five (I 2/5)
Command Structure
1:3 ratio:
2:5 ratio:
1:2 ratio:
bb
=
Width of narrow element in dots (01-12)
ccc
=
Bar height in dots (001-600)
(data) =
Bar code data (numeric); must be an even number of digits
or else the printer will add a leading zero; start and stop
code are provided by the printer
Character Set
0-9 (numeric only)

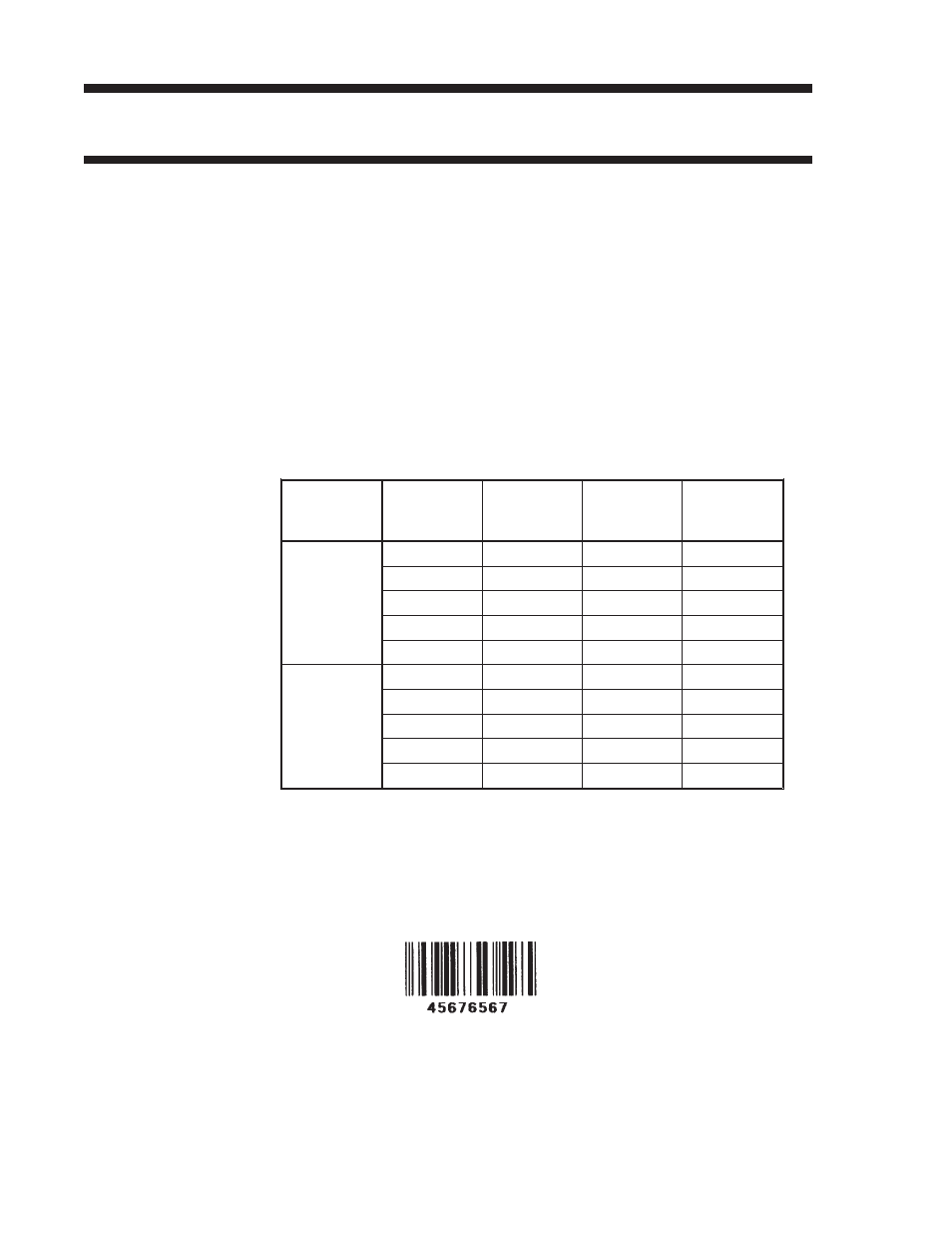

Density Table
Printer
Model
Narrow/
Wide
Ratio
Value of
“bb”
“X”
Dimension
(mils)
Density
(char/inch)
CT410
1:3
01
3.3
33.4
1:3
02
6.7
16.7
2:5
01
6.7
18.8
1:2
01
3.3
21.4
1:2
02
6.7
14.3
CT400
1:3
01
5.0
22.6
1:3
02
10.0
11.3
2:5
01
10.0
12.7
1:2
01
5.0
14.5
1:2
02
10.0
9.7
Example
Notes
To add horizontal guard bars to the top and bottom of the bar code,
use the Line and Box command.
Appendix B: Bar Code Specifications
Page B-4
900106
9A
SATO Ct Series Printers
