Two-Dimensional Bar Codes
PDF417
Command Structure
aa
=
Minimum module dimension (03-09 dots). Will not print
if values of 01, 02 or greater than 10 are specified.
bb
=
Minimum module pitch dimension (04-24 dots). Will not
print if values of 01, 02, 03 or greater than 25 are
specified.
c
=
Security (error detection) Level (1-8).
dd
=
Code words per line (01-30). If 00 is specified for both
dd and ee, the printer automatically optimizes the number
of rows per symbol.
ee
=
Rows per symbol (00 or 03-40). If 00 is specified for both
dd and ee, the printer automatically optimizes the number
of rows per symbol.
ffff
=
Number of characters to be encoded (0001-2700).
nn...n =
Data to be printed.
Example:
Placement:
Immediately preceding data to be encoded
Default:
None
Command Function
To print a PDF417 two-dimensional bar code image on a label.
Printer Input

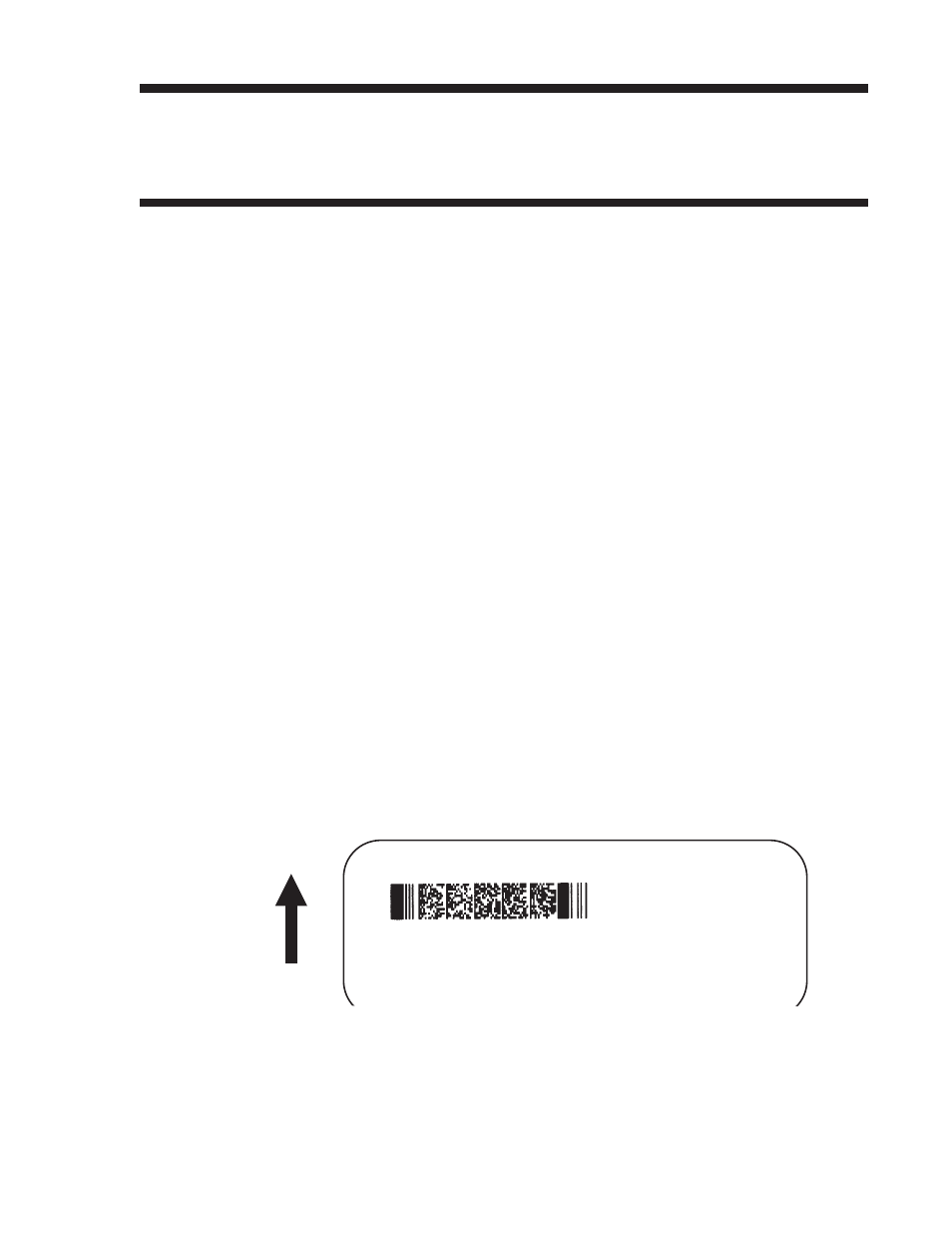

Printer Output
Special Notes
1. When the code words per line and the number of rows per symbol
(“dd” and“ee”) are set to all zeroes, the printer will calculate the
optimum configuration.
Section 4. Programming Reference
SATO CT Series Printers
9001069
A
Page 4-79
