GM47/GM48 INTEGRATOR’S MANUAL
40
LZT 123 7263 R1C
• Keypad, display, microphone, speaker and battery are not part of the
module.
• The SIM card is mounted in your application, external to the
module.
• The System Connector is a 60-pin, standard 0.05in (1.27mm) pitch
type. The pins and their electrical characteristics are described in
“2. System Connector Interface”, page 41.
• Information about the Antenna Connector is found in
“3. Antenna Connector”, page 68.
1.2 Physical Dimensions

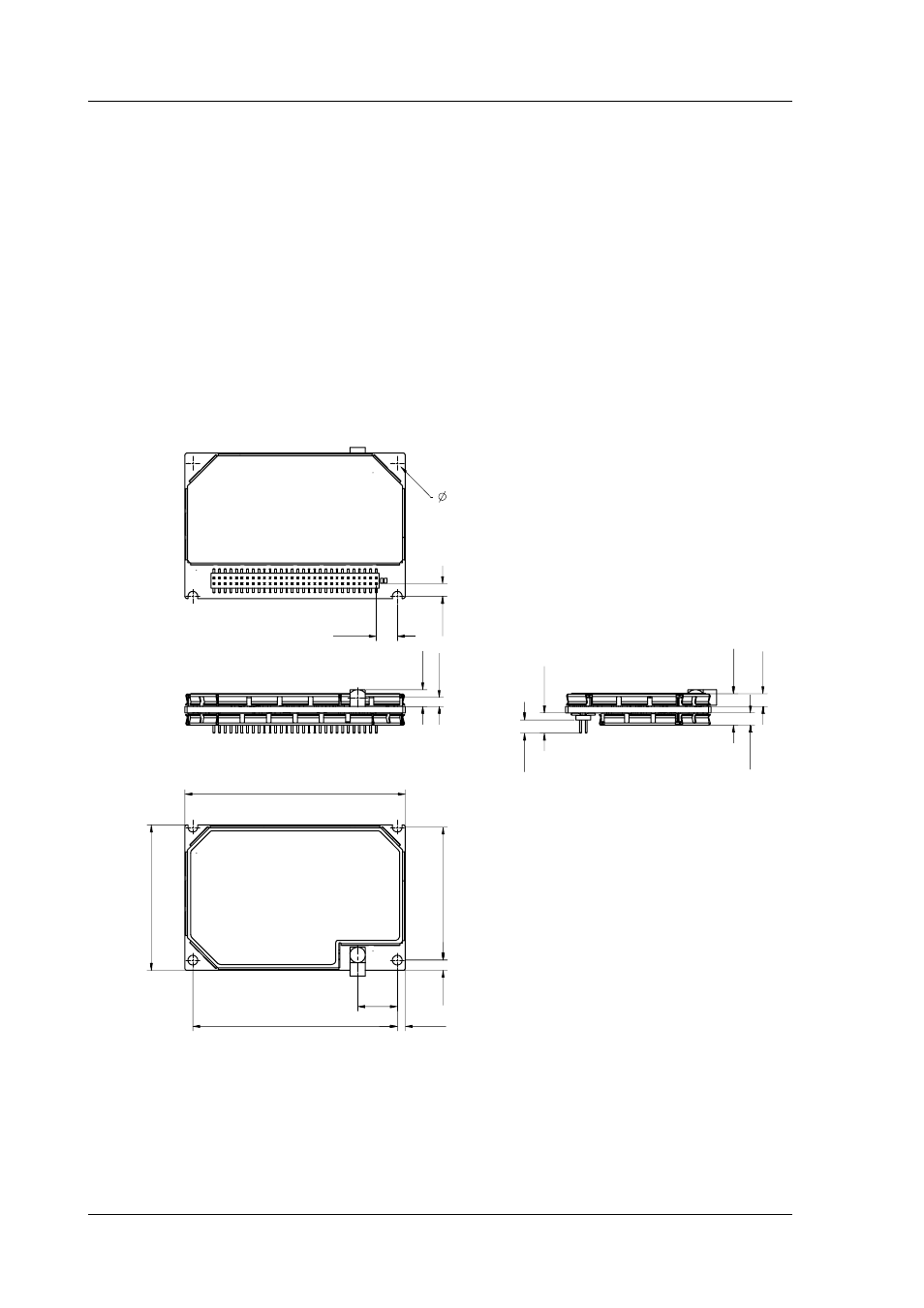

Figure 1.3 Dimensions of the GM47
Measurements are given in millimetres. See also “Technical Data”,
page 75.
4.78
9.00
46.40
50.00
2.20 (4x)
1.80
2.86
2.05 3.80
4.60
3.00
2.80
7.15 2.90
30.20
2.30
33.00
