Network Management Card & Modbus/Jbus 34022321XT indice :AE Page 87/98
Network Management Teleservice Card
APC by Schneider Electric
www.apc.com

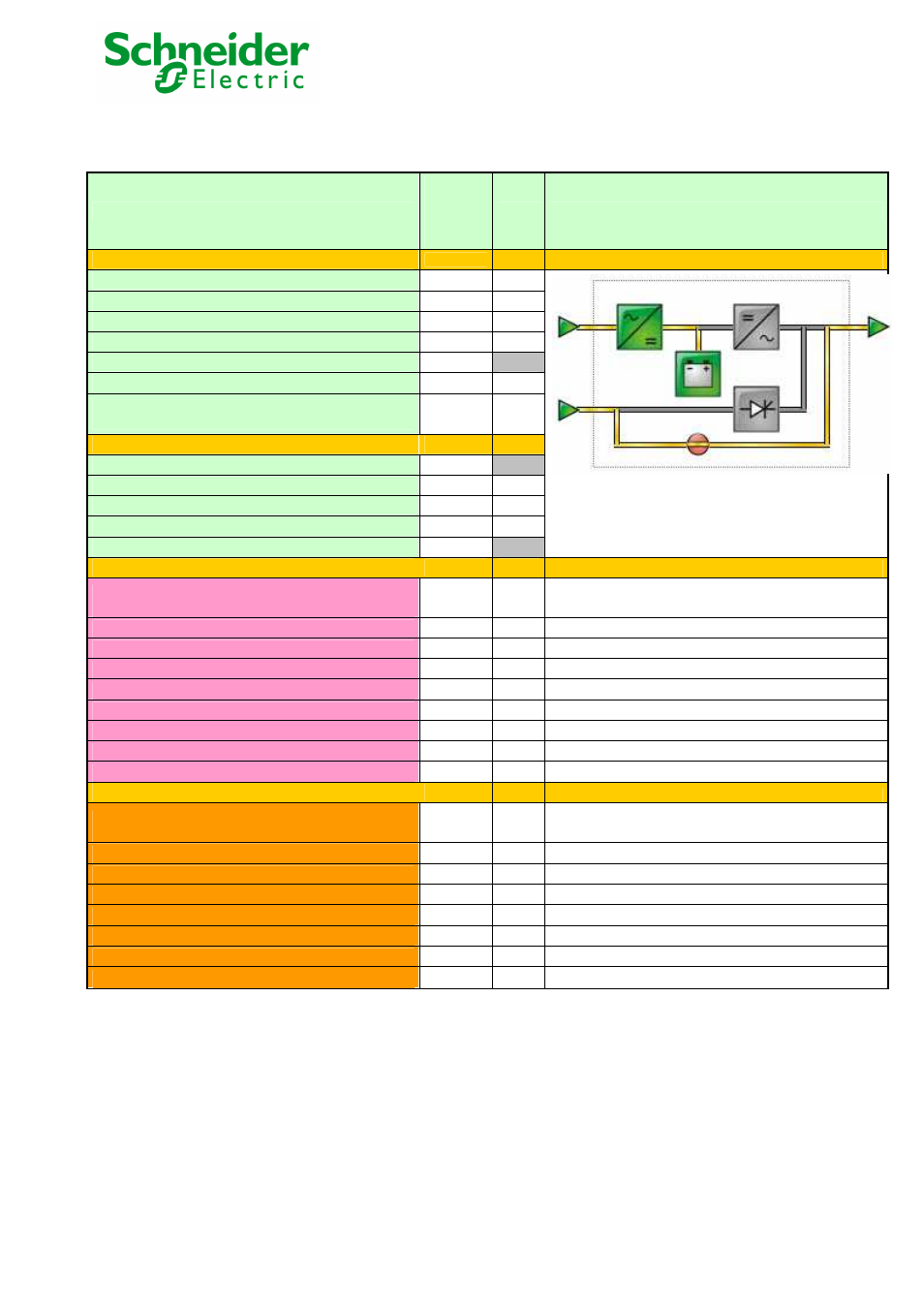

10.3.4.7 UPS on Manual Bypass
Status
Modbus
Address
(word +
bit)
Value
Main UPS status
Load Powered 400 1
Load on inverter 401 0
UPS on battery 404 0
Load on AC Bypass 407 0
UPS in maintenance position 461 1
Battery Charging 493 1
UPS in Power Saving Mode
Nota: Available with NMC fw 808 and G7000 package AM
41B 0
Breaker status
Q5N circuit breaker 47B 0
Q1 circuit breaker 443 1
Q4S circuit breaker 46E 1
QF1 circuit breaker 42F 1
Q3BP circuit breaker 416 1 Q3BP closed + Q5N open
UPS Fault
UPS general alarm - Red Led from UPS HMI
Nota: Available with NMC fw 808 and G7000 package AN
402 1
Load not protected 41A 1
UPS Internal Communication Fault 409 0
Rectifier fault 419 0
Rectifier (PFC) fuse fault 449 0
Battery temperature fault 42A 0
End of battery runtime 406 0
Emergency Power Off 40B 0
Fan Faillure 40E 0
UPS Warning
Orange Led from UPS HMI
Nota: Available with NMC fw 808 and G7000 package AN
41C 0
Overload 40A 0
Low Battery Warning 405 0
Inverter Overload 4C2 0
Static switch overload 465 0
AC Normal Frequency Out Of Tolerance 44B 0
AC Normal Voltage Out Of Tolerance 448 0
AC bypass Out of tolerance 467 0
