Network Management Teleservice Card
APC by Schneider Electric
www.apc.com
Set the SA1 switches to select the four wires configuration with termination:

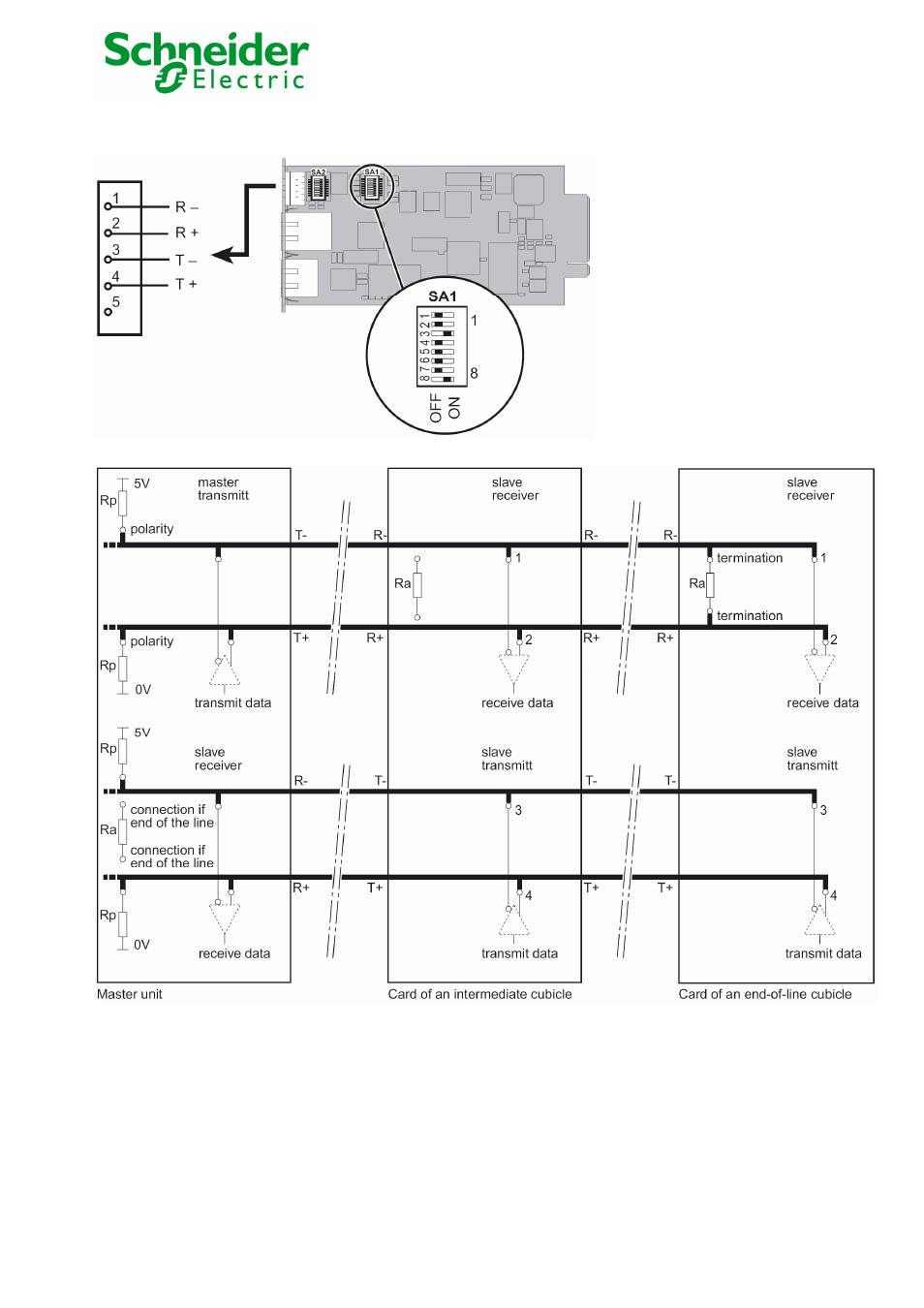

The next figure gives a typical bus structure in the four wires configuration:
This manual is related to the following products:
