Network Management Card & Modbus/Jbus 34022321XT indice :AE Page 22/98
Network Management Teleservice Card
APC by Schneider Electric
www.apc.com
6.2.1.1 "UPS" zone: general information on the UPS.
Indication of the picture and generic name of the UPS range
Computer room: Customised name of your system.
You can change this name on the "System" page.
UPS status icon :
The various icons showing the status of the UPS are:
Normal operation
Alarm present. This icon links directly to the alarm
page.
Loss of communication with the UPS

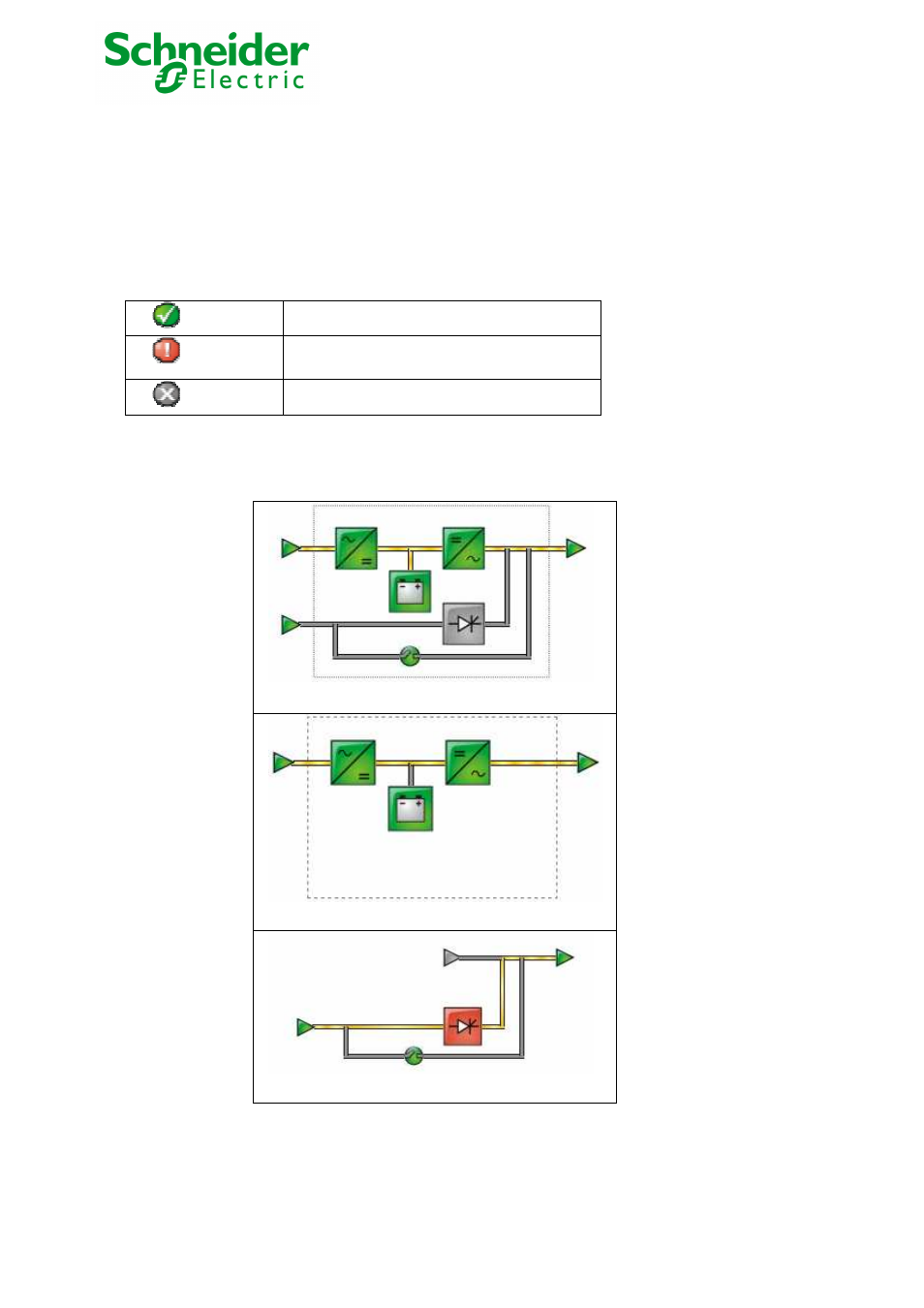

Animated synoptic: An animated synoptic gives a global overview of the UPS current operating mode.
The synoptic drawing depends on the UPS topology. The different drawings are described in the table below.
UPS with automatic and manual bypass
UPS without automatic bypass
SSC Static Switch Cabinet
Note: In case of loss of communication with the UPS, all the elements of the synoptic are grey.
The various elements of the synoptic are the following ones:
