Network Management Card & Modbus/Jbus 34022321XT indice :AE Page 18/98
Network Management Teleservice Card
APC by Schneider Electric
www.apc.com
5 Configuration
5.1 Configure IP parameters
Once the card has started:
Connect one end of the cable (3402226700) to the Service port.
If the environment sensor was previously connected, the card must be restarted in order to access the configuration menu.
Connect the other end of the cable to the COM port (IOIOI) of a PC.
Launch a HyperTerminal™ type emulator with the following configuration:
NMTC INMC
Speed: 38400 Speed: 9600
Data bits: 8 Data bits: 8 toto
Parity: none Parity: none
Stop bits: 1 Stop bits: 1
Flow control: none Flow control: none
"Locally reproduce the characters entered" option: deactivated.

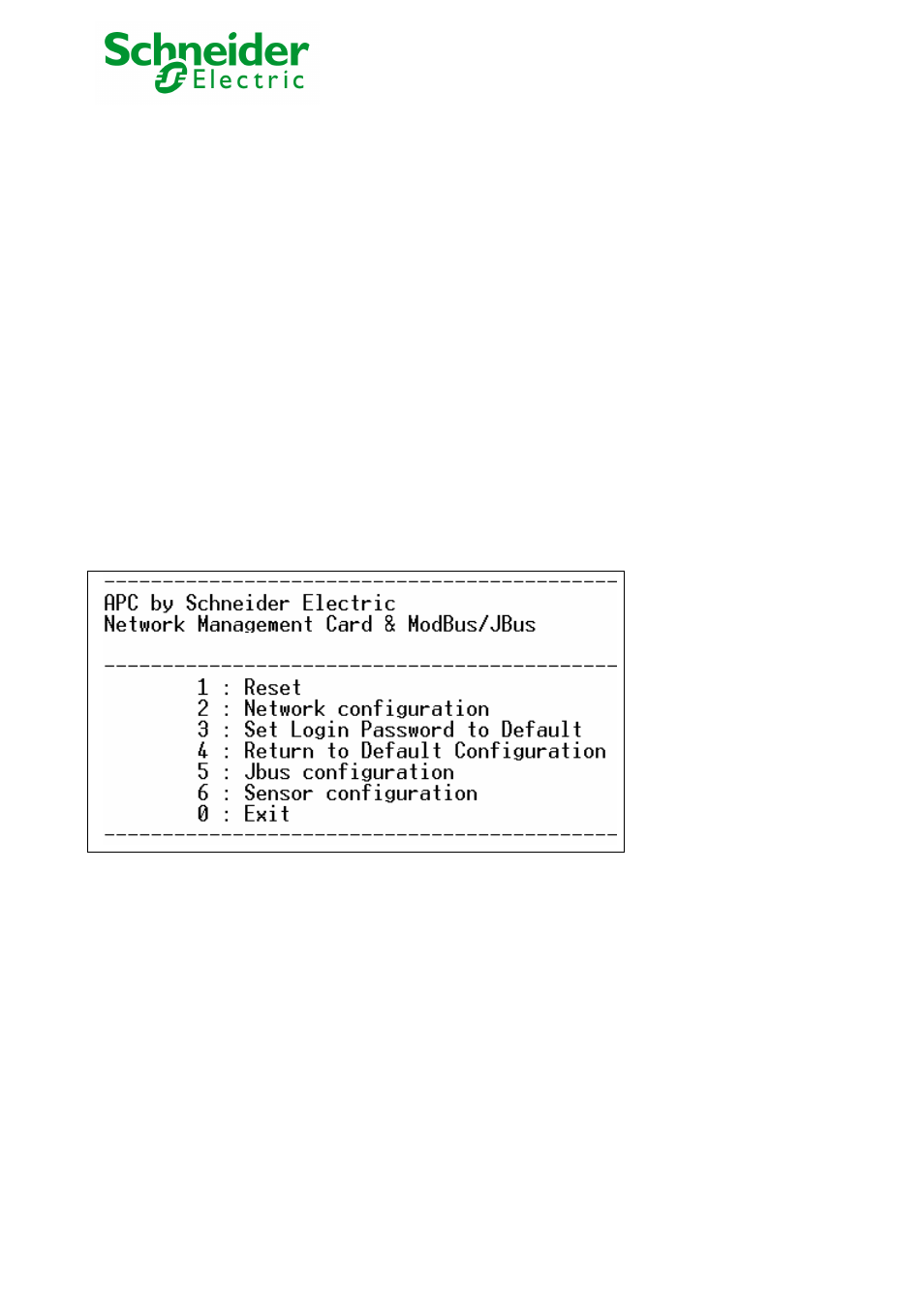

Enter MGEUPS or mgeups. The main menu is displayed:
