Network Management Card & Modbus/Jbus 34022321XT indice :AE Page 69/98
Network Management Teleservice Card
APC by Schneider Electric
www.apc.com

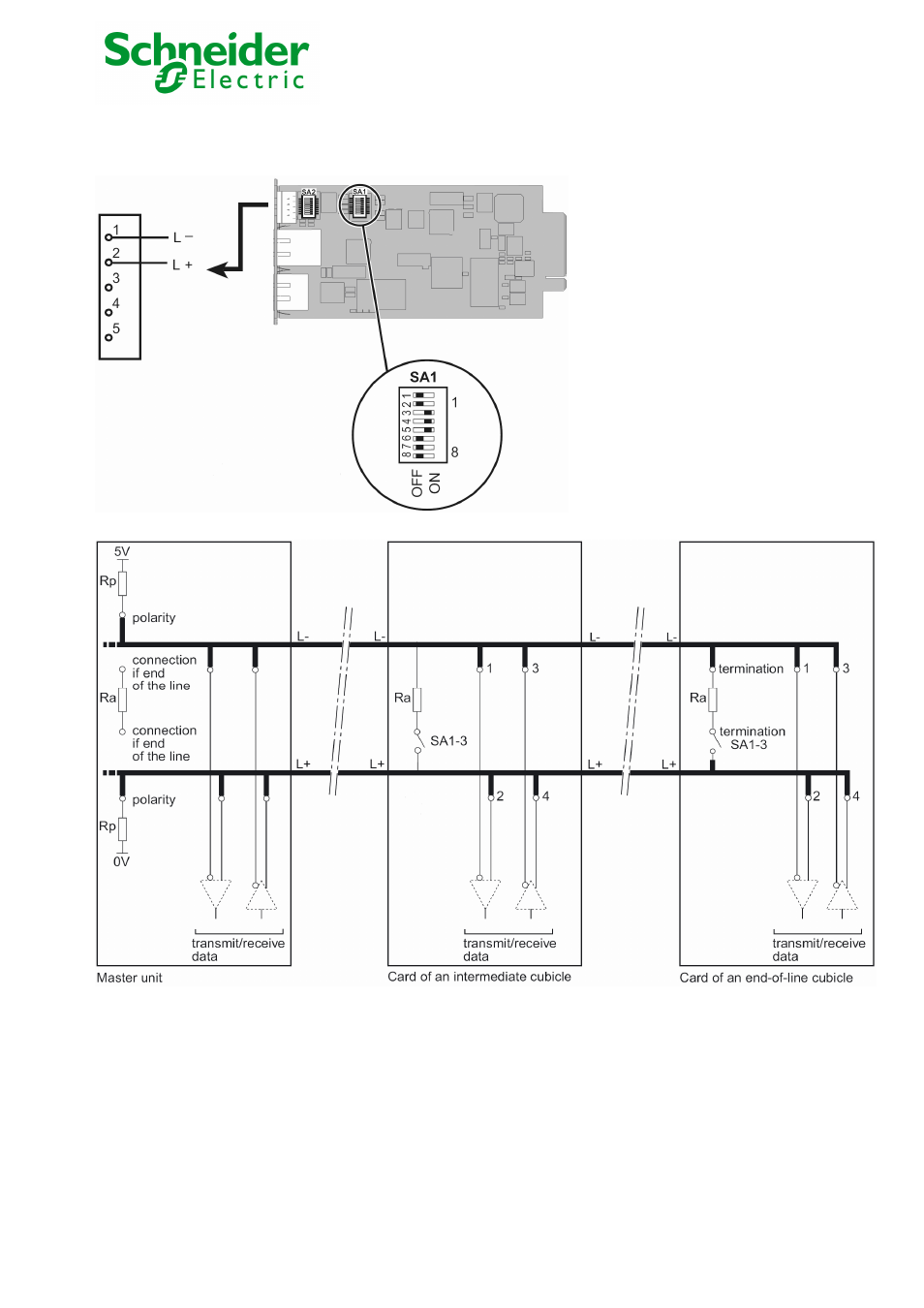

Set the SA1 switches to select the two wires configuration with termination:
The next figure gives a typical bus structure in the two wires configuration:
