Schneider Electric 66123 - Manual (Page 50)

Network Management Card & Modbus/Jbus 34022321XT indice :AE Page 50/98
Network Management Teleservice Card
APC by Schneider Electric
www.apc.com
6.4.7 Firmware upload

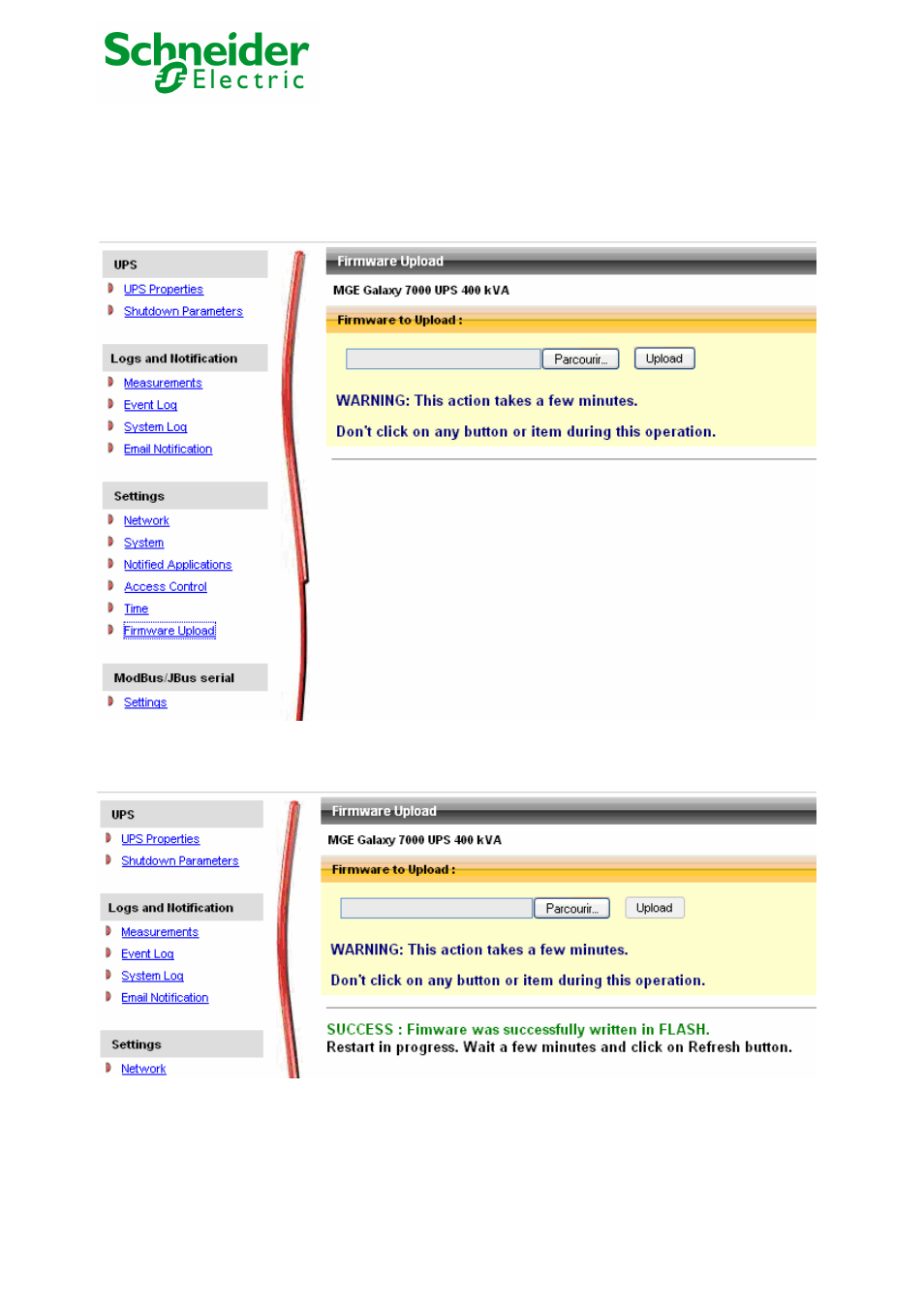

Click on "Firmware Upload" in the menu.
This menu enables a new firmware version to be uploaded
To upload a new version of the card's firmware, select the file to be loaded using the "Browse…" button and click Upload.
Do not interrupt the operation before the card displays the following screen:
