HSSI Connectors
The HSSI I/O module uses a standard 50-pin HSSI connector.
Caution: Do not terminate HSSI connections with SCSI connectors. Although
SCSI connectors look very similar to HSSI connectors, using SCSI connectors on
HSSI connections may lead to data loss.

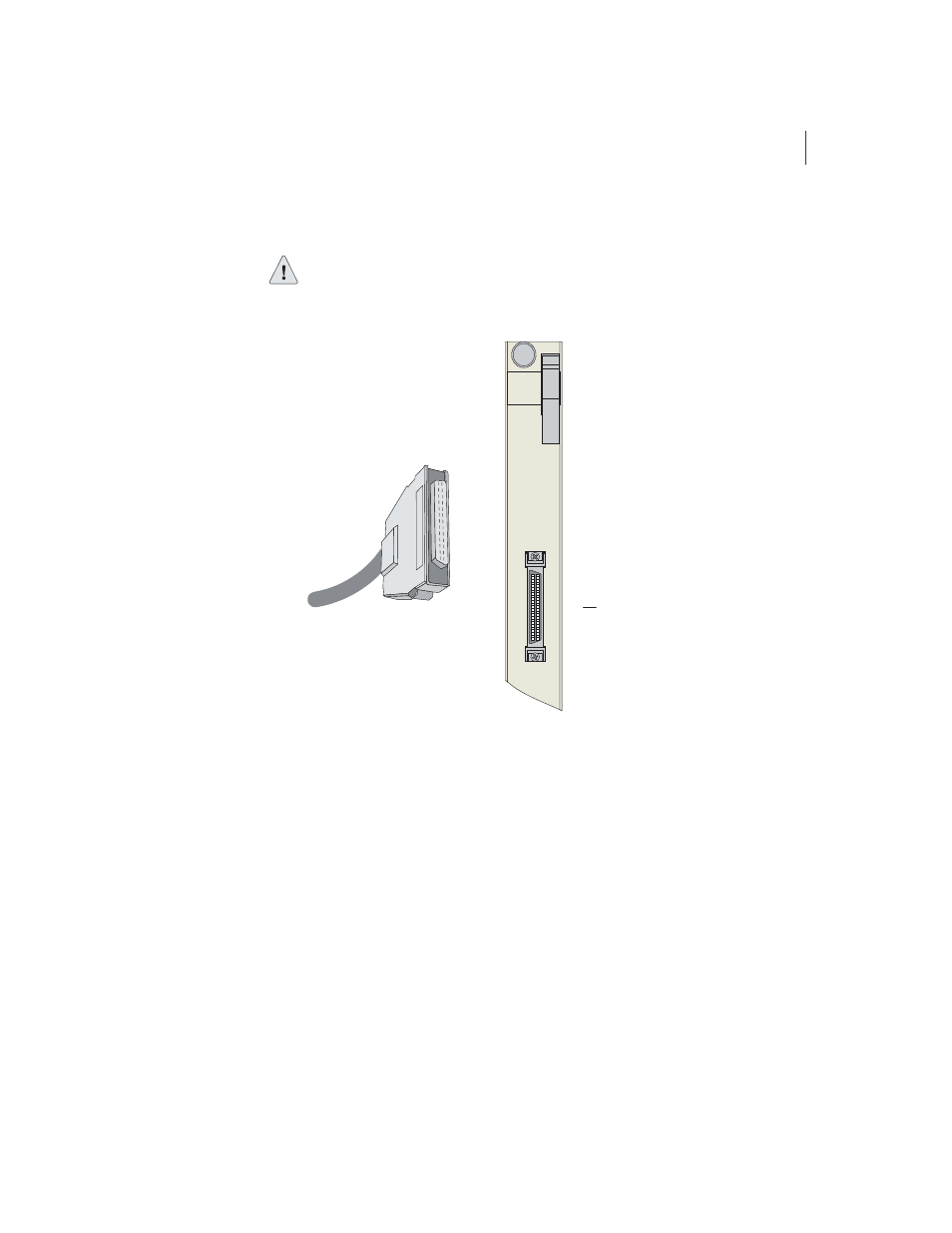

Figure 6-8 HSSI I/O module with 50-pin HSSI connector
HSSI-3
I/O
Port 0
g013756
