Slot Groups for the ERX-1410 Router
A slot group in the ERX-1410 router comprises three adjacent chassis
slots. The groups for the ERX-1410 router consist of the following slots
(
Figure 5-2 ):
• Slot group 1 – slots 0 through 2
• Slot group 2 – slots 3 through 5
• Slot group 3 – slots 8 through 10
• Slot group 4 – slots 11 through 13
Slots 6 and 7 are reserved for the SRP modules.

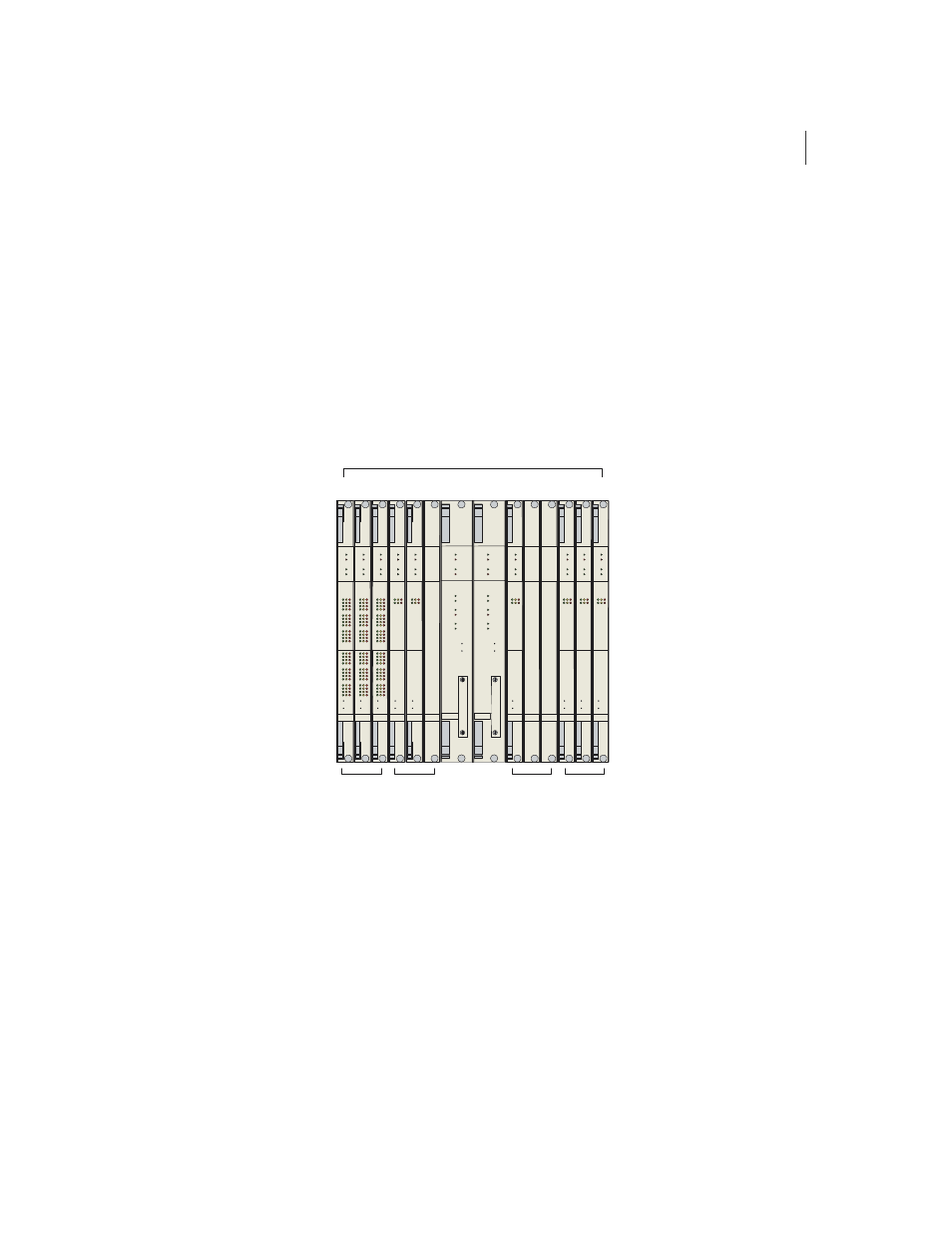

Figure 5-2 ERX-1410 slot groups
SRP SRP CT3 OC3 CT1 OC3 CT1 CT1 CT3 CT3 CT3
Chassis slots
1 2 3 4 0 5 6 7 8 9 10 11 12 13
Slot
group 1
Slot
group 2
Slot
group 3
Slot
group 4
g013743
