CHAPTER 9
Maintaining E-Series Routers 9-16
Installing a Cable-Management Bracket on ERX-7xx Models
A cable-management bracket can be installed to accommodate cables of
different sizes on ERX-7xx models. See
Figure 9-10 .
• For wider X.21/V.35 cables, mount the bracket in the last row of
perforation holes in the chassis so that the bracket allows for maximum
spacing (A).
• For smaller cables, mount the bracket closer to the front of the chassis
(B).
Use two (2) #10 self-tapping screws to secure the bracket.

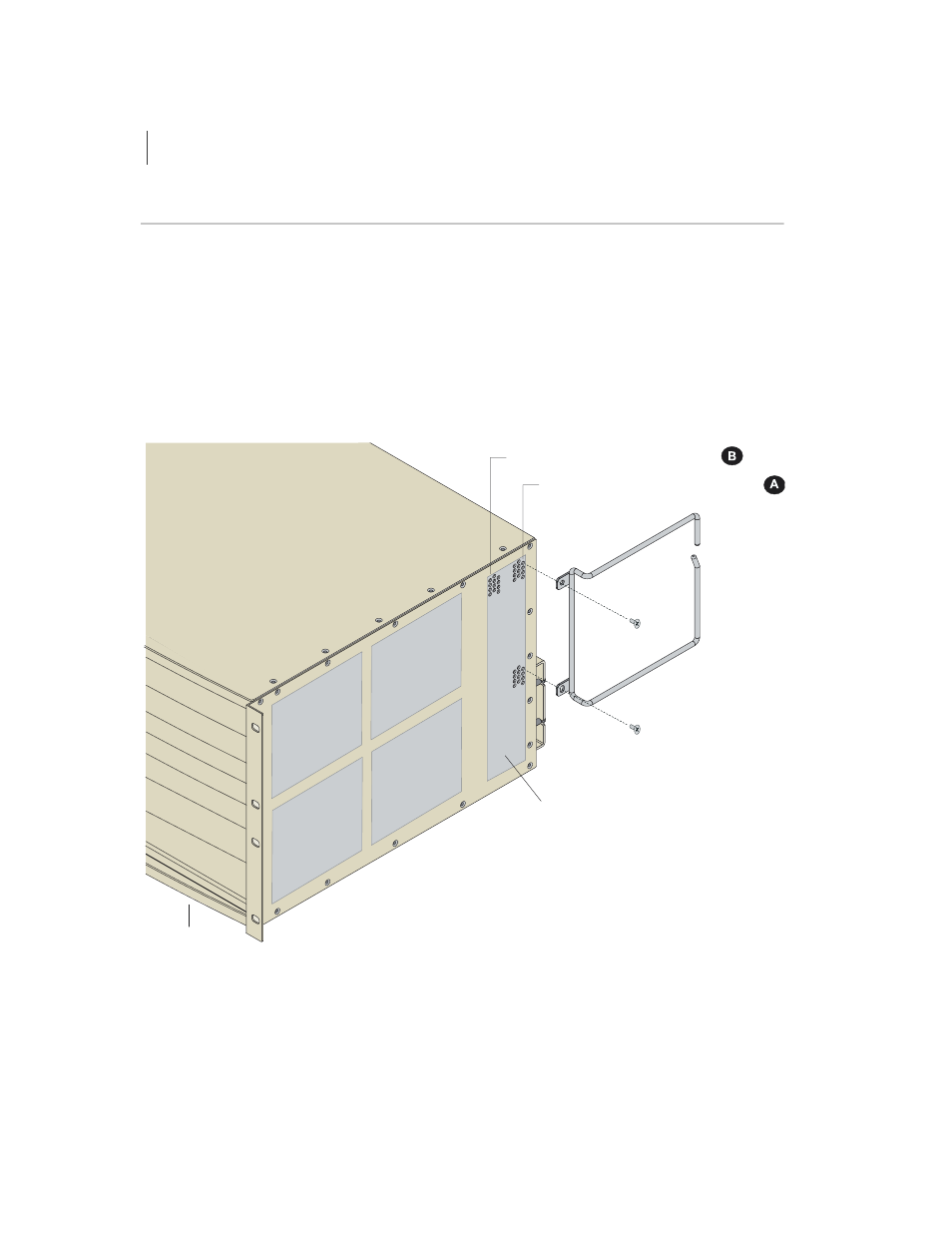

Figure 9-10 Attaching a cable management bracket
Perforated area
Front of
ERX-7xx model
Mount here for wider X.21/V.35 cables
Mount in this area for smaller cables
g013767
