VIS-CAM System
76
Appendix B: J-Panel Functional & Connector Description

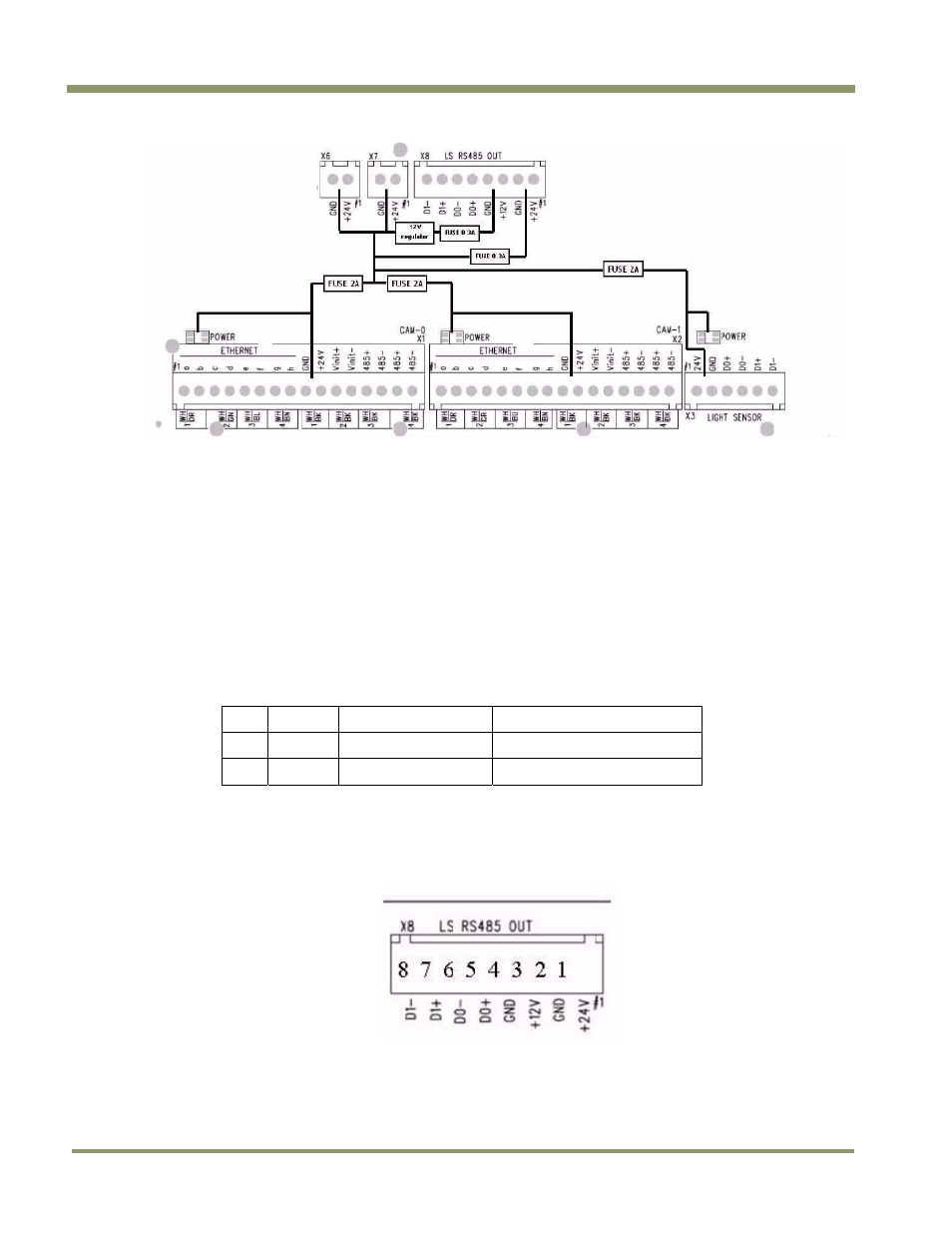

Figure 75. Principle in the power distribution.
6.7.2 Connector specification
Connector type:
2 pole WAGO pluggable terminal block
Connector on board:
WAGO 734-232
Cable part:
WAGO 734-202
6.7.3 Connector signal specifications
24V DC power input. The two connectors are connected in parallel (unfused).
Maximum total current to X1, X2, X3 and X8: 6,3 A (fused value)
6.7.4 Connector physical Interface
Table 29
Physical connection for pins.
Pin Signal Description
Connection to
1 +24V +24V
DC
24V DC power supply
2 GND +24V
return
24V DC power supply
6.8 X8: RS485 signal to Ethernet interface
Figure 76. RS485 to Ethernet
6.8.1 Functionality
Interface to RS485-to-Ethernet converter. The signals come from the Light Sensor connection (X3).
Two power outputs for supplying the converter are available.
