Appendix A: Camera Functional & Connector Description

55

VIS-CAM System

5.3.9 (a) Connector physical Interface

Table 15

Physical interface pinouts.

Pin Signal Description

Connection

to

1 Gnd Light/Flash

Gnd

Light/Flash

ground (negative power terminal)

2

Out

Light control/Strobe out

Light control input or strobe input on flash unit

3 Stat Light/Strobe

status

Light/Flash Status output from unit

4

FPWR

Light/Flash power

Power from Light/Flash unit to output circuit on I/O Board

The Gnd signal on pin 1 is connected to the Gnd signal on X5 (pin 2) internally on the board.

5.3.10 Typical Wiring Diagram

Figure 52 shows how to connect to the 2nd DC Flash unit having the I/O Board electronics powered

from the Flash Power Supply.

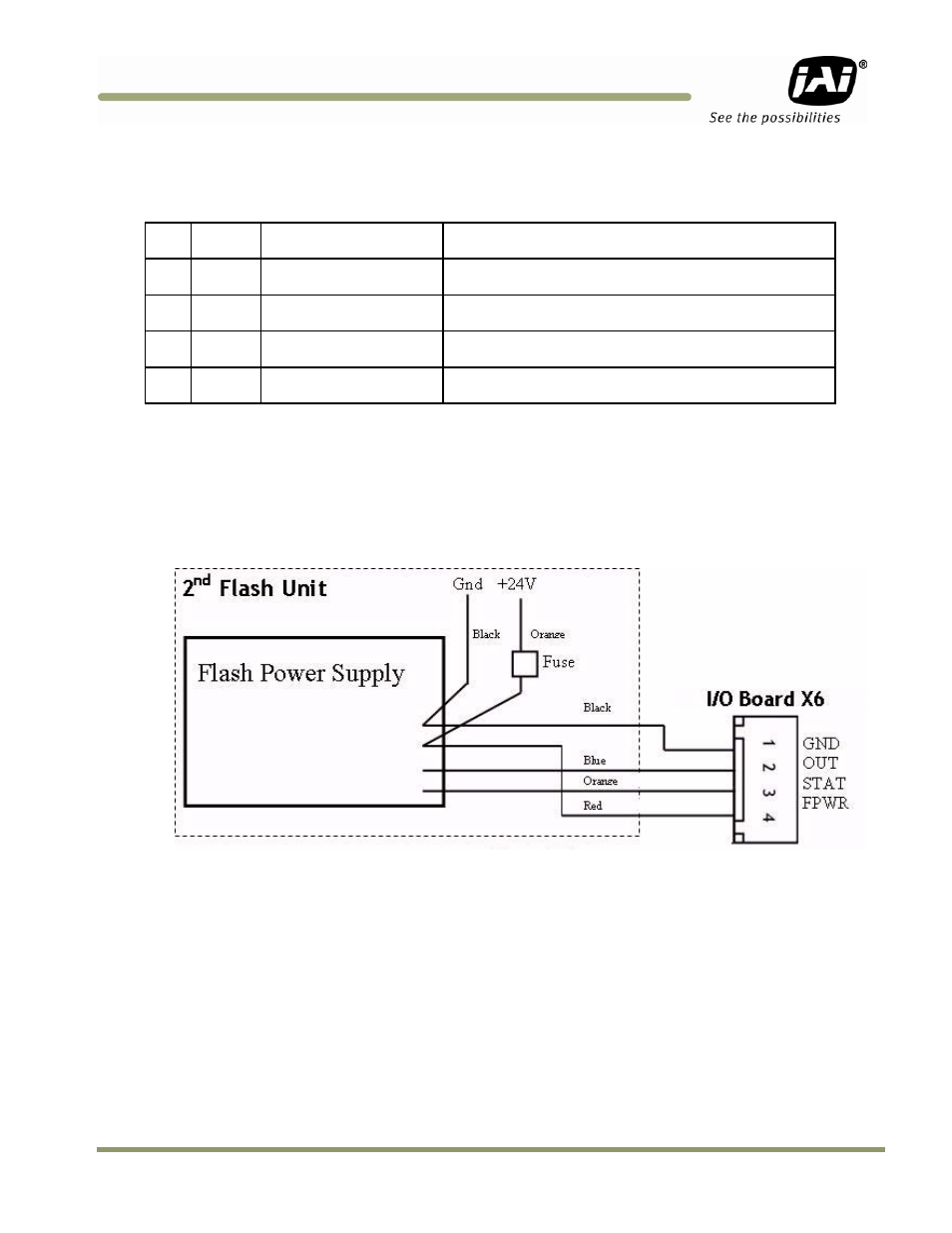

Figure 52. Wiring a second DC flash from the flash power supply.
