Installing the Vehicle Imaging Subsystem

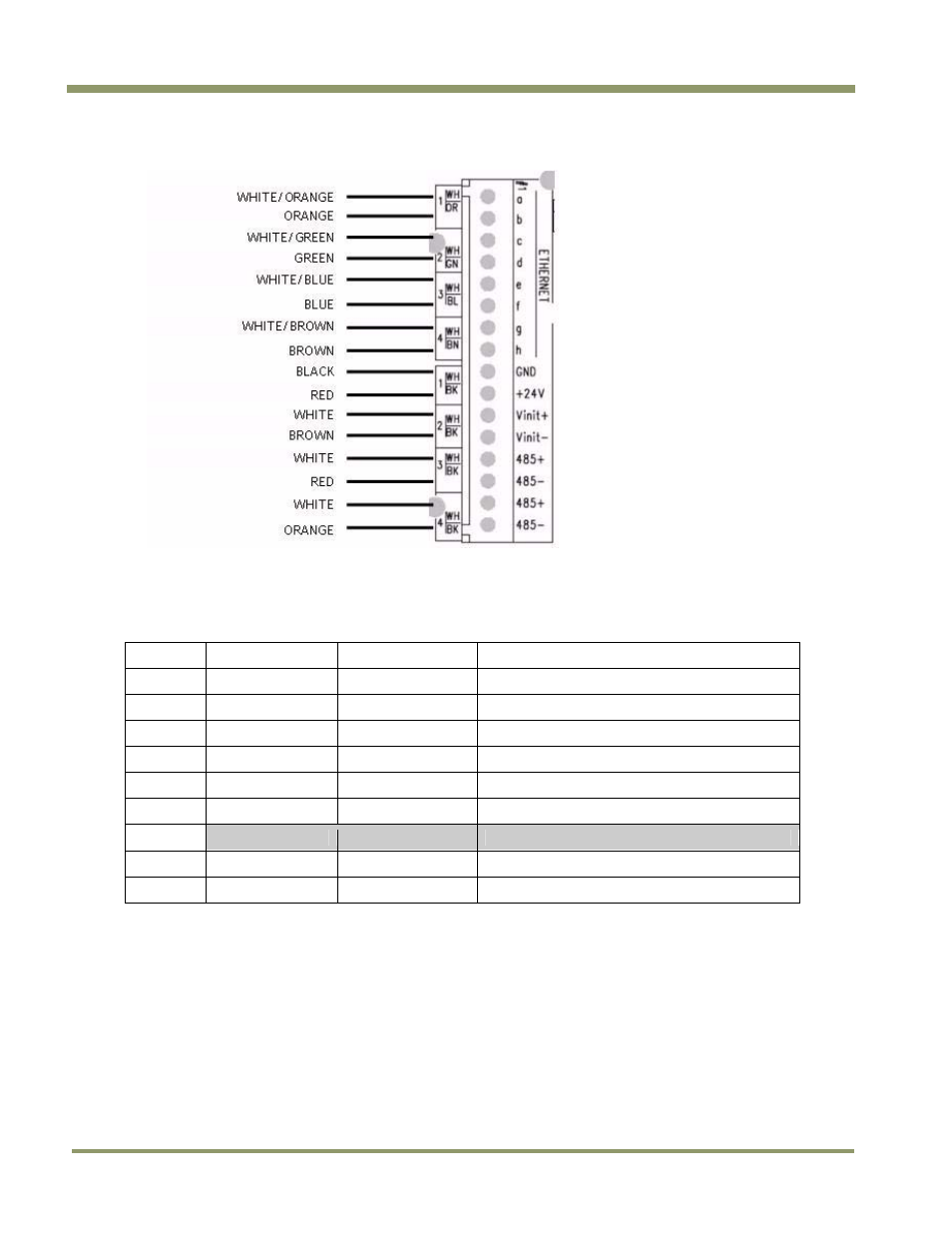

Figure 20. VIS CAM connections.
3.3.2 X3, X7 Traffic Light Sensor
The Traffic Light Sensor TLS-300 connection to the J-Panel is shown in Table 4 and Figure 21.
Table 4
TLS 300 to J-Panel connections.
X3 Pin X
Signal
Description
Connection to Light Sensor Cable wire color
1
+24V dc
Power output
Yellow
2 Gnd
Power
return
White
3
D0+
RS485 databus D0+
White/orange
4
D0-
RS485 databus D0-
Orange
5
D1+
RS485 databus D1+
White/brown
6
D1-
RS485 databus D1-
Brown
X7 Pin X
1
Heater +24V dc
Power output
Red/blue and Blue/red
2
Heater gnd
Power return
White/green and Green
