VIS-CAM System
56
Appendix A: Camera Functional & Connector Description

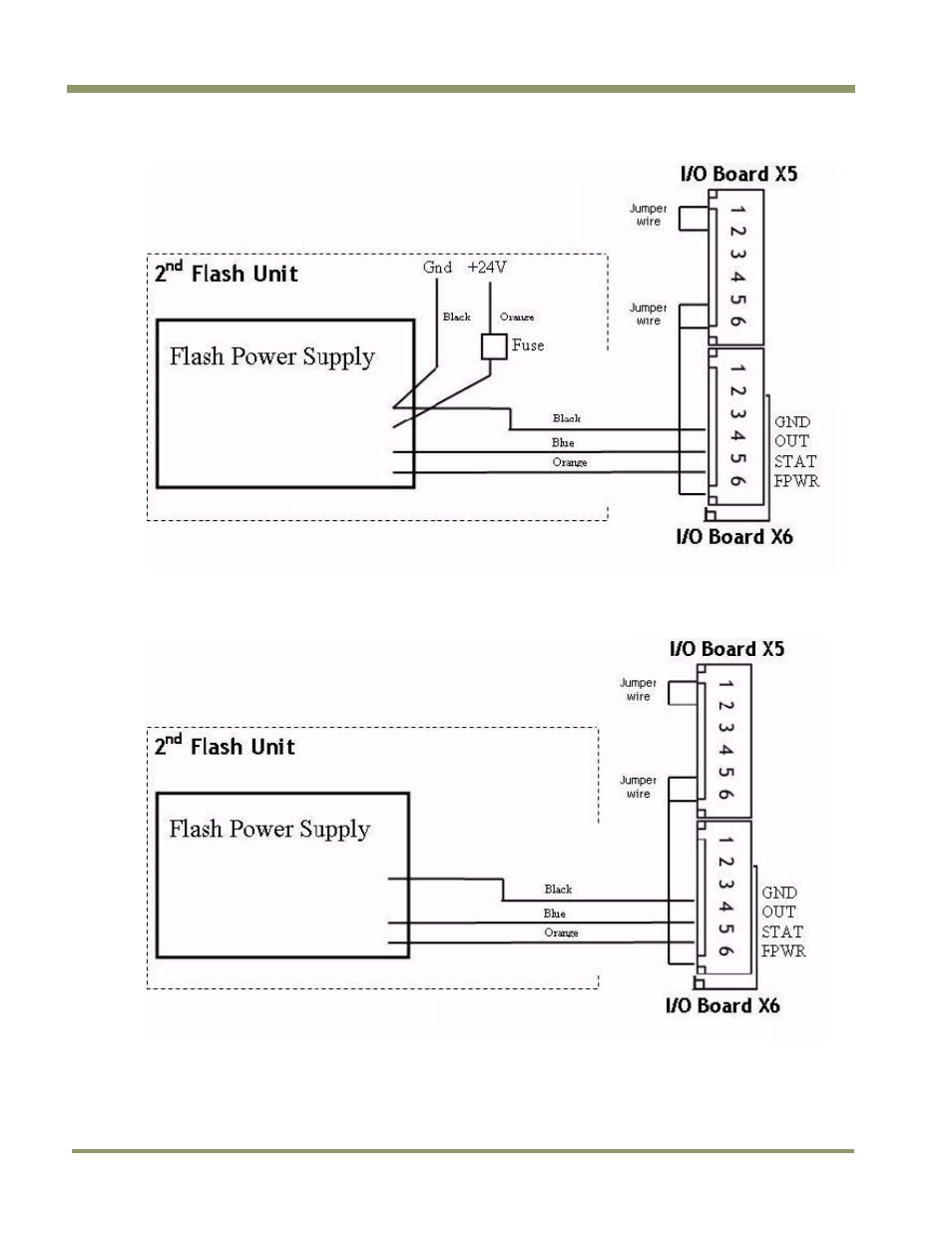

Figure 53. Connecting to a 2nd DC Flash unit with the I/O Board electronics internally
powered..
Figure 54 shows how to connect to the 2nd AC Flash unit. Flash Mains power not shown.
Figure 54. Connecting the second AC flash.
