Installing the Vehicle Imaging Subsystem
31
VIS-CAM System

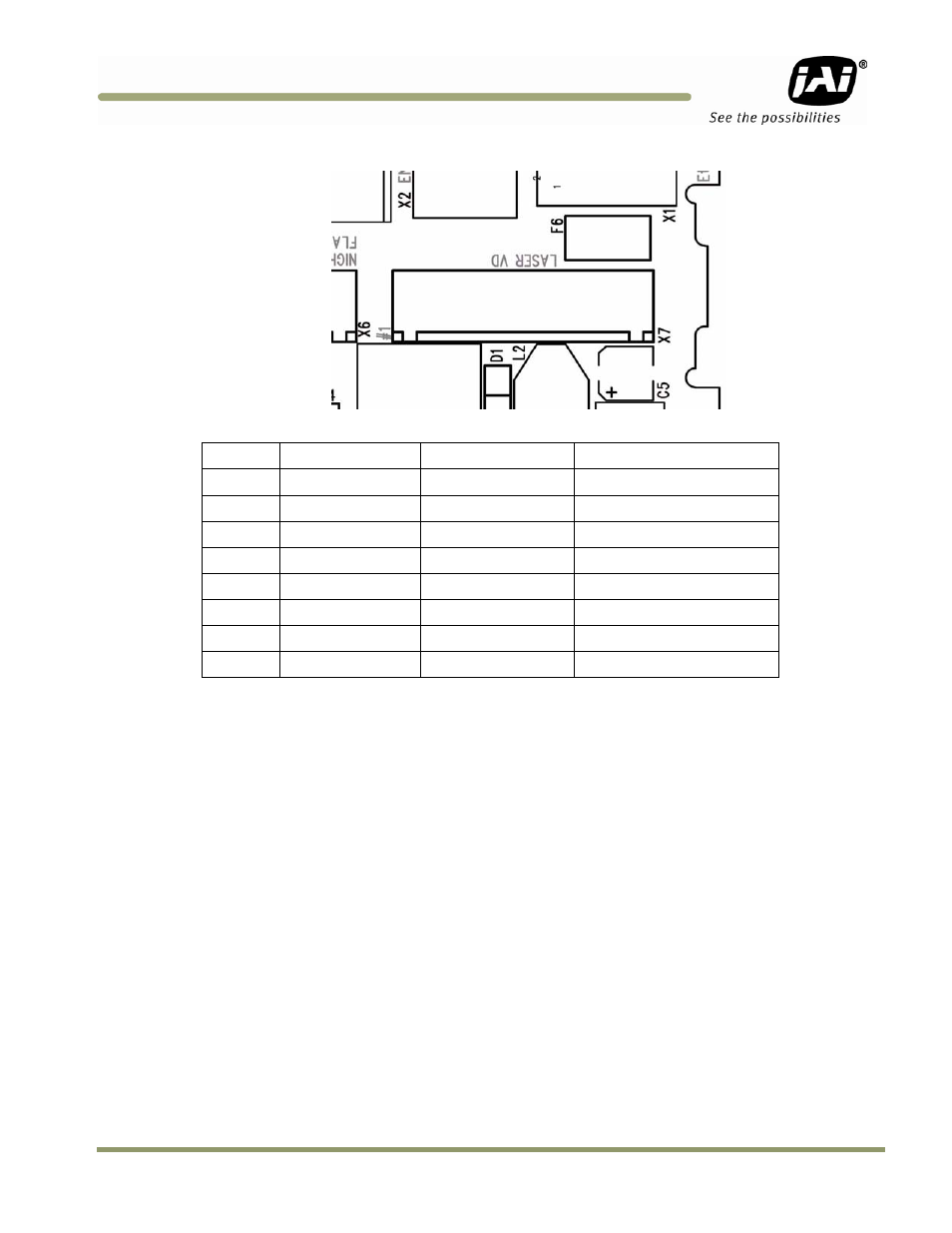

Figure 29. Connection for LVD to VIS CAM 400.
Table 11
Wiring for LVD to VIS CAM 400.
X7 Pin #
Signal
Description
Connection to
1
24V (Fused 0.5A)
Power to laser
Laser power input
2 Gnd
Power
gnd
Laser ground
3
Trigger
Trigger from laser
Trigger out on laser
4
RS485-
Transmit to laser
Receive input on laser
5
RS485+
Receive from laser
Transmit output on laser
6 Gnd
Communication
gnd
Communication gnd on laser
7 nc
No
connection
-
-
8 nc
No
connection
-
The cable must be shielded and the shield connected to the metal at the cable entry in the camera
house.
The switch S3 and/or S5 on the J-panel must be in position “positive going” (pushed towards X1/X2)
to enable the laser trigger input on the IO Board.
