Installing the Vehicle Imaging Subsystem 21
VIS-CAM System

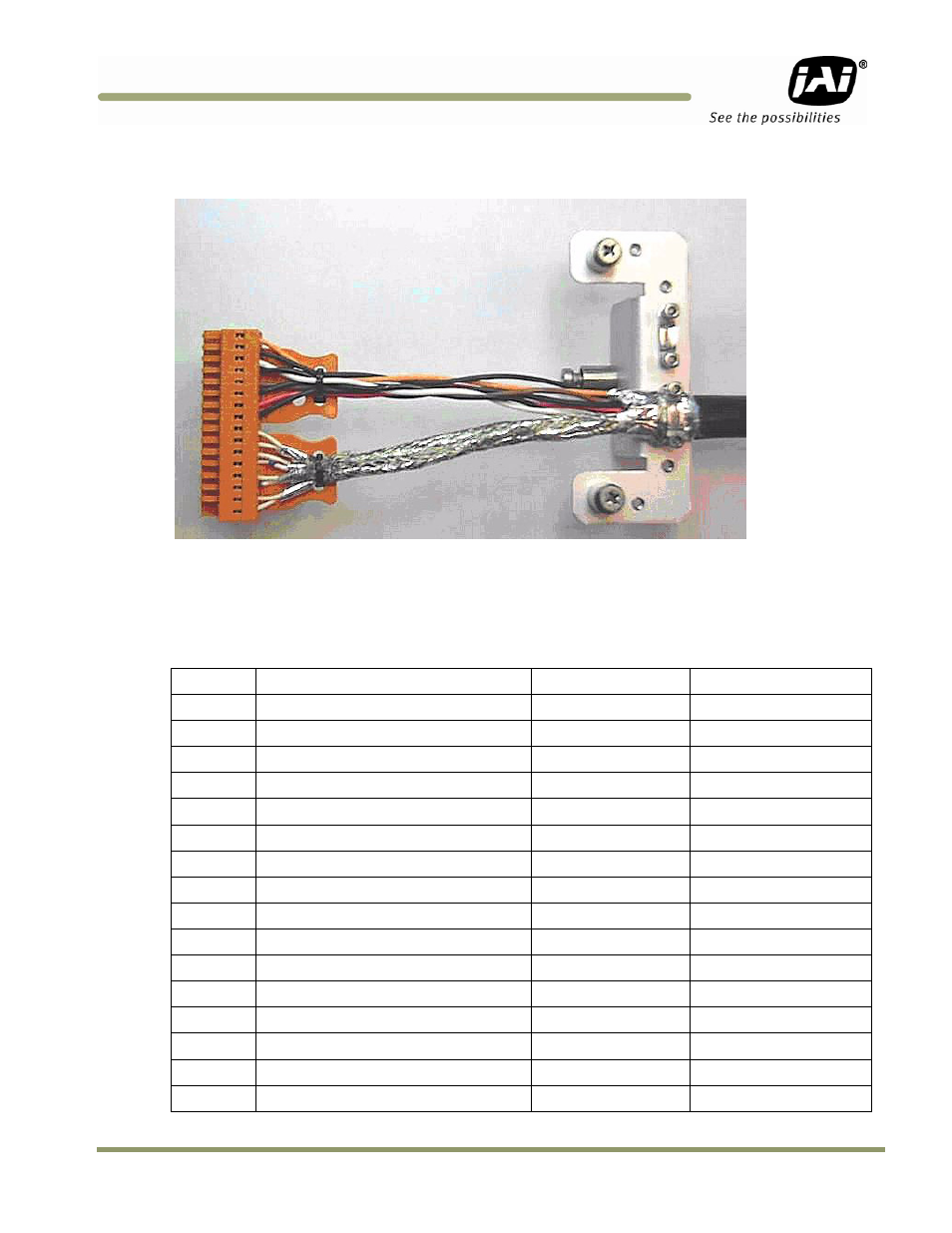

Figure 17. Cable final wiring.
7. The wires are inserted into X4 as shown in Table 2 and Figure 18. A mounting tool for releasing the
spring enabling insertion of the wire is enclosed together with the connectors. (Mounting the wires
can be eased by separating the terminal block in the middle – just “break” it into two blocks of
eight terminals – and then re-join it when the wires are mounted)
Table 2 Electrical wiring for the VIS CAM installation.
X4 Pin # Wire Color Signal Remarks
1 White/orange in Cat5e/6 cable Ethernet A+
2 Orange in Cat5e/6 cable Ethernet A-
3 White/green in Cat5e/6 cable Ethernet B+
4 Green in Cat5e/6 cable Ethernet B-
5 White/blue in Cat5e/6 cable Ethernet C+ not used with VIS CAM
6 Blue in Cat5e/6 cable Ethernet C- not used with VIS CAM
7 White/brown in Cat5e/6 cable Ethernet D+ not used with VIS CAM
8 Brown in Cat5e/6 cable Ethernet D- not used with VIS CAM
9 Black Gnd
10 Red +24V dc
11 Black Vinit+ Trigger signal
12 Pink Vinit- Trigger signal
13 Black RS485D+ Lane Controller
14 Brown RS485D- Lane Controller
15 Black RS485D+ Lane Controller
16 Orange RS485D- Lane Controller
