5.5.4 Connector physical Interface
Table 16 Connector table
Pin Signal Description Connection to
1 24V (Fused 0.5A) Power to laser Laser power input
2 Tnd Power gnd Laser groundd
3 Trigger Trigger from laser Trigger out on laser
4 RS485- Communication interface RS-485- on laser
5 RS485+ Communication interface RS-485+ on laser
6 Gnd Communication gnd Communication gnd on laser
7 NC No connection --
8 NC No connection --
5.6 X1, X3: I/O Board Ethernet Test Connectors

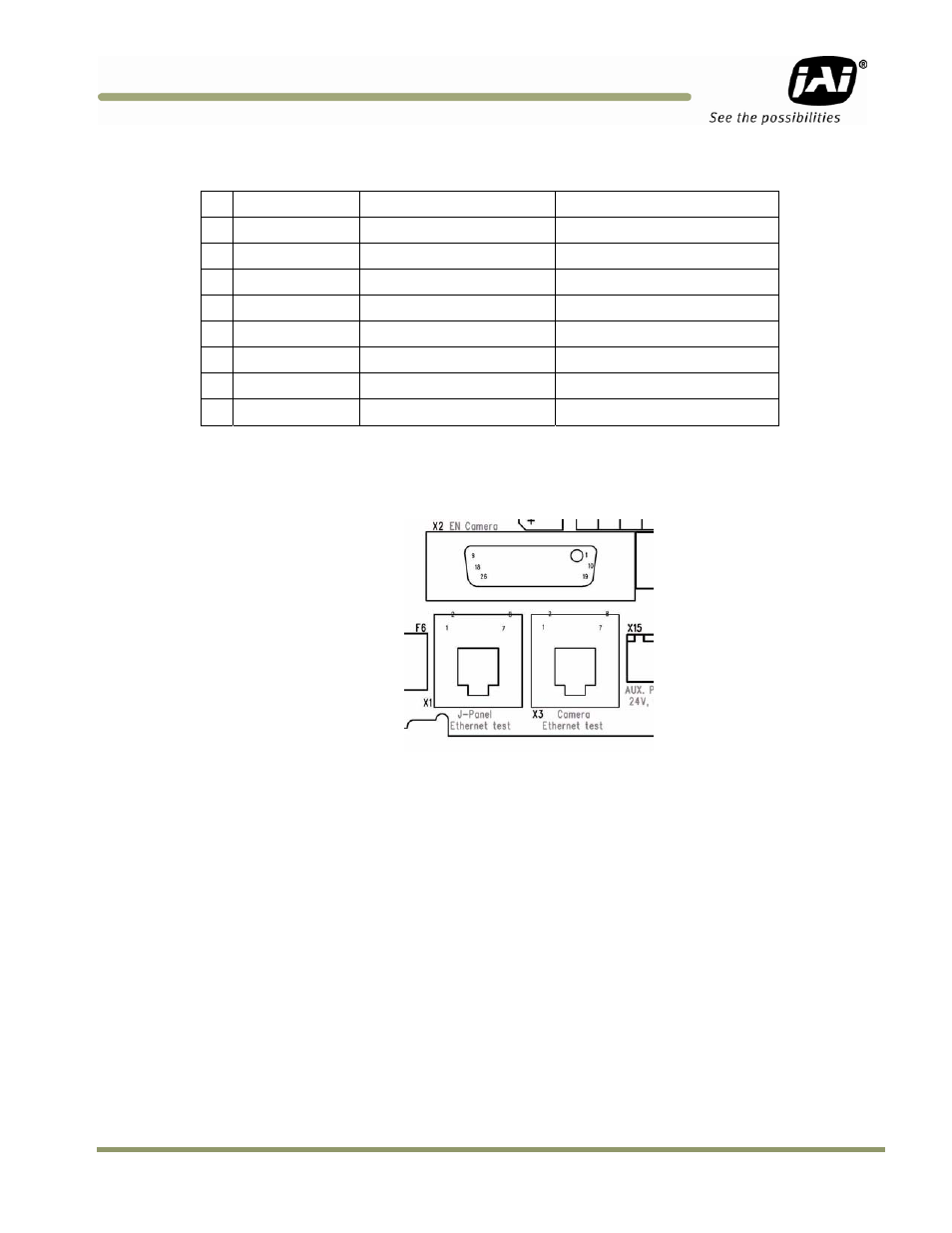

Figure 59. Ethernet test connectors.
5.6.1 Functionality
Connection to Ethernet switch for test purposes. The connectors have integral switches that
disconnect the signal path from the camera to the X2 connector when plugs are inserted and it is
therefore important always to insert plugs in both connectors when testing.
5.6.2 Connector specification
Connector types: 8 pole RJ45 with integral switches
Connector on board: Kinsun ST3009F-880
Cable part: Standard RJ45 plug
5.6.3 Connector signal specifications
Standard Ethernet signals.
