Installing the Vehicle Imaging Subsystem

25

VIS-CAM System

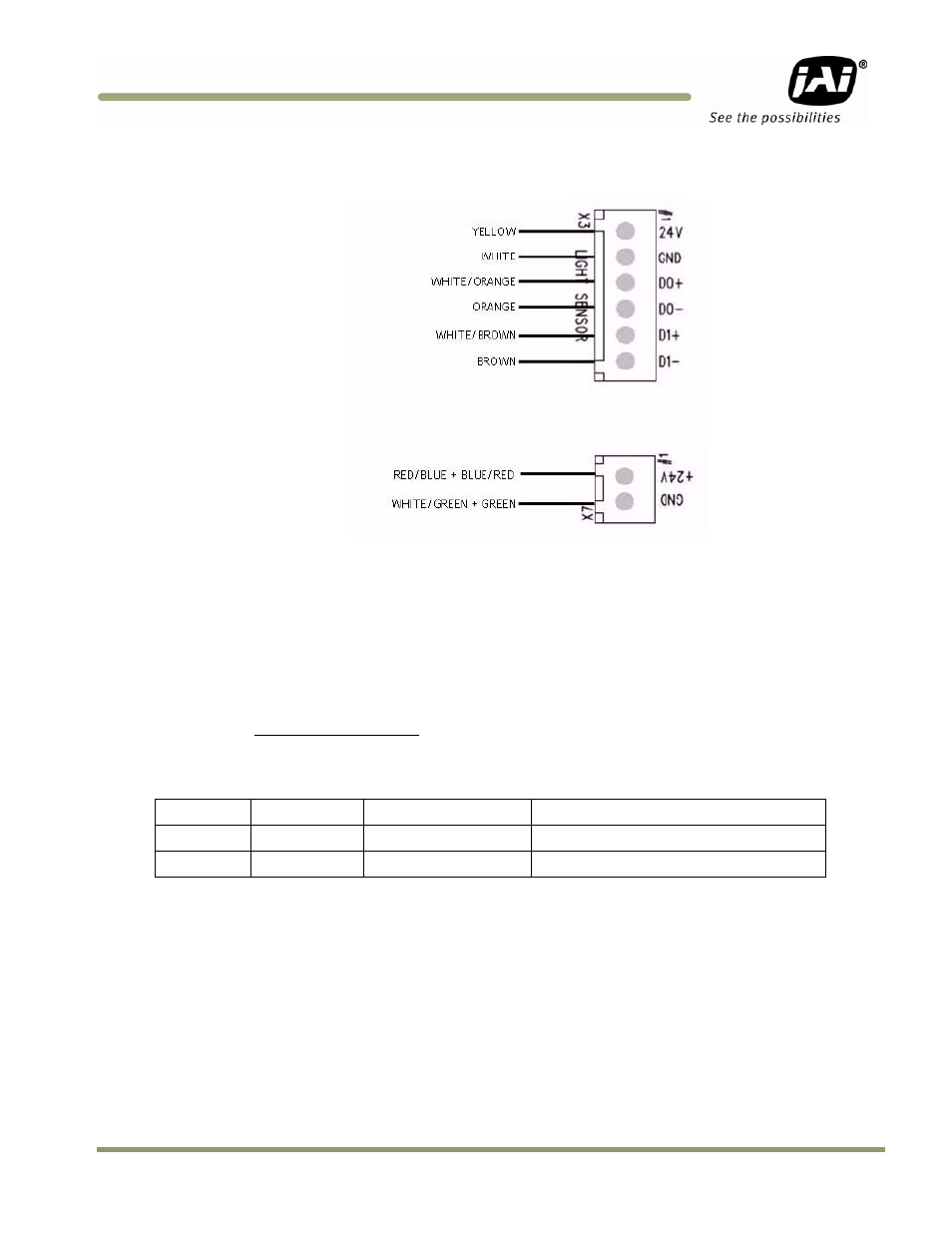

Figure 21. TLS 300 to J-Panel wiring.

3.3.3 X6 Power Input Connector

The Power Input connection to the J-Panel is shown in Table 5 and Figure 22.

The maximum power to a J-Panel is:

Camera #0

2.0A

Camera #1

2.0A

Traffic Light Sensor

2.0A

RS485-to-Ethernet conv 0.3A

Total 6.3A

Table 5

Power input to the J-Panel

X6 Pin #

Signal

Description

Connection to

1 +24V +24V

dc

24V DC power supply + output

2 GND

+24V return

24V DC power supply return
