Appendix A: Camera Functional & Connector Description

53

VIS-CAM System

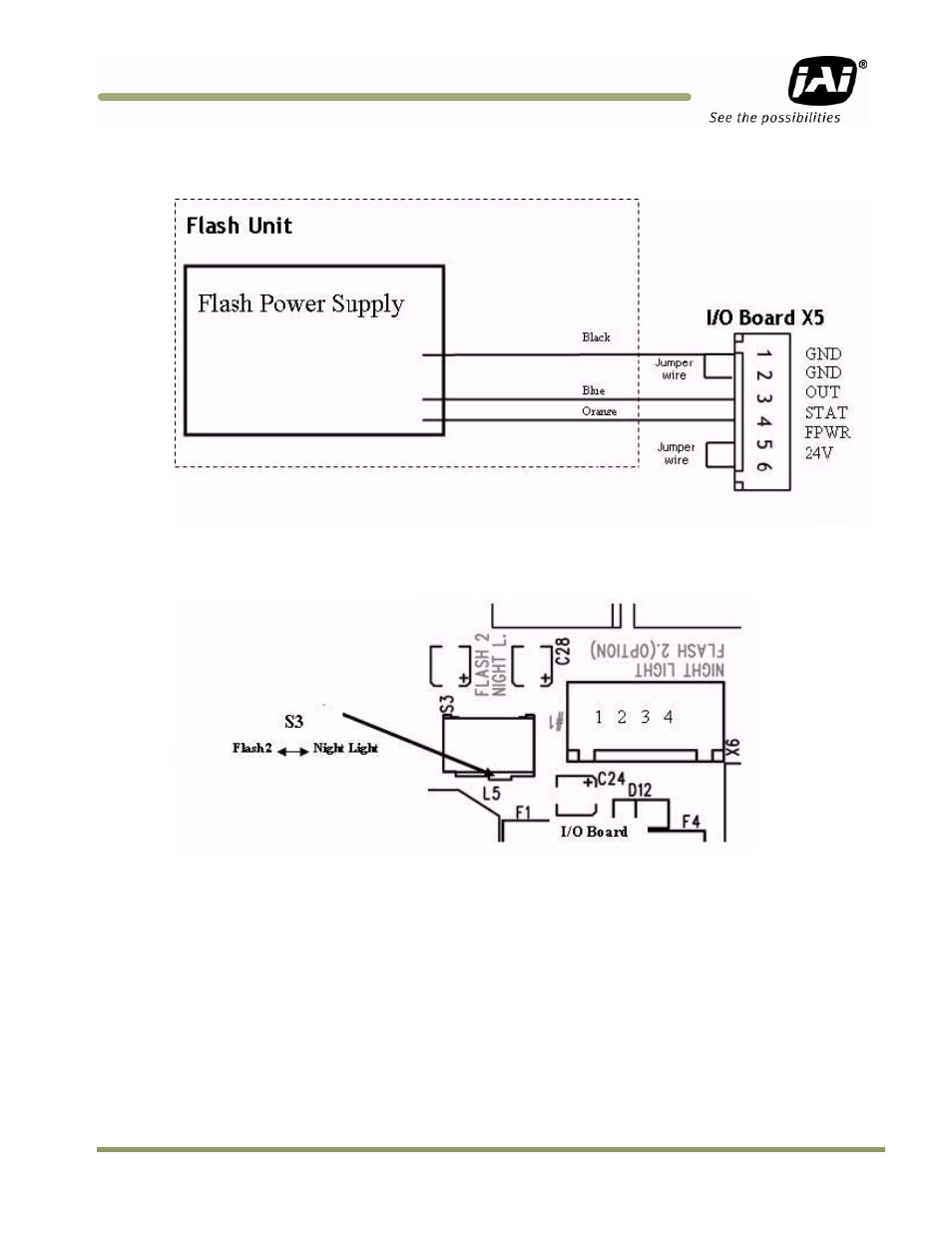

Figure 49. AC flash unit connection.

5.3.6 X6: I/O Board Night Light/2nd Flash Connection
Figure 50. Second flash connection.

5.3.7 Functionality

Output to Night Light or second Flash unit.

When switch S3 is positioned as shown in Figure 50 (to the right), X6 outputs the night light control
signal. When S3 is pushed to the left, X6 outputs the signal for a second flash unit. In this mode the

strobe signal is fed alternately to X5 and X6.

The output is galvanically isolated using an optocoupler. The isolated part of the electronics on the

board is powered from the Night Light or Flash unit. If no power is available from the unit’s power,
it can be taken from X5.
