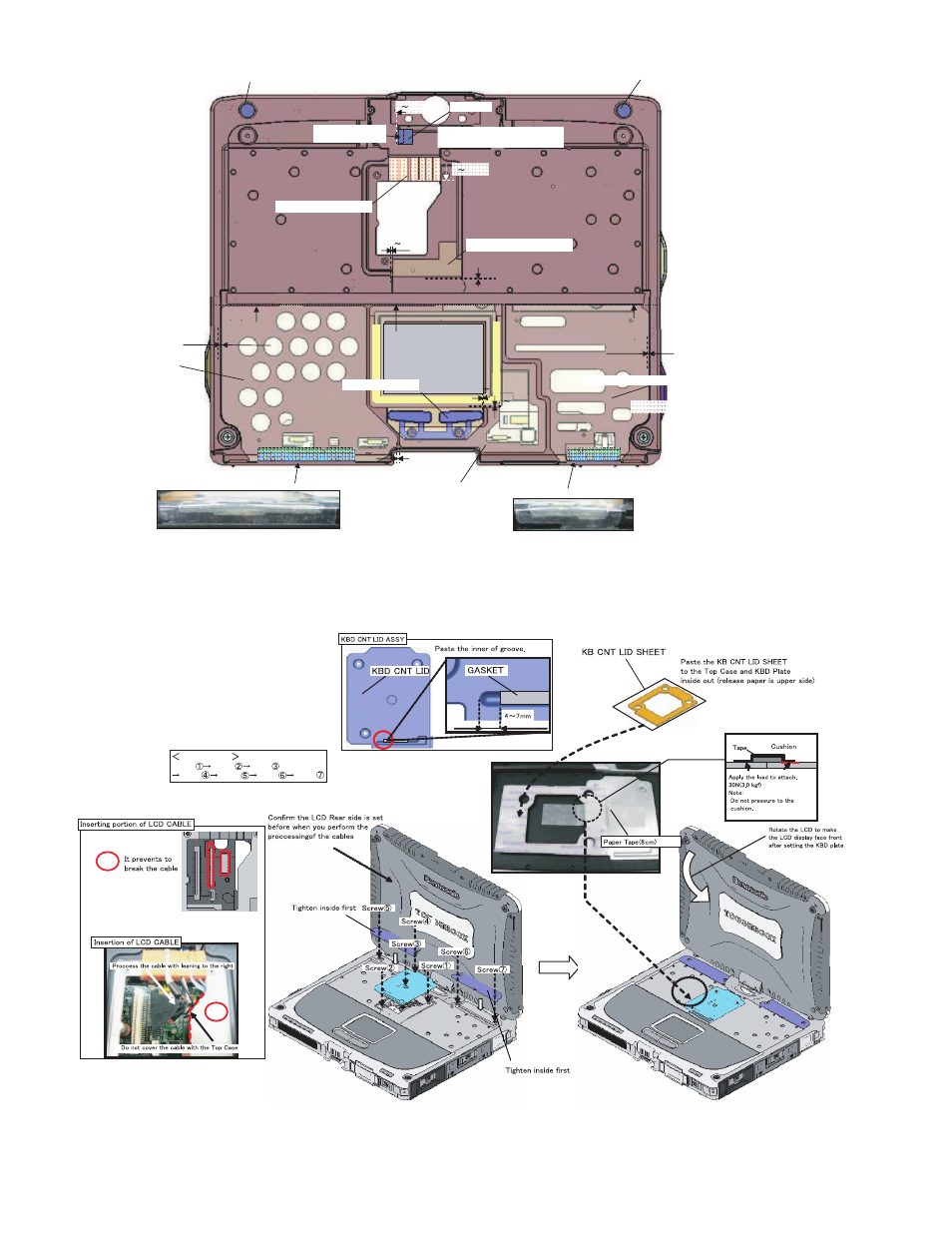

■ Putting of the Sheet
■ Cautions for Setting the Keyboard
LCD Cushion Sheet
LCD Cushion Sheet
KB CNT Hole Cushion
Gasket E
KBD Waterproof Sheet C
Palmrest Waterproof Sheet L
TP Tape
Palmrest Waterproof Sheet R
Click Button Plate
0 0.5mm
0 0.5mm
0 0.5mm
Because the sheets described on this page are waterproof sheets,
the whole parts should be put pressure after attaching.
(Especially, put pressure around the sheets.)
*Apply the load to attach.
30 to 40N (3.0 to 4.0Kgf)
Avoid running over.
0.5 to 1mm Avoid running over.
0.5 to 1mm
Avoid coming over.
0 to 0.5 mm Avoid coming over.
0 to 0.5 mm
Attach it using the jig
Attach it using the jig
Attach it using the jig
Fold over the front and attach it.
Avoid running over other sheets.
Fold over the front and attach it.
Avoid coming over.
0 to 0.5 mm
Match to the circles.
0 to 0.5mm
Fit to the wall of the end side, and
put the surplus to the Cabinet side.
Ensure it does not come
over the end of the rib.
Ensure it does not come
over the end of the rib.
The paste should be
put the left side.
0.5 1.5mm
0 0.5mm
0 0.5mm
Order of fixing
Screw Screw Screw
Screw Screw Screw Screw
S2
S5
