9.2. Reassembly
Instructions
9.2.1. Attention when CF-19 series is repaired
ï Please execute writing BIOS ID when you exchange the Main Board.
ï Parts (Sheet and rubber) etc. related various the Conductive Cloth and Heat Spreader cannot be recycled. Use new parts.
9.2.2. Setting
up the Inverter Ass'y and LCD UNIT
1. Set the LCD UNIT to the LCD Front Cabinet/TS Panel.
2. Set the TS PCB on the LCD Back Damper, and connect
the 2 Cables to the Connectors (CN900 and CN901).
3. Set the Inverter PCB to the LCD Back Damper, and con-
nect the 2 Cables to the Connectors.

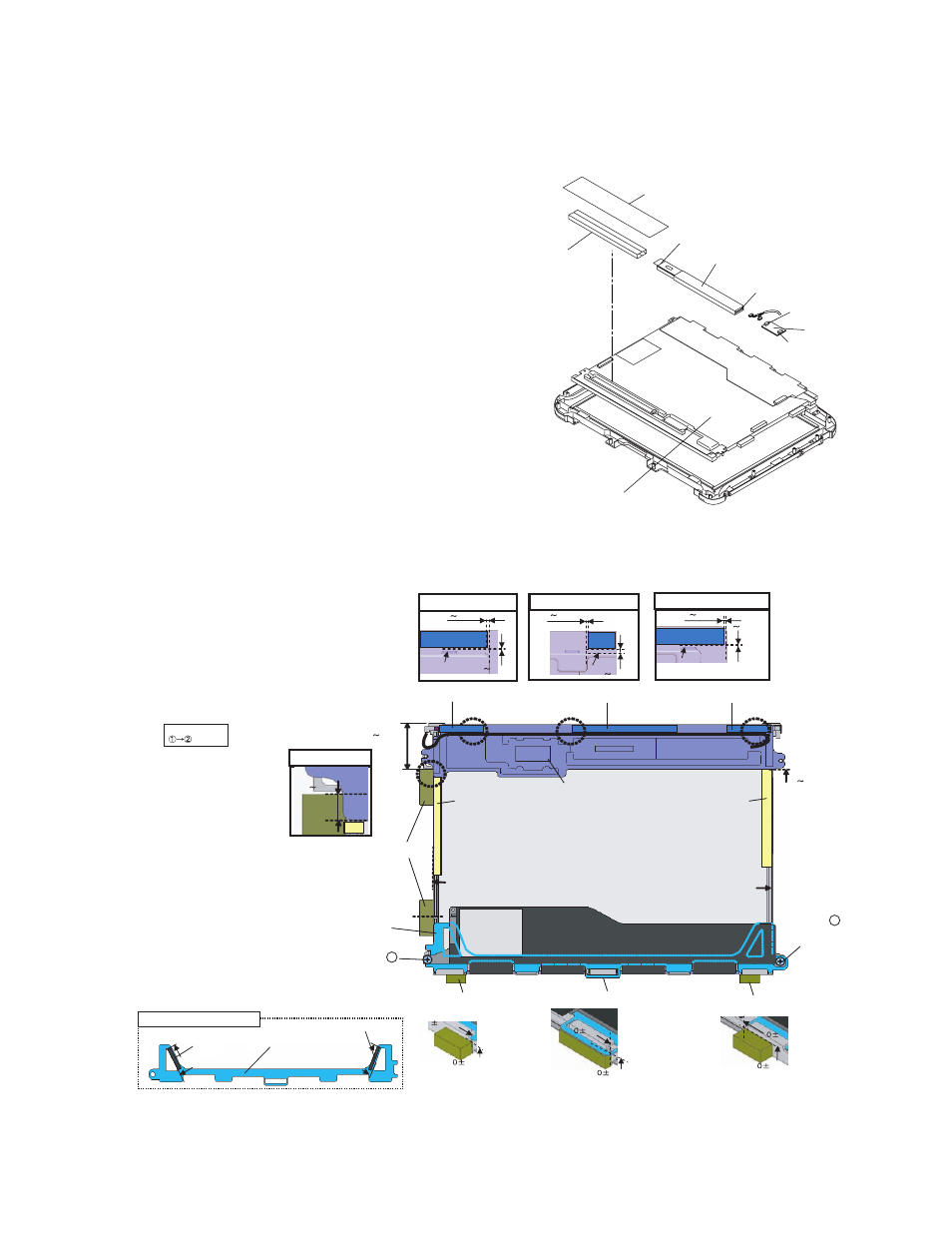

■ Assembly of LCD Back Damper (Applicable Model : Touch Screen Model)
Inverter Case
Tape
Inverter PCB
Connector
Connector
LCD Unit
TS PCB
Connector
(CN901)
Connector (CN900)
LCD PWB SPACER ASSY
Asymmetric Shape
Detail of "A"
0 1mm
0 0.5mm
0 1mm
1 1.5mm
0 1mm
0 0.5mm
Detail of "D"
Attach to the side surface if the Frame.
(Match to the end of the Frame within
0
to 0.5 mm at the far side.)
0.5mm
0 0.5mm
0.5mm
0.5mm
0.5mm
0.5mm
Note: Apply the load to attach. 20 to 30N (2.0 to 3.0 Kgf)
Order of fixing
Spacer Sheet
Spacer Sheet
LCD PCB Spacer
Detail of "B" Detail of "C"
Pass the Cable
under the protrusion.
Pass the Cable
under the protrusion.
Pass the Cable
through the space.
B
LCD Back Cushion S LCD Back Cushion L LCD Back Cushion S
C D
Remove the Release Paper on
the back side and attach it.
Lengthwise : Match to the LCD Frame.
Crosswise : Match to the middle line.
Holder Sheet
Holder Sheet
Match both Holder Sheet and LCD
Back Cushion S to the right edge
of the frame. (0 to 0.5 mm) Match both Holder Sheet and LCD
Back Cushion S to the right edge
of the frame. (0 to 0.5 mm)
LCD Side Cushion A
LCD PWB Spacer Ass'y
Insert this between LCD
PCB & LCD Frame.
Screw 1
Screw the board and
the Spacer together.
Screw 2
Screw the board and
the Spacer together.
LCD Side Cushion C LCD Side Cushion D
LCD Side Cushion C
A
33 35mm
2 4mm
0 0.5mm
