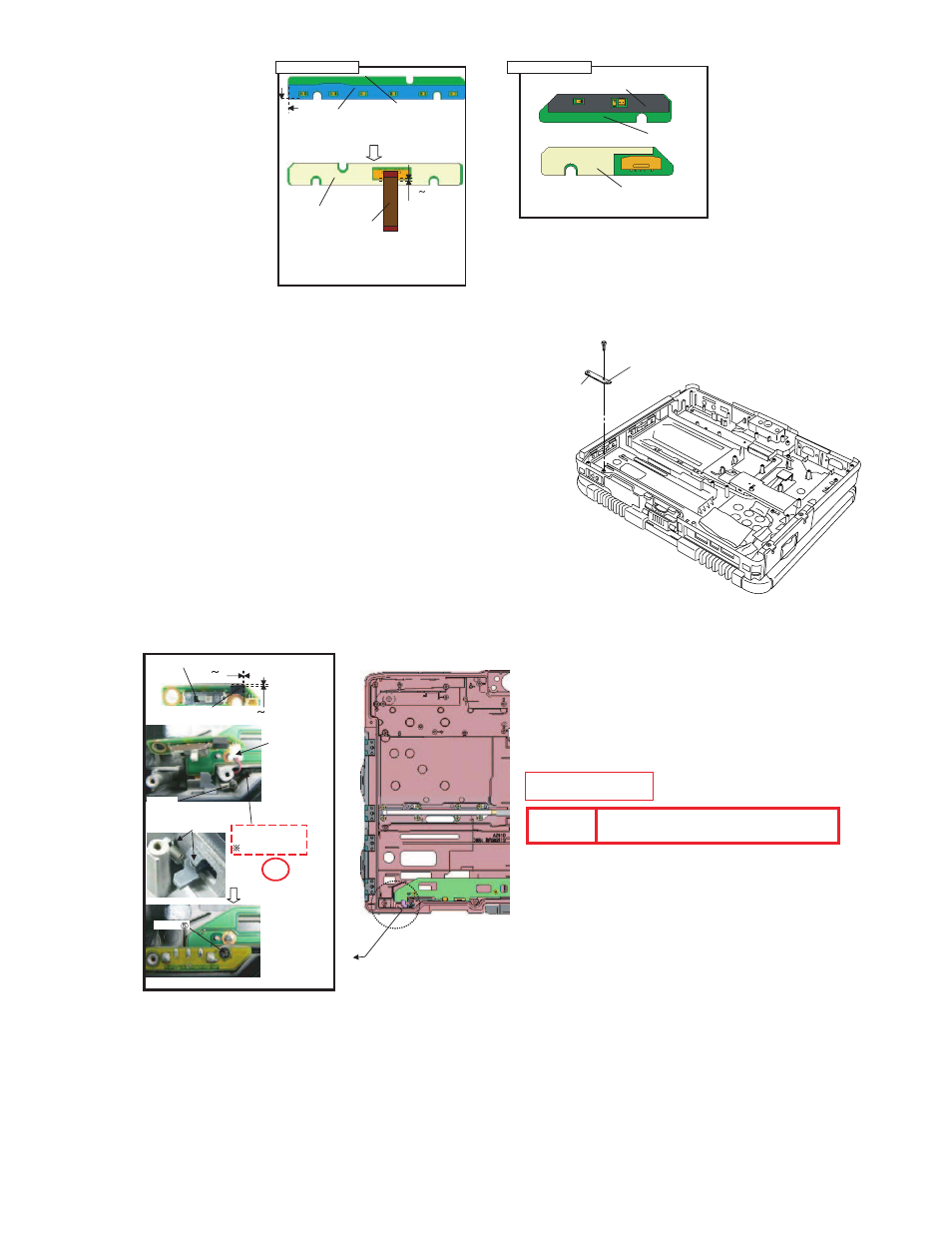

■ Assembly of the left LED PCB and right LED PCB
9.2.9.
Setting
the Power SW PCB
1. Connect
the Cable to the Connector. (CN9)
2. Fix
the Power SW PCB using the Screw.
Screws
■ Assembly of the Power SW PCB
LED(L)
PCB Ass'y
LED(R)
PCB Ass'y
0
3mm
Back
side
LED
Light Guide Sheet(L)
LED
PCB Tape(L)
LED
PCB(L)
LED(L)
FPC
LED
Light Guide Sheet(R)
LED
PCB(R)
LED
PWB Tape(R)
Match
the edge and attach it.
Match
the edge and attach it.
Match
the edge and attach it.
Avoid
running over the LED.
Match
the edge and attach it.
Ensure
it does not come over the end
of
the Board by 0.5 mm or more.
Avoid
coming over it.
Connector(CN9)
Power
SW
PCB
Power
SW PCB
Power
Spring Sheet
Spring
Screw
Attach
Insert
Insert
the Cushion
between
the ribs.
Avoid
coming over
Insert
it to Knob and
Pin
on the Top Case
Fold
the board back and fix with screw.
(Note)
Arrow without specified measurement: 0 to 0.5 mm
0
1mm
0
1mm
S1:Insulation
S2:Pinching Cables S3:Sharp Edge
S4:Part
No. Check S5:Others
Safety
Working
CAUTION
S2
