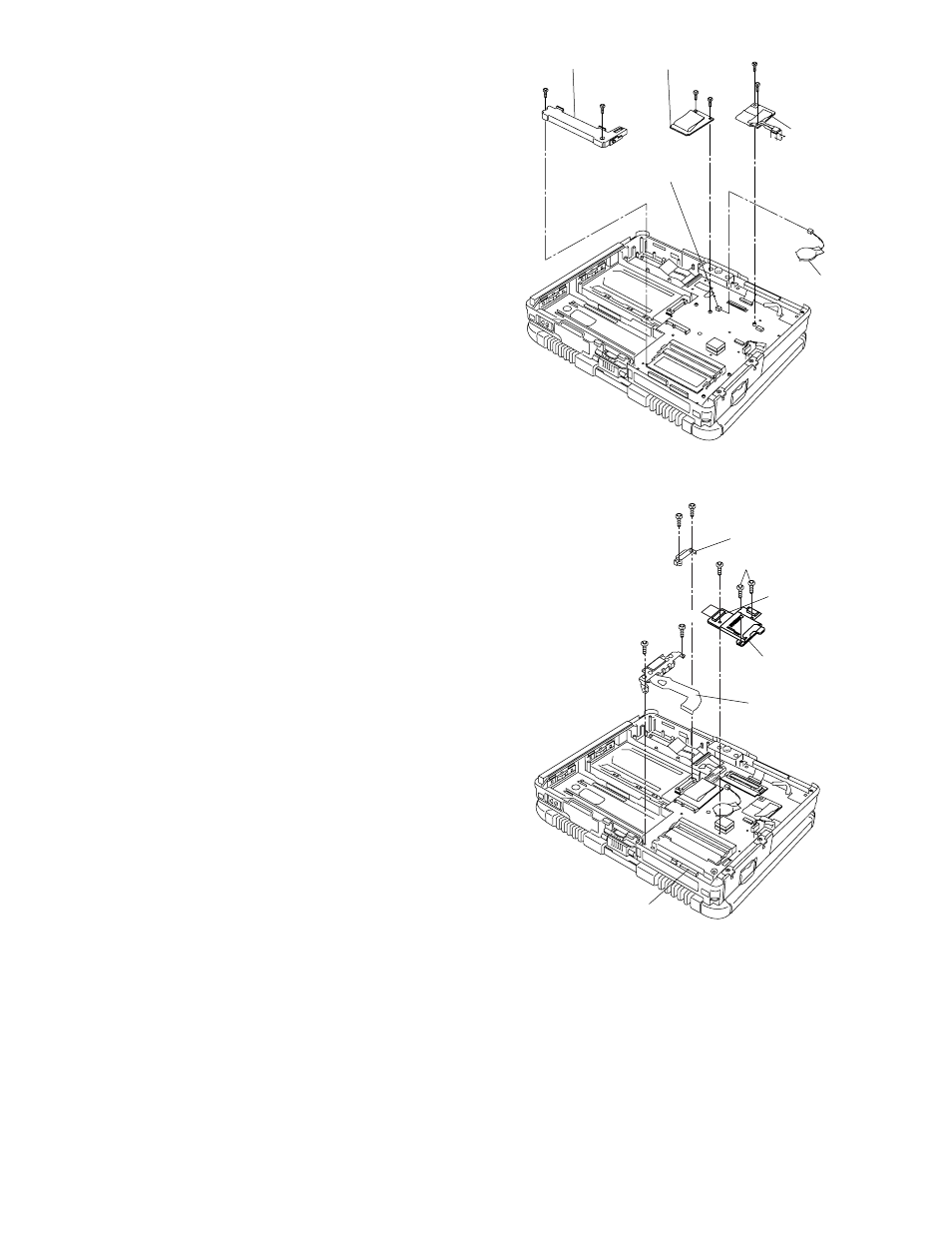

4. Fix

the Modem PCB using the 2 Screws .

5. Fix

the Wireless Module using the 2 Screws .

6. Fix

the DIMM Holder using the 2 Screws .

7. Attach

the Cable to the Connector (CN3) and attach the

Coin

Battery.

8. Fix

the SD PCB Ass'y using the 3 Screws .

9. Attach

the Cable to the Connector (CN21).

10. Hook

the Flex Cable on the DIMM Holder, and turn 90

degrees.

11. Fix

the BAT FPC Ass'y using the 2 Screws .

12. Connect

the cable to the Connector. (CN15)

13. Fix

the HDD Connector Guide using the 2 Screws .

Connector(CN3)

DIMM

Holder Wireless Module

Modem

PCB

Coin

Battery

HDD
Connector

Guide

SD

PCB Ass'y

Connector
(CN882)

BAT

FPC Ass'y

Connector(CN15)
