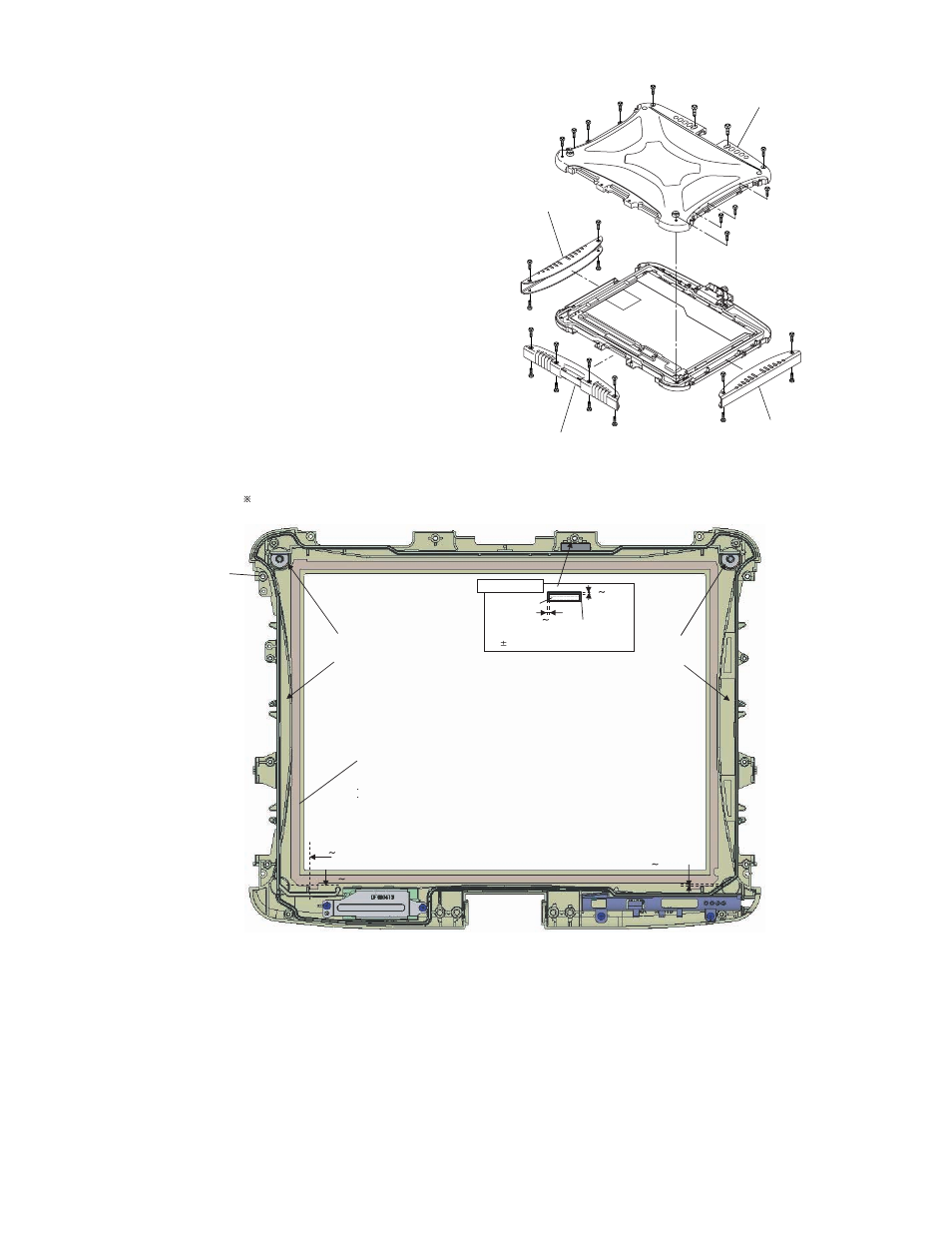

9.2.5.
Assembling
the Antenna Cover, the Tablet Latch Cover and the LCD Rear Case
1. Fix
the LCD Rear Case using the 10 Screws
the
2 Screws.
2. Attach
the Antenna Covers and the Tablet Latch Cover to
the
Display Unit.
3. Tighten
the 8 Screws
Unit.
4. Turn
the Display Unit over, and tighten the 8 Screws.
Screws
Screws
Screws
■ Assembly of LCD Front Case
Antenna
Cover
Tablet
Latch Cover
LCD
Rear Case
Antenna
Cover
Magnet
Magnet
Tape
LCD
Front Assy
Tape
Magnet
Ass'y
0
1mm
0
0.5mm
0
0.5mm
0
0.5mm
0
0.5mm
Insert
it between the ribs, and attach it.
1mm
(Both on the top and the side)
Avoid
running over
Avoid
running over
Fit
to the rib
Attach
here Position of pasting D.
Attach
and apply the load 30 to 40N (3.0 to 4.0 Kgf).
Avoid
running over the display part.
Note
for attachment
Do
not use if the protrusion such as painting lump exists around D5.
(Due
to affect the Touch Screen operations.)
