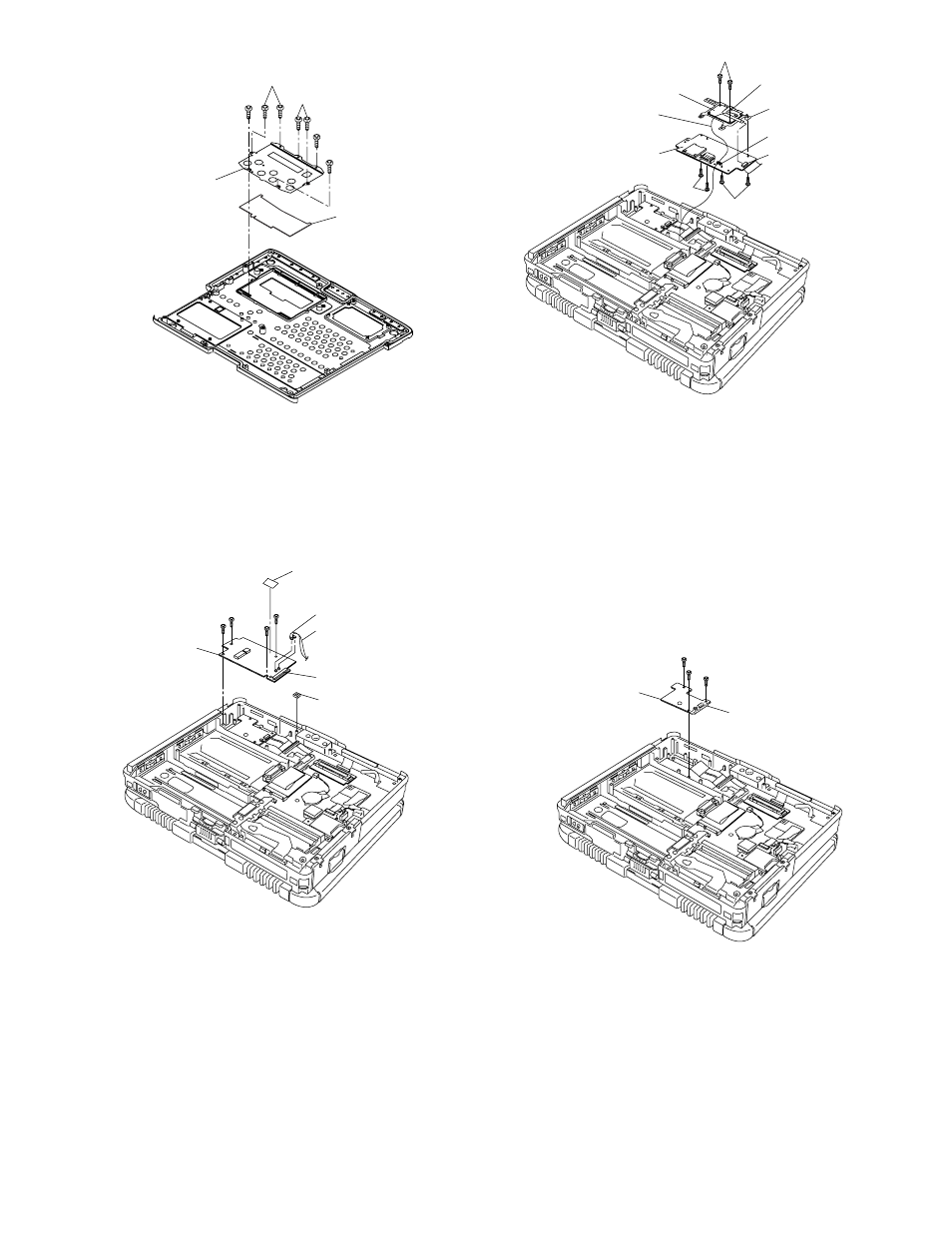

9.1.6. Removing the DU Lid Unit
1. Remove the 7 Screws .
2. Remove the DU Lid Angle and DU Lid.
Screws : DXQT2+D25FNL
9.1.7. Removing the HSDPA PCB and
Bluetooth
PCB
1. Remove the Cable Holder Cushion.
2. Disconnect the 2 Antenna Cables (brown, black).
3. Remove the Tape.
4. Remove the 4 Screws.
5. Disconnect the Cable from the Connector (CN600).
6. Disconnect the Antenna Cable from the Clamper.
7. Disconnect the Antenna Cable.
8. Remove the 4 Screws.
9. Disconnect the Cable from the Connector (CN604).
10. Remove the 2 Screws.
11. Disconnect the Cable from the Connector (CN1) and
remove the Bluetooth PCB and HSDPA PCB.
Screws : DRSB2+5FKL
Screws : XSB2+3FNL
9.1.8. Removing the Audio PCB
1. Remove the 3 Screws .
2. Disconnect the Cable from a Connector (CN901).
3. Remove the Audio PCB.
Screws :DRSB2+5FKL
DIMM Lid Angle
DU Lid
Antenna Cable(brown)
Antenna Cable(black)
HSDPA PCB
Tape
Cable Holder Cushion
Connector(CN600)
Antenna Cable(blue)
Bluetooth PCB
Plate
Connector(CN1)
Clamper
Connector(CN604)
HSDPA PCB
Audio PCB
Connector(CN901)
