9.1.19.
Removing
the Each Cover
1. Remove
the 14 Screws
2. Remove
the Modem/LAN LID Rubber, LAN LID Rubber,
USB
LID
Rubber, DC IN LID Rubber, Serial LID Rubber, RGB
LID
Rubber, Audio LID Rubber and USB Back Rubber.
3. Remove
the Rear Cabinet.
(Refer to 7.1.5 Removing the Rear Cabinet)
4. Remove
the 6 Screws
5. Remove
the Battery LID ASS'Y, HDD LID Ass'y and
PCMCIA
LID Ass'y.

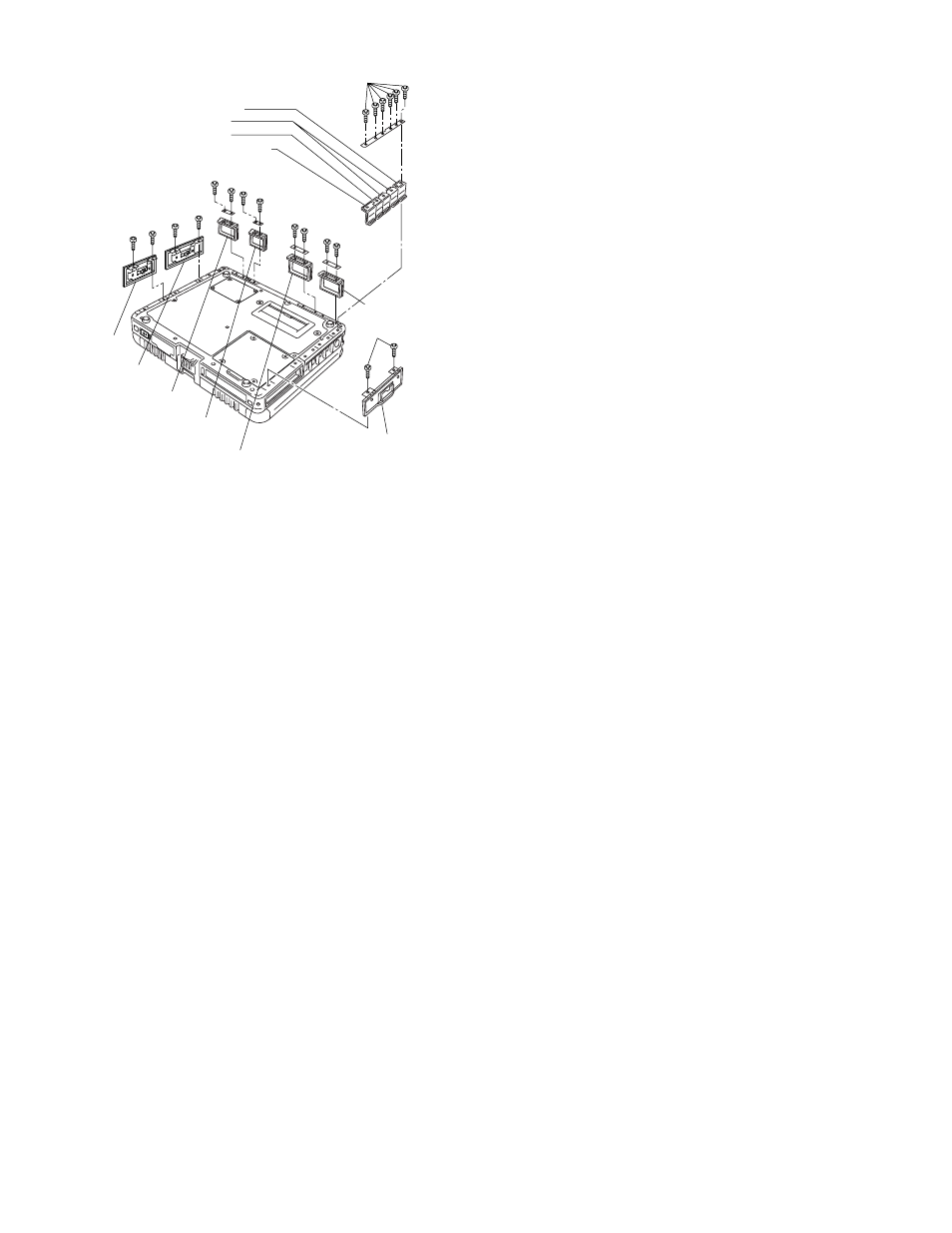

Screws
Screws
PCMCIA
LID ASS'Y
DC
IN LID Rubber
USB
LID Rubber
LAN
LID Rubber
Moden/LAN
LID Rubber
Audio
LID
Rubber
USB
Back
Rubber
HDD
LID ASS'Y
Battery
LID
ASS'Y
RGB
LID
Rubber
Serial
LID
Rubber
