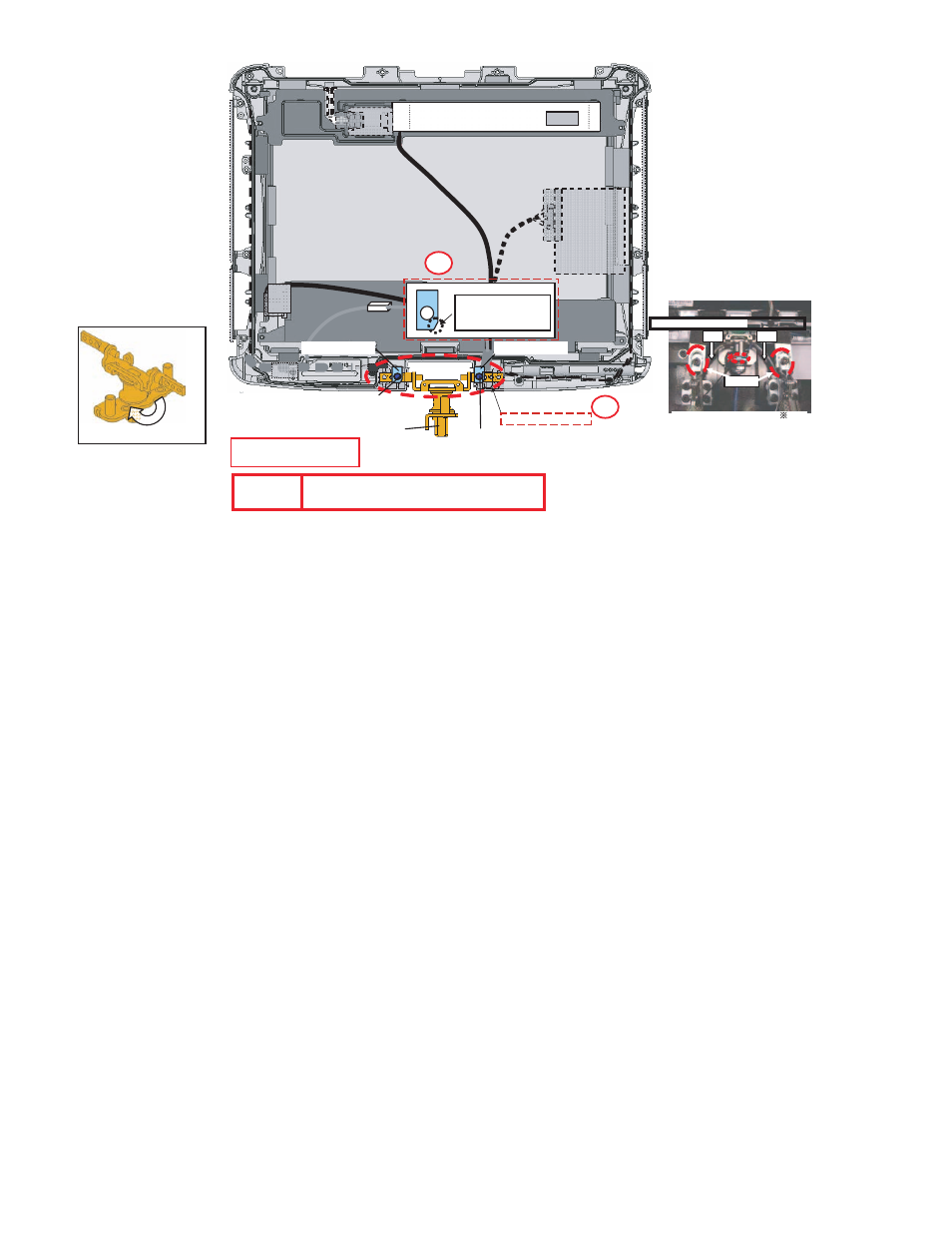

■ Assembly of LCD Hinge
If you arrange the Cable in the area,
you do not need to use the fixing jig.
Initial Condition
of LCD Hinge
Rotation Direction
Tighten
Fix Fix
Using the fixing jig when fixing the Hinge
Cable Hold Plate Cable Hold Plate
Screw Avoid catching the Cable (when repairing or when not using the jig).
Temporarily fix the both sides ("A") of the Hinge using the Screw, and fix the Cable Hold Plate.
After fixing the Cable Hold Plate, remove the screws from the both sides ("A").
LCD Hinge
Screw
Ensure the "C" side comes
to the lower right corner
when viewing from above.
Avoid catching the Cable.
S1:Insulation S2:Pinching Cables S3:Sharp Edge
S4:Part No. Check S5:Others
Safety Working
S2
CAUTION
S3
