■ Line Processing of Antenna Cable of Main Unit

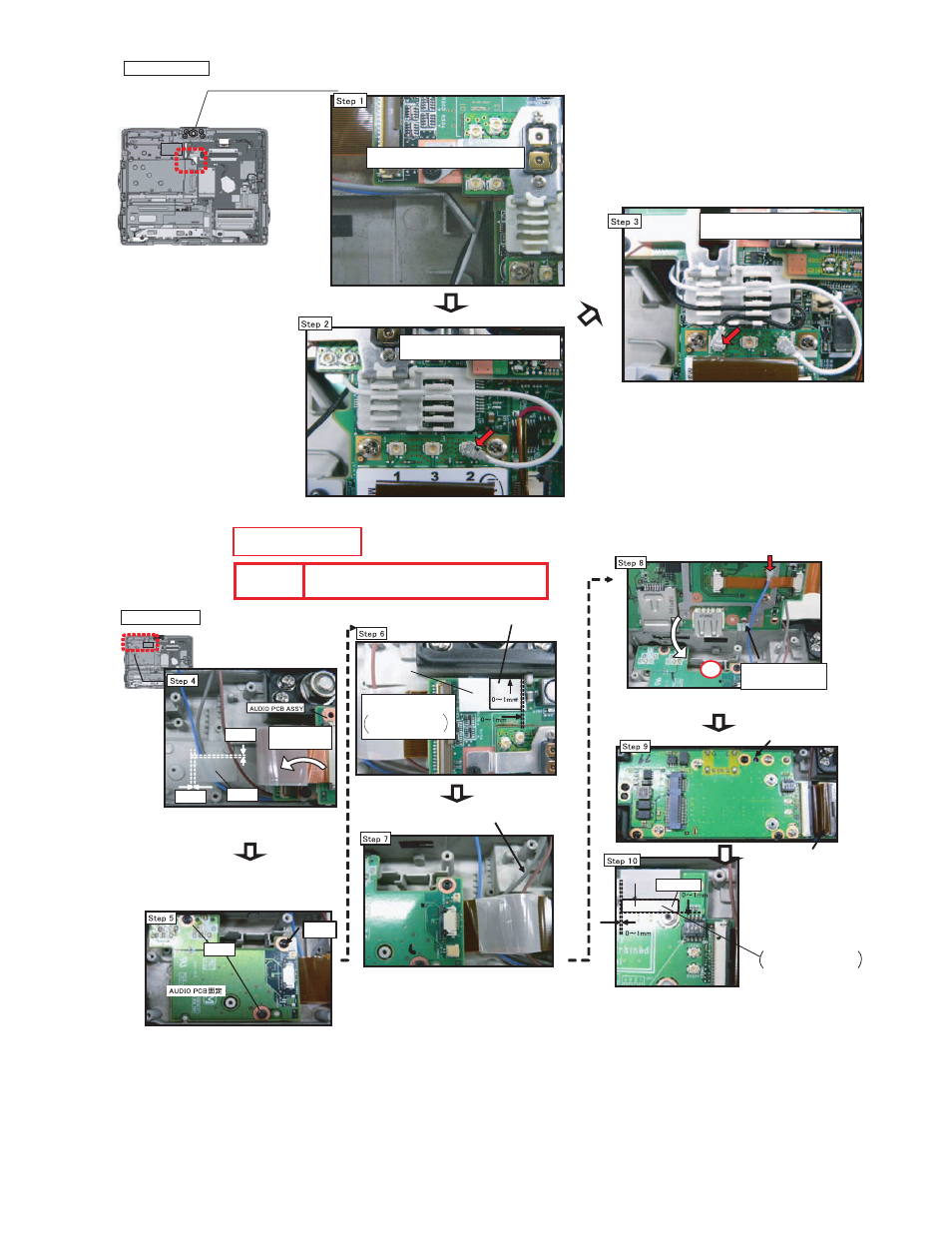

Cable Process 1/3
Place brown/blue/gray cables at left and
white/black cables downward.
After connecting the white antenna cable,
connect it into the Holder as illustrated.
After connecting the black antenna cable,
connect it into the Holder as illustrated.
Cable Process 2/3
After processing the cables, inserting the FPC and locking,
incline the Audio PCB into the arrow direction.
Connect the blue antenna cable.
Check the blue cable from the hole.
Connect the FPC
Remove the Release Paper
and attach it.
To prevent from the cable
damage by screw bead.
S2
TAPE 2-5mm
0-2mm Insert the FPC,
Lock Check
After confirming the cable is not under the AUDIO PCB
(processed at the Step 4), tighten the Screws.
Because there is a possibility that the cable is scissored
between PCB and the both.
Screw
Screw
Attach side
SHEET
Remove the release paper
and attach it.
To prevent from the cable
damaged by screw head.
Process the grey cable to the
same direction with the brown cable
Insert it into the right
notch of the Clamper.
If the fixing is not incorrected, there is possibility
that the cable is scissored between the PCB and the both.
Attach side
SHEET
S1:Insulation S2:Pinching Cables S3:Sharp Edge
S4:Part No. Check S5:Others
Safety Working
CAUTION
