Matsushita CF-19FHGAX - Manual (Page 48)

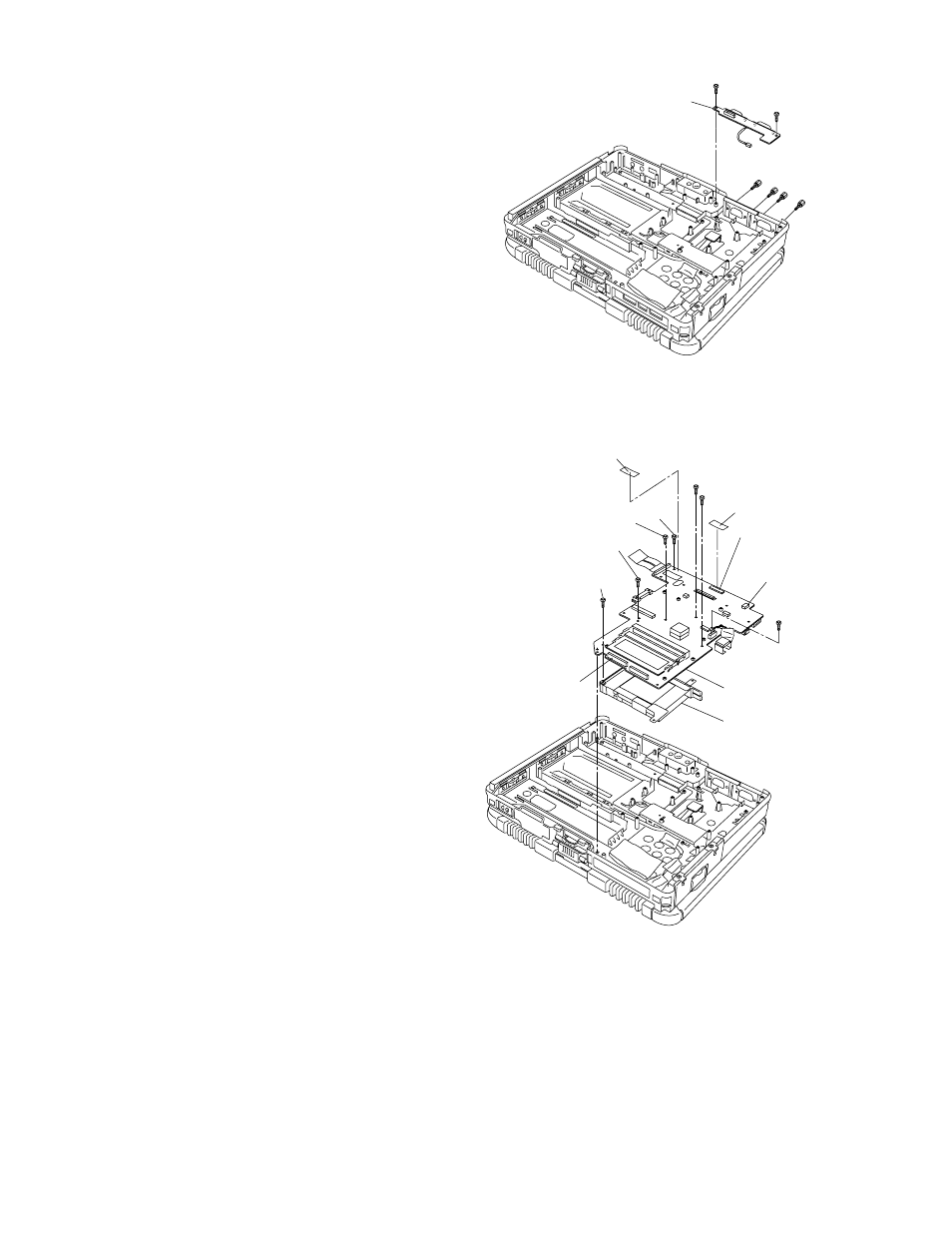

9.2.10. Setting the I/O PCB Ass'y
1. Fix the I/O PCB using the 2 Screws.
2. Fix the I/O PCB using the 4 Screws.
Screws : DFHE5058ZB
Screws : DRSB2+5FKL
9.2.11. Setting
the Main PCB, Wireless Module, SD PCB, DU PCB, Antenna PCB and
Modem PCB
1. Fix the Main PCB using the 7 Screws .
2. Connect the 3 Cables to the 3 Connectors.
(CN9,CN14,CN23)
3. Attach the Tape.
I/O PCB Ass'y
:No1
Tape :No4
:No5
:No6
:No2
:No7
Main PCB
Combo Socket
Connector(CN9)
Connector(CN14)
Connector(CN23)
Tape
