13. OPTIONS AND AUXILIARY EQUIPMENT

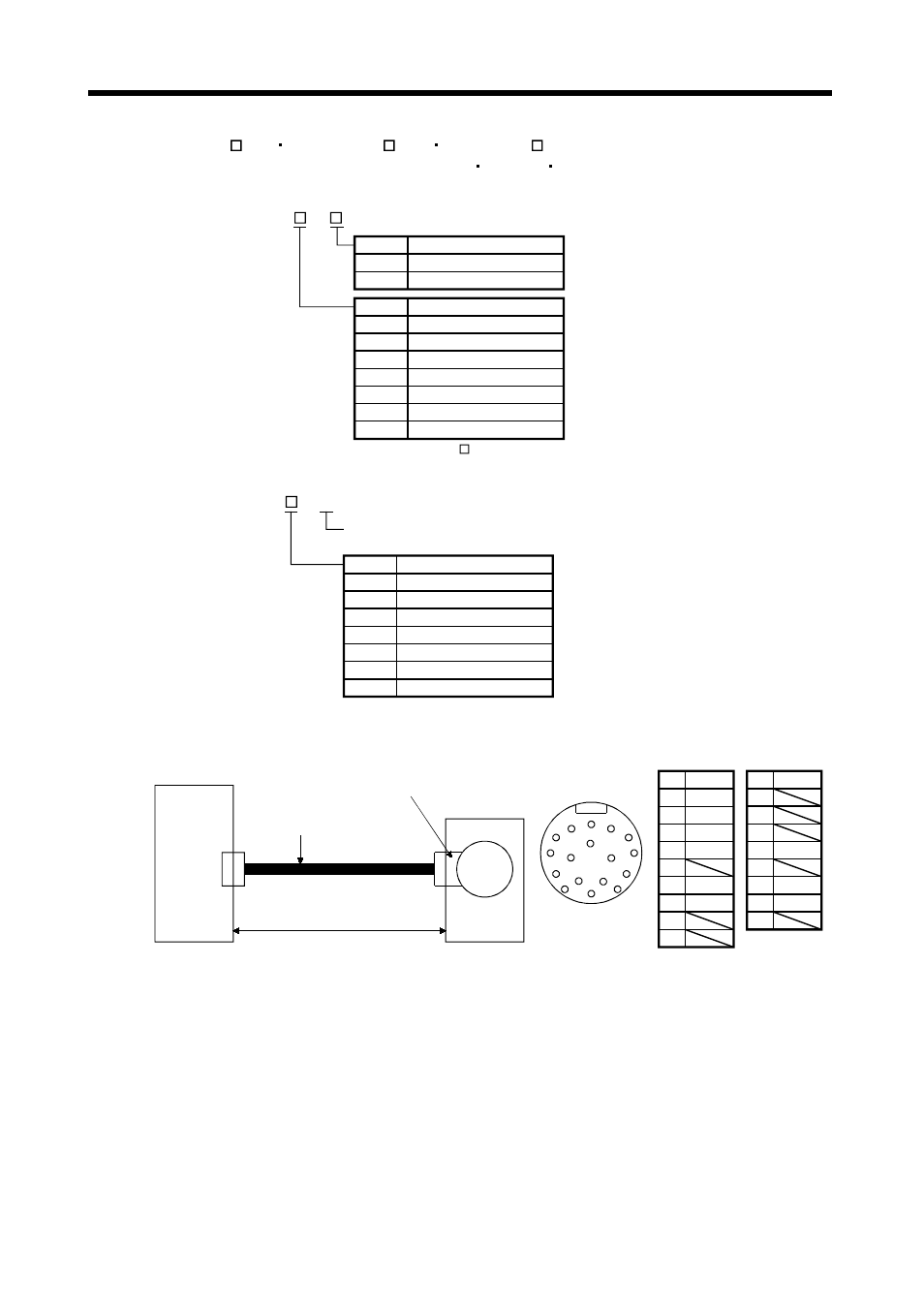

(b) MR-JHSCBL M-L MR-JHSCBL M-H MR-ENCBL M-H
These encoder cables are used with the HC-SFS HC-RFS HC-UFS2000r/min series servo motors.
1) Model explanation
Long flexing life H
Symbol Specifications
L Standard flexing life
Symbol (Note) Cable length [m(ft)]
2 2 (6.56)
5 5 (16.4)
10 10 (32.8)
20 20 (65.6)
30 30 (98.4)
40 40 (131.2)
50 50 (164.0)
Note. MR-JHSCBL M-L has no 40m(131.2ft)
and 50m(164.0ft) sizes.
Model: MR-JHSCBL M-
Symbol Cable length [m(ft)]
2 2 (6.56)
5 5 (16.4)
10 10 (32.8)
20 20 (65.6)
30 30 (98.4)
40 40 (131.2)
50 50 (164.0)
Model: MR-ENCBL M-H
Long flexing life
2) Connection diagram
For the pin assignment on the servo amplifier side, refer to section 3.3.1.
CN2
A B
C
D
E
F G H
J
K
L
M
Servo amplifier
50m(164.0ft) max.
Encoder connector
Servo motor
Encoder
Encoder connector
Encoder cable
(Optional or fabricated)
R S
T P
N
Pin Signal
A MD
B MDR
C MR
D MRR
E
F
BAT
G LG
H
J
Pin Signal
K
SHD
L
M
N
P
R
S
T
LG
P5
