Chapter 6 - Configuration Examples
95
6.2.1 Setting Up the Mounds View Operation With IP Protocol
In this example, the Mounds View LAN is going to be configured with an Ethernet port IP address of 205.1.6.1.
The WAN port will have an IP address of 205.1.7.1. The WAN port will be set for Answering mode in a dial-up
configuration. The WAN device will be an external ISDN terminal adapter set up in either a Dial 115.2K Async
mode of operation or a leased line synchronous mode of operation.

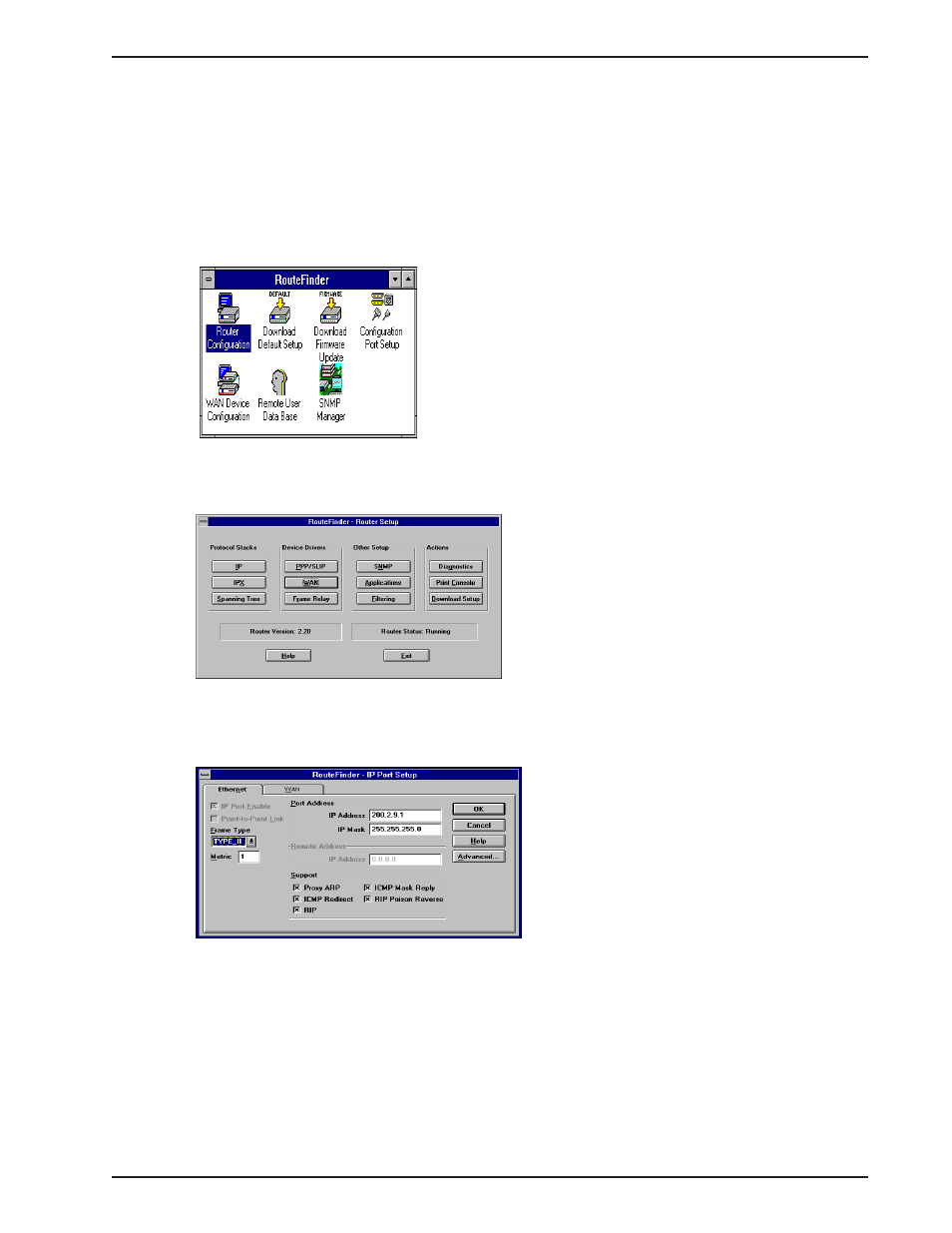

1. From the console PC, load Windows® and at the RouteFinder 100 Program Group, double click on the
Router Configuration icon.
2. When the Router Setup dialog box is displayed, click on the IP button.
3. The IP Port Setup dialog box is displayed with the Ethernet tab highlighted and the default Ethernet Port
IP Address displayed.
4. Change the default Port Address IP Address to 205.1.6.1. To change the default IP Address, click on the
Port Address IP Address text box and hit the backspace key. Enter 205.1.6.1.
5. Click on the Advanced button and ensure that the IP Routing is enabled in the IP General Setup dialog
box.
